Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7107J91ZGE22SWITCH ROCKER SPDT 5A 120V |
42 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
R723FB1-SXXXNB2NNXSWITCH ROCKER DPDT 20A 125V |
73 |
|
Технический лист |
R7 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 125 V | - | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|

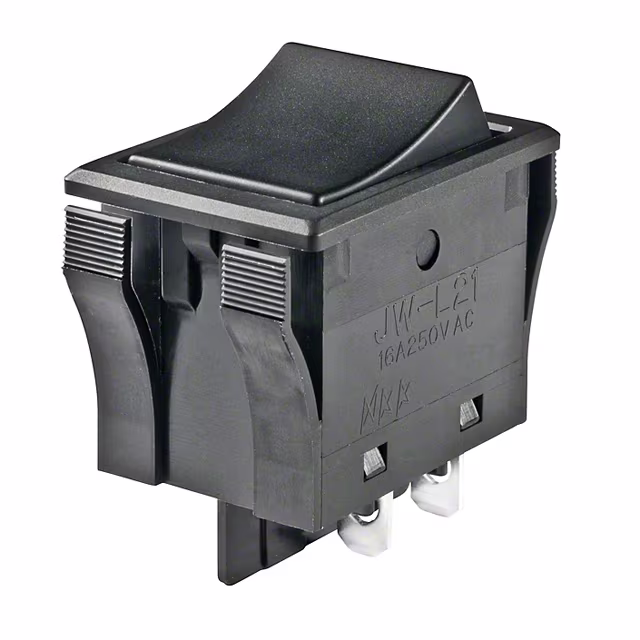

JWL21RAASWITCH ROCKER DPST 16A 125V |
45 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|

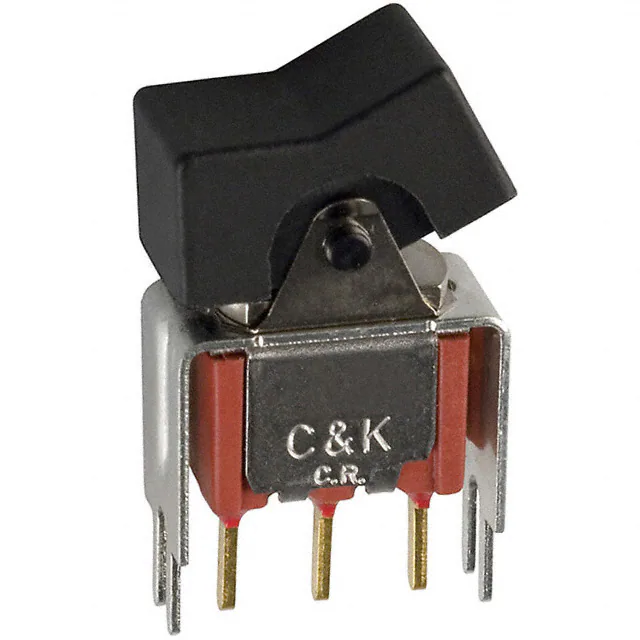

7108J1V3BE2SWITCH ROCKER SPDT 0.4VA 20V |
82 |
|
Технический лист |
7000 | Tray | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

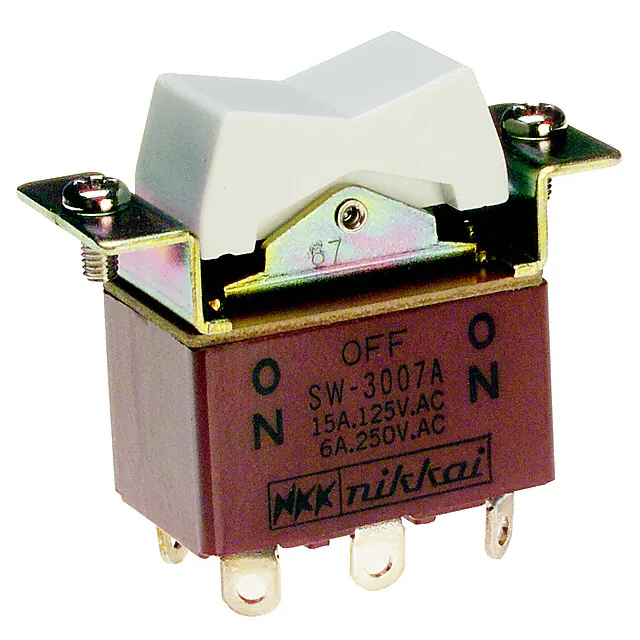

SW3007ASWITCH ROCKER DPDT 15A 125V |
8 |
|
Технический лист |
SW | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 15A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | Dust Proof | - | - | -10°C ~ 70°C | CSA, UL |
|
|
7101J1V3BE2SWITCH ROCKER SPDT 0.4VA 20V |
61 |
|
Технический лист |
7000 | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

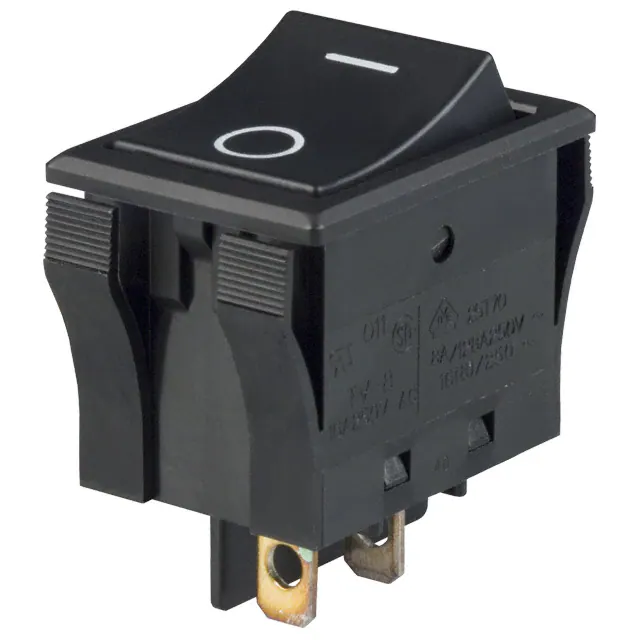

JWL11RA1ASWITCH ROCKER SPST 16A 125V |
57 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWM21RA1ASWITCH ROCKER DPST 10A 125V |
27 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWL11RA1A/UCVSWITCH ROCKER SPST 16A 125V |
1 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWM21BAA-HSWITCH ROCKER DPST 10A 125V |
21 |
|
Технический лист |
JW | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWM22RCASWITCH ROCKER DPDT 10A 125V |
52 |
|
Технический лист |
JW | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWM22RAA/UCVSWITCH ROCKER DPDT 10A 250V |
36 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWM11RA2A/UCV-WLSWITCH ROCKER SPST 10A 125V |
10 |
|
Технический лист |
JW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Wire Leads | Dust Proof | - | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|

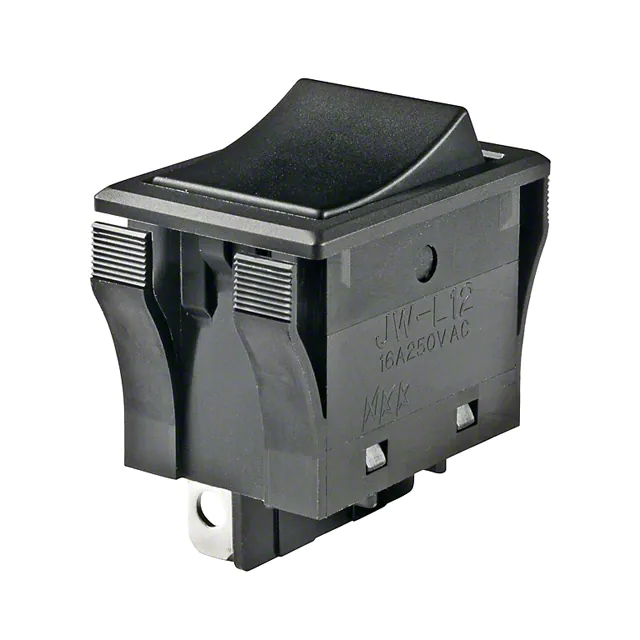

JWL12RAASWITCH ROCKER SPDT 16A 125V |
10 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|

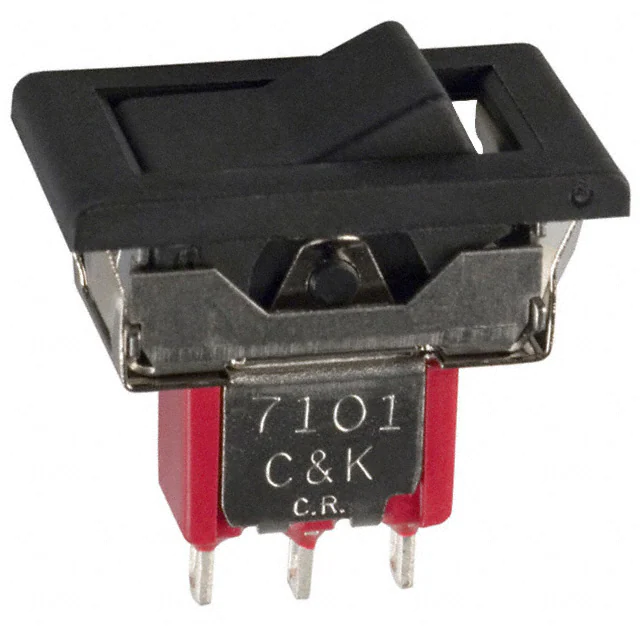

7101J16ZQE22SWITCH ROCKER SPDT 5A 120V |
7 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
E101J1V3BE2SWITCH ROCKER SPDT 0.4VA 20V |
66 |
|
Технический лист |
E | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
7201J1ZQE2SWITCH ROCKER DPDT 5A 120V |
99 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
L12D1S001-AZZ00-000SWITCH ROCKER SPST-NO 20A 12V |
9 |
|
Технический лист |
L | Box | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (DC) | - | 12 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
2649LH/2A212000L0SWITCH ROCKER DPDT 10A 125V |
62 |
|
Технический лист |
2600 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC), 8A (DC) | 125 V | 24 V | Flat | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C | CSA, NF, UL, VDE |
|
JWM21BA2A-ASWITCH ROCKER DPST 10A 125V |
51 |
|
Технический лист |
JW | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
