Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DM14J72S205Q3SWITCH ROCKER SPST 3A 125V |
250 |
|
Технический лист |
DM | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 3A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Positive Detent | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|
DM24J72S205Q3SWITCH ROCKER DPST 3A 125V |
184 |
|
Технический лист |
DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 3A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Positive Detent | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|

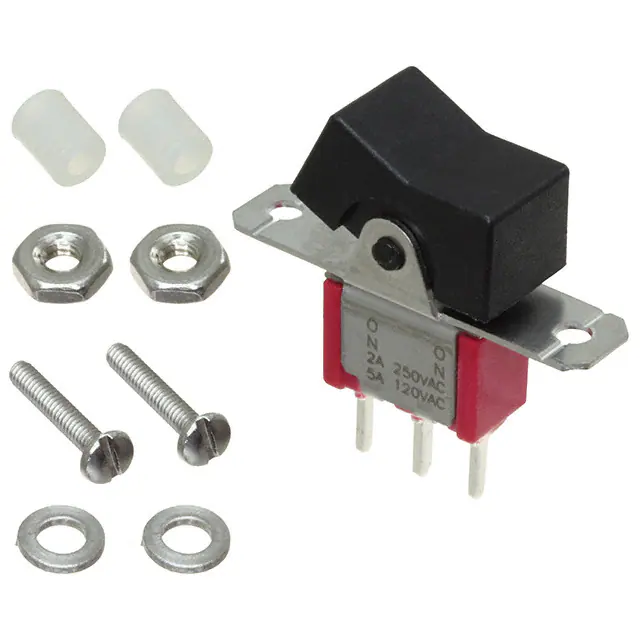

7101J1CQE2SWITCH ROCKER SPDT 5A 120V |
193 |
|
Технический лист |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
D608J12S205QASWITCH ROCKER DPDT 10A 125V |
101 |
|
Технический лист |
D | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
T101J6V3BE9SWITCH ROCKER SPDT 0.4VA 20V |
304 |
|
Технический лист |
T | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Gray | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | UL |
|
7201J3ZQE2SWITCH ROCKER DPDT 5A 120V |
305 |
|
Технический лист |
7000 | Tray | Active | Panel Mount, Flange | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|

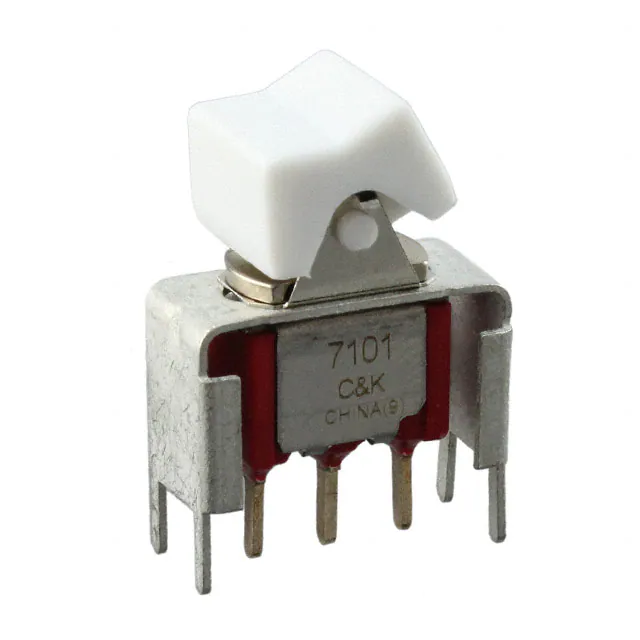

7101J50V6QE1SWITCH ROCKER SPDT 5A 120V |
164 |
|
Технический лист |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
U21J1AV2QE2SWITCH ROCKER DPDT 5A 120V |
390 |
|
Технический лист |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

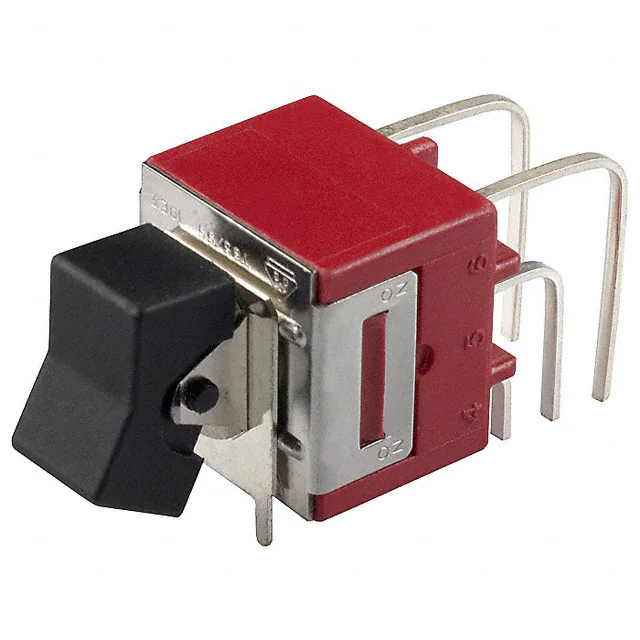

9201J1AV2QE2SWITCH ROCKER DPDT 6A 125V |
153 |
|
Технический лист |
9000 | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC/DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

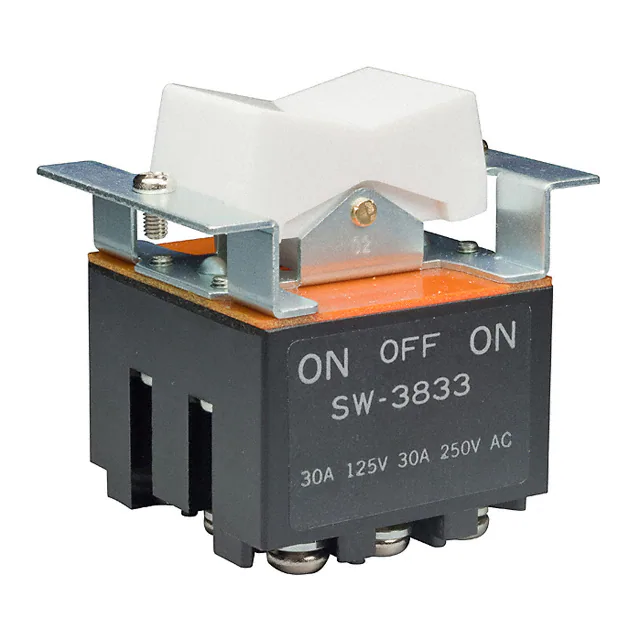

SW3833/USWITCH ROCKER 3PDT 30A 125V |
2 |
|
Технический лист |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|

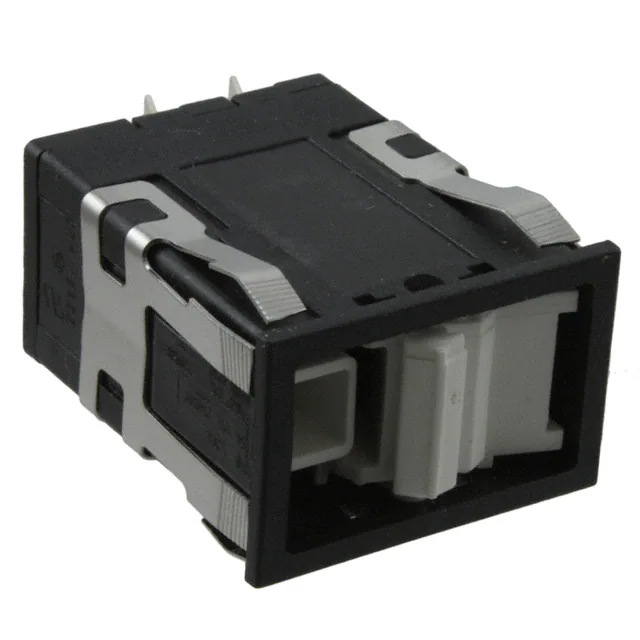

AML36FBB7AC01SWITCH ROCKER DPST 15A 125V |
60 |
|
Технический лист |
AML36 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Neon, Red | 125 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CE, CSA, UL, VDE |
|
RA1553112Z70SWITCH ROCKER SPDT 10A 125V |
2,487 |
|
Технический лист |
RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | 3 2 1, Vertical | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA1111DBCSWITCH ROCKER SPST 15A 240VAC |
179 |
|
Технический лист |
RA | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | White | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
RA1122KWCSWITCH ROCKER SPST 15A 240VAC |
196 |
|
Технический лист |
RA | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Horizontal | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
RL1122DRCSWITCH ROCKER SPST 12A 125V |
202 |
|
Технический лист |
RL | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 12A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus, UL |
|
|
RL1122ERCSWITCH ROCKER SPST 12A 125V |
200 |
|
Технический лист |
RL | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 12A (AC) | 125 V | - | Concave (Curved) | Black | - = | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus, UL |
|
|
RL1122EWCSWITCH ROCKER SPST 12A 125V |
199 |
|
Технический лист |
RL | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 12A (AC) | 125 V | - | Concave (Curved) | Black | - = | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus, UL |
|
|
RL1122BRCSWITCH ROCKER SPST 12A 125V |
199 |
|
Технический лист |
RL | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 12A (AC) | 125 V | - | Concave (Curved) | Black | O | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus, UL |
|
|
RL1122NWCSWITCH ROCKER SPST 12A 125V |
197 |
|
Технический лист |
RL | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 12A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus, UL |
|
|
RL1122BWCSWITCH ROCKER SPST 12A 125V |
190 |
|
Технический лист |
RL | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 12A (AC) | 125 V | - | Concave (Curved) | Black | O | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus, UL |
