Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V151S00C-AZC13-000SWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Convex (Reverse V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1B2S00C-AZC13-000SWITCH ROCKER SPST 15A 24V |
0 |
|
Технический лист |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Convex (Reverse V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1S00C-AZC13-000SWITCH ROCKER SPST 20A 12V |
0 |
|
Технический лист |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V152S00C-4ZZ13-000SWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V1D1S00C-AZC11-000SWITCH ROCKER SPST 20A 12V |
0 |
|
Технический лист |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
TIGA51-6S-RD-MBLSWITCH ROCKER SPST 15A 125V |
0 |
|
- |
TIG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.83mm x 21.08mm | - | CSA, UL, VDE |
|
|
WRTP22A9M9-ESWITCH ROCKER DPDT 20A 125V |
0 |
|
Технический лист |
WRTP | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.94mm x 22.35mm | - | CSA, UL, VDE |
|
|
TIGC6M-6S-BL-NBLSWITCH ROCKER SPDT 6A 125V |
0 |
|
- |
TIG | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 6A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.83mm x 21.08mm | - | CSA, UL, VDE |
|
|
B121J1V3B2SWITCH ROCKER SPDT 0.5VA 28V |
0 |
|
Технический лист |
B | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.5VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|
|
B123J1CQ2SWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
B | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | CSA, UL |
|
|
B123J60ZQ22PSWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
B | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | CSA, UL |
|
|
B123J71V8Q2SWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
B | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
B127J2ZQ2SWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
B | Bulk | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | CSA, UL |
|
|
V1D1BC0B-ARCPM-100SWITCH ROCKER SPST 20A 12V |
0 |
|
Технический лист |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | Master Light - High Beam, Vertical | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|

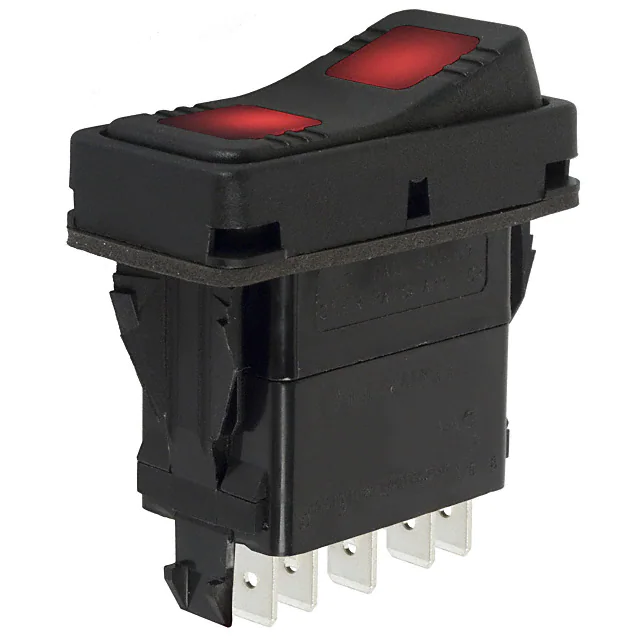

SRL91-23URR3-BB99SWITCH ROCKER DPDT 15A 125V |
0 |
|
Технический лист |
SRL | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|

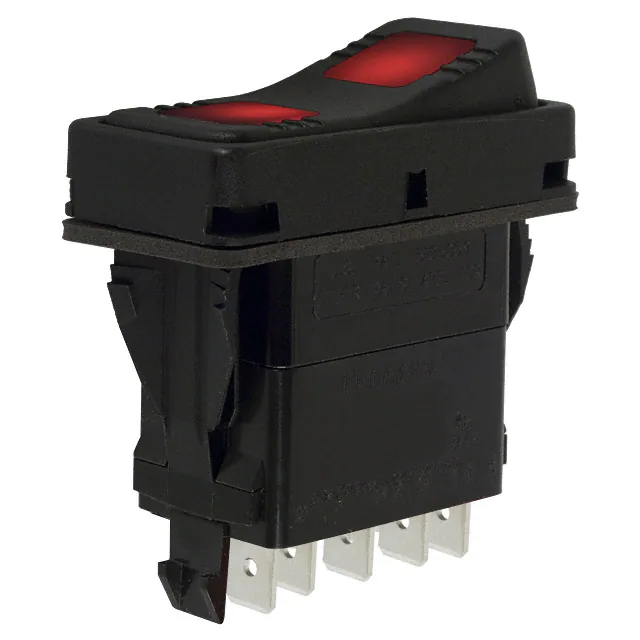

SRL91-21URR3-BB99SWITCH ROCKER DPDT 15A 125V |
0 |
|
Технический лист |
SRL | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|
|
TIGB721-6S-BL-NBLSWITCH ROCKER |
0 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V6B1S00B-AZC8S-100SWITCH ROCKER SPDT 15A 24V |
0 |
|
Технический лист |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (DC) | - | 24 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V6D2S00B-AZCAF-100SWITCH ROCKER SPDT 20A 12V |
0 |
|
Технический лист |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
V6D2S00B-AZC43-100SWITCH ROCKER SPDT 20A 12V |
0 |
|
Технический лист |
Contura® V | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (DC) | - | 12 V | Convex (Reverse V) | Black | Master Light - High Beam, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | CSA, UL, VDE |
