Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JWMW11RA2A/UCSWITCH ROCKER SPST 10A 125V |
126 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|

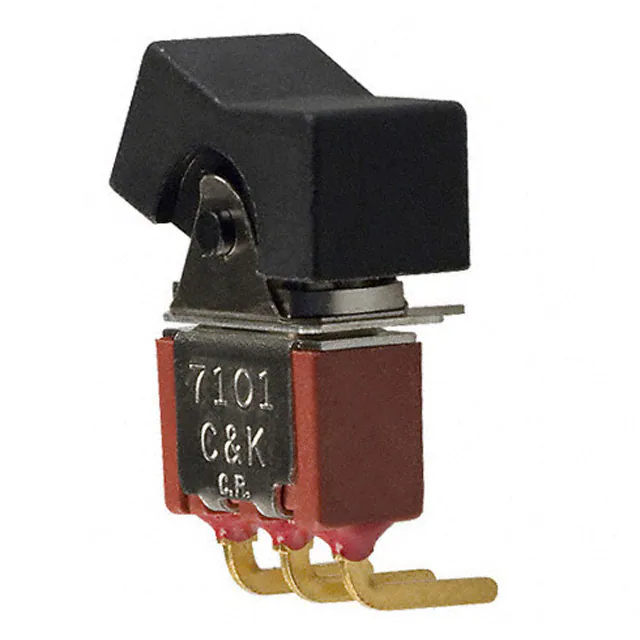

7101J1ABE2SWITCH ROCKER SPDT 0.4VA 20V |
172 |
|
Технический лист |
7000 | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
H8670VBBBSWITCH ROCKER DPDT 15A 277V |
562 |
|
Технический лист |
8600 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 15A (AC) | 277 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 21.90mm x 19.30mm | - | CSA, UL |
|
58027-01SWITCH ROCKER SPST 15A 24V |
127 |
|
Технический лист |
58027 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.83mm x 21.08mm | - | - |
|

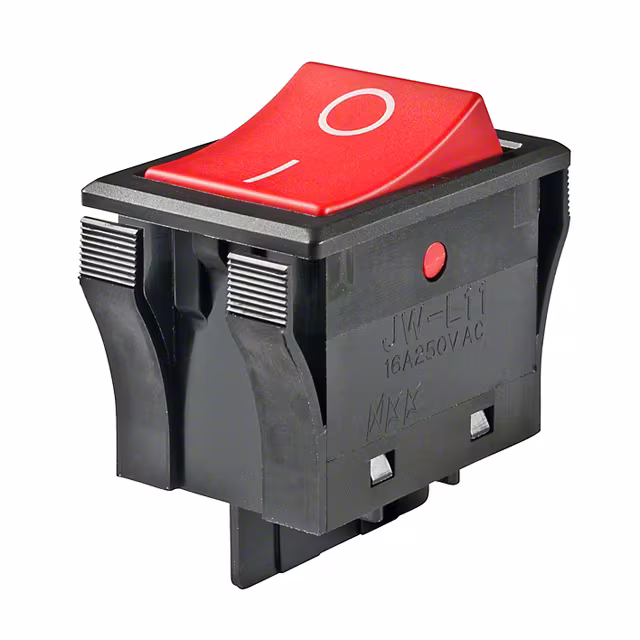

JWL11RC2ASWITCH ROCKER SPST 16A 125V |
152 |
|
Технический лист |
JW | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
7107J51ZQE22SWITCH ROCKER SPDT 5A 120V |
105 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

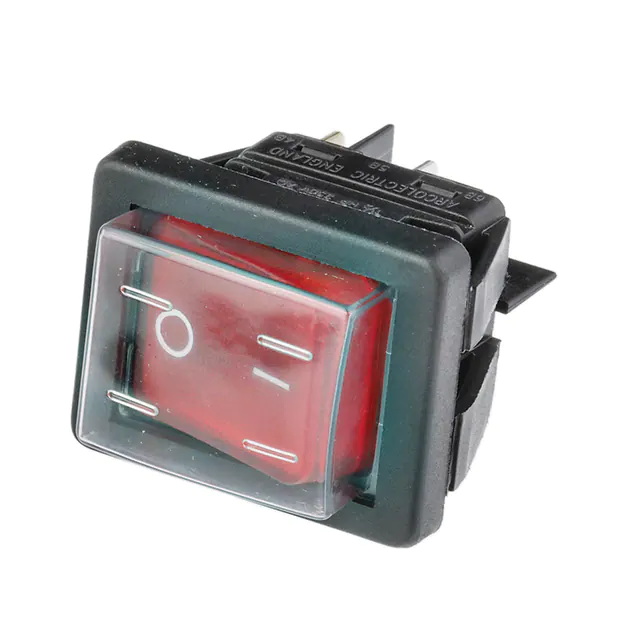

C6053ALBR3XND2SWITCH ROCKER DPST 20A 277V |
2,451 |
|
Технический лист |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Red | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
7103J51ZQE22SWITCH ROCKER SPDT 5A 120V |
119 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

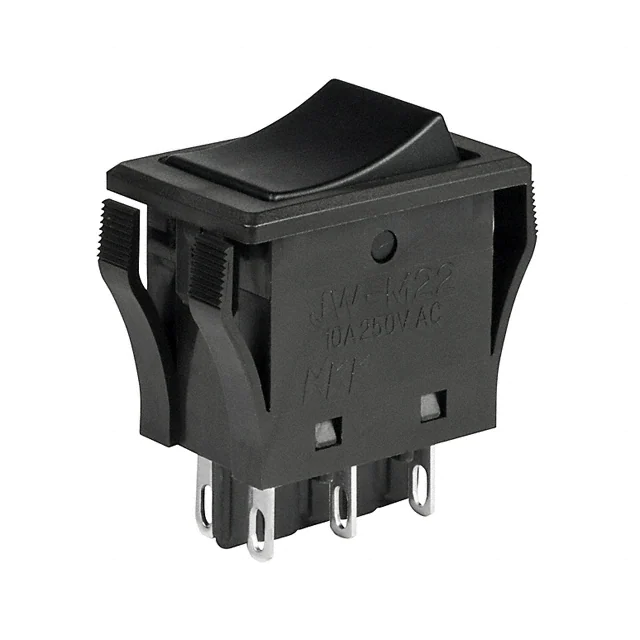

JWM22RAASWITCH ROCKER DPDT 10A 125V |
287 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|

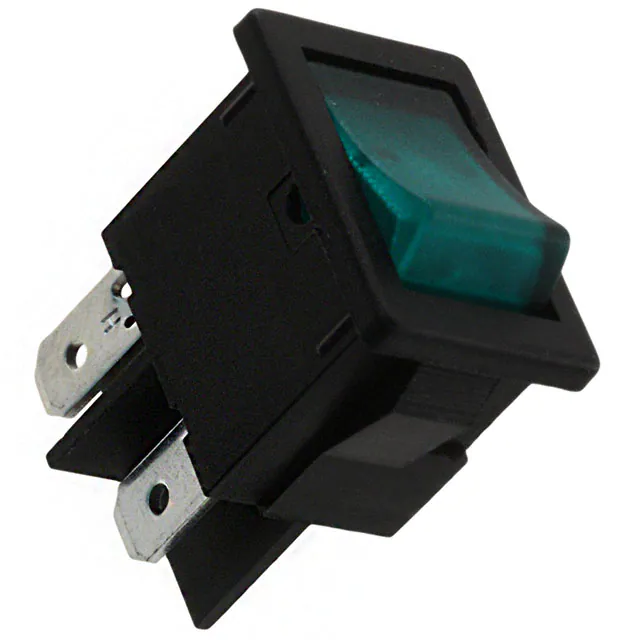

H8553VBBG2SWITCH ROCKER DPST 15A 250V |
115 |
|
Технический лист |
8500 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
|
C1353AABG2602AWSWITCH ROCKER DPST-NO 20A 250V |
135 |
|
Технический лист |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|

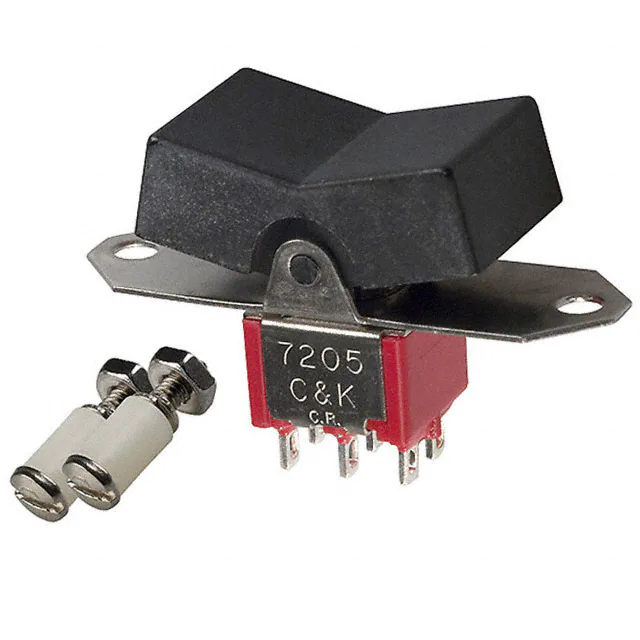

7205J3ZQE2SWITCH ROCKER DPDT 5A 120V |
519 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|

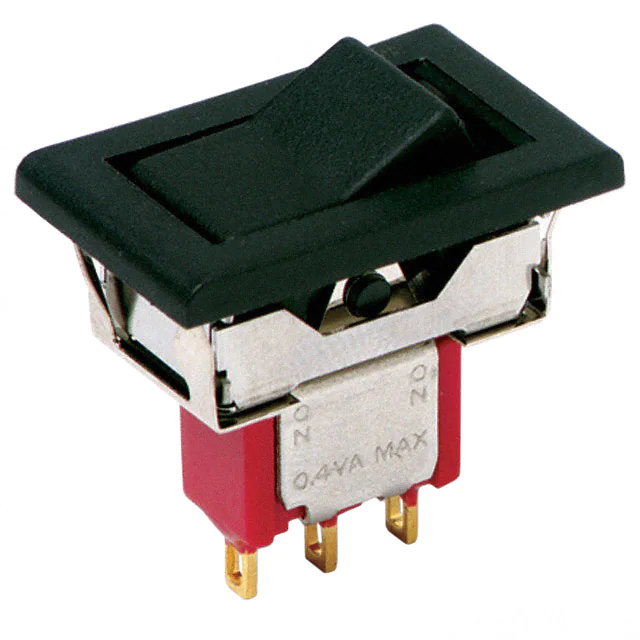

7101J16ZBE22SWITCH ROCKER SPDT 0.4VA 20V |
152 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
7201J11CQE22SWITCH ROCKER DPDT 5A 120V |
1,768 |
|
Технический лист |
7000 | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
ET01J6V3SE2SWITCH ROCKER SPDT 3A 120V |
337 |
|
Технический лист |
ET | Tray | Active | Through Hole | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
JWM21BA1A-ASWITCH ROCKER DPST 10A 125V |
15 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWL21BA2A-ASWITCH ROCKER DPST 16A 125V |
1,638 |
|
Технический лист |
JW | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|

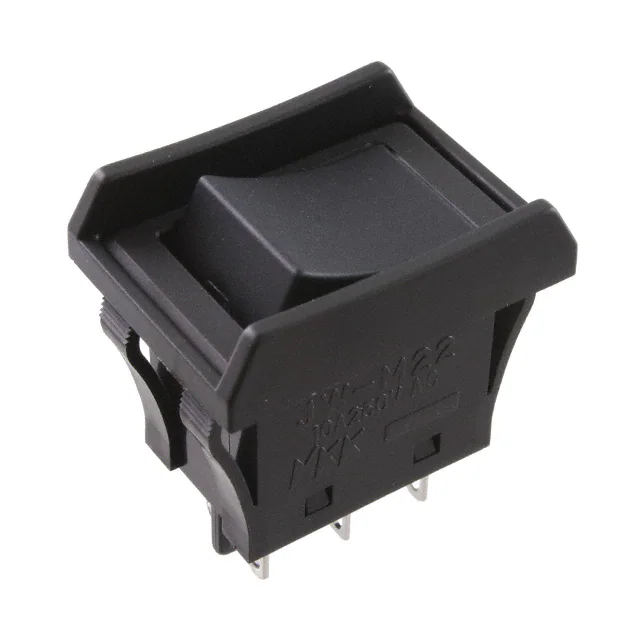

JWM22BAA-ASWITCH ROCKER DPDT 10A 125V |
222 |
|
Технический лист |
JW | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|

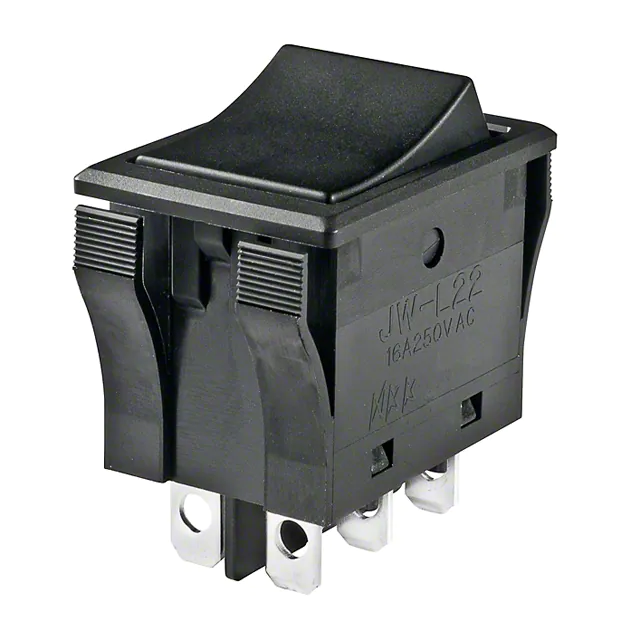

JWL22RAA/UCVSWITCH ROCKER DPDT 16A 125V |
147 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
7105J16ZBE22SWITCH ROCKER SPDT 0.4VA 20V |
144 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
