Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

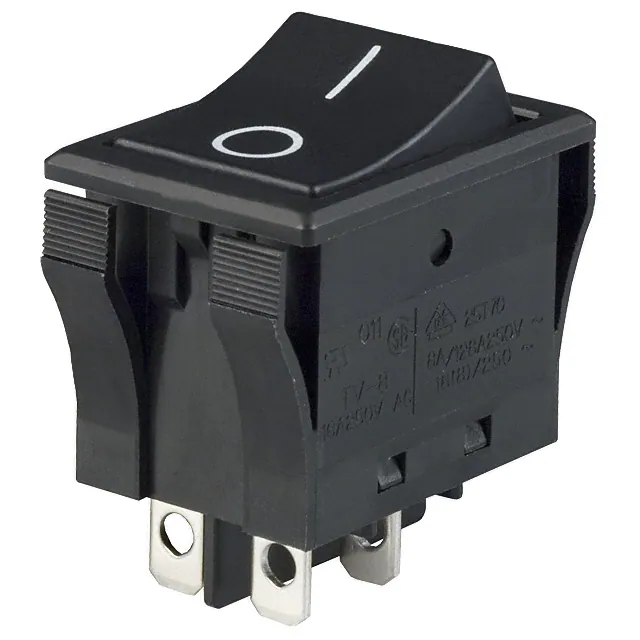

JWL21RA2ASWITCH ROCKER DPST 16A 125V |
1,973 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|

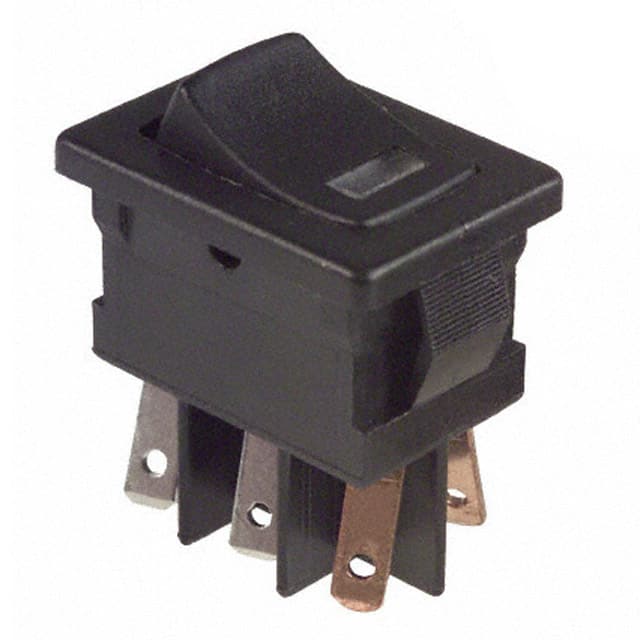

DM64J72S205Q3SWITCH ROCKER DPST 10A 125V |
363 |
|
Технический лист |
DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Positive Detent | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|

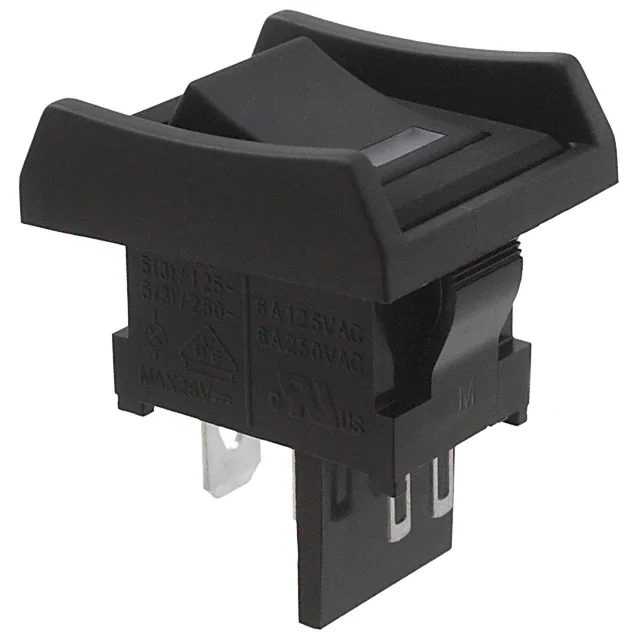

JWS11BAAF-ASWITCH ROCKER SPST 6A 125V |
1,392 |
|
Технический лист |
JWS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | With Barrier | Rectangular - 19.20mm x 12.90mm | -25°C ~ 50°C | CSA, UL, VDE |
|

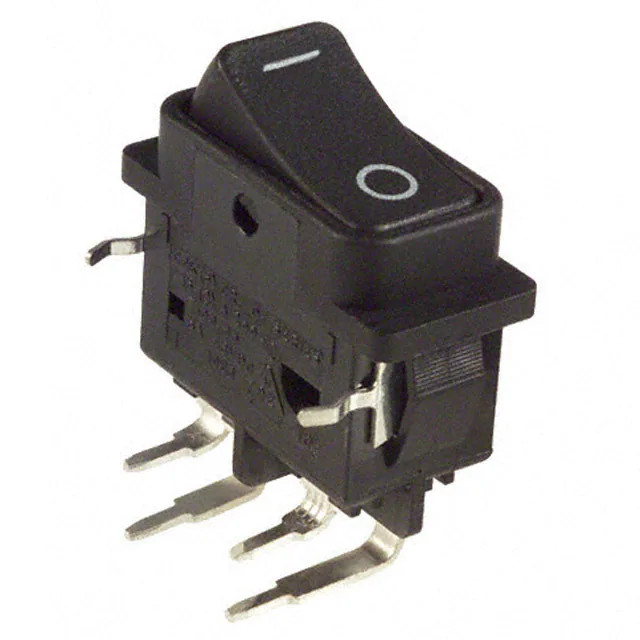

DF62J12S2AHQASWITCH ROCKER DPST 16A 125V |
1,057 |
|
Технический лист |
DF | Tube | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 26.14mm x 12.50mm | -20°C ~ 85°C | cULus |
|
|
DM64J72S205Q6SWITCH ROCKER DPST 10A 125V |
546 |
|
Технический лист |
DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Positive Detent | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|
C1353ALBA3-602AWSWITCH ROCKER DPST-NO 20A 250V |
1,086 |
|
Технический лист |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) - Illuminated | Amber | O - | Neon, Amber | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
GRB292A201BBNA2SWITCH ROCKER SPST 10A 24V |
1,033 |
|
Технический лист |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (DC) | - | 24 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 36.60mm x 21.00mm | -25°C ~ 85°C | - |
|

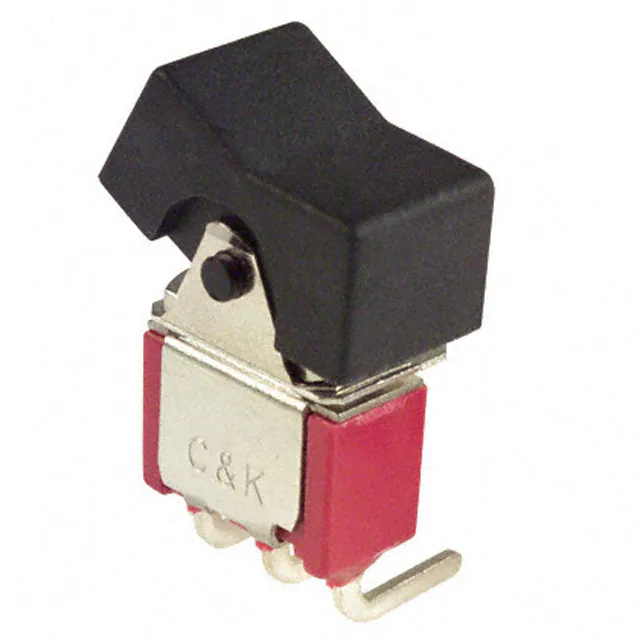

7101J1AQE2SWITCH ROCKER SPDT 5A 120V |
389 |
|
Технический лист |
7000 | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

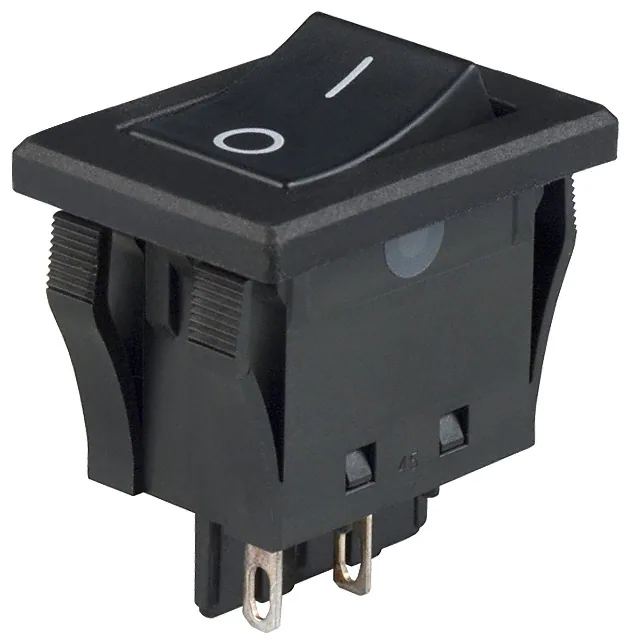

JWMW11RA2ASWITCH ROCKER SPST 10A 125V |
4,536 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|

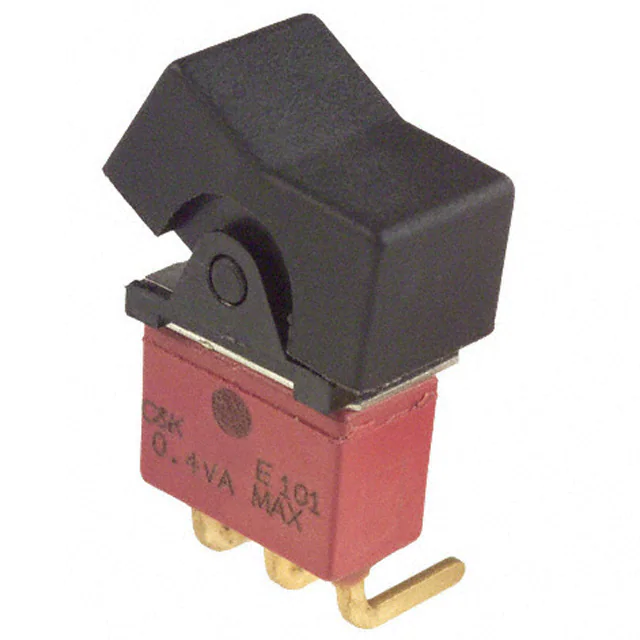

E101J1ABE2SWITCH ROCKER SPDT 0.4VA 20V |
200 |
|
Технический лист |
E | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

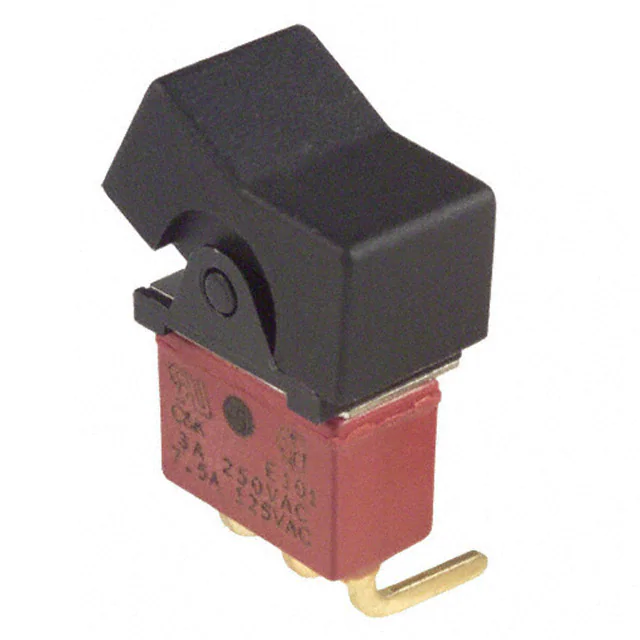

E101J1AQE2SWITCH ROCKER SPDT 7.5A 125V |
874 |
|
Технический лист |
E | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
ET01J6ABE2SWITCH ROCKER SPDT 0.4VA 20V |
612 |
|
Технический лист |
ET | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|

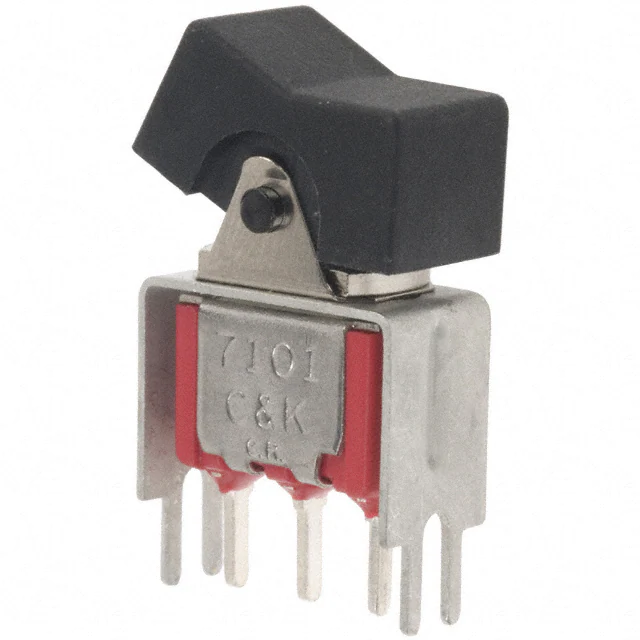

7101J1V3QE2SWITCH ROCKER SPDT 5A 120V |
1,919 |
|
Технический лист |
7000 | Tray | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

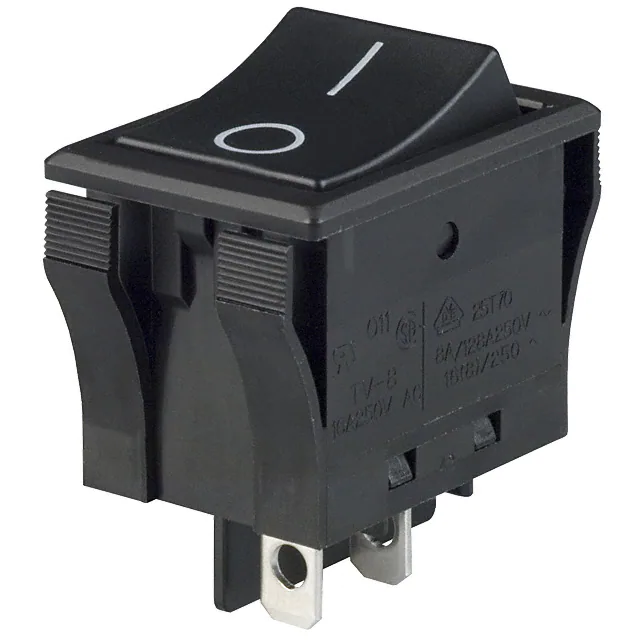

JWL11RA2ASWITCH ROCKER SPST 16A 125V |
587 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
E101J1AV2BE2SWITCH ROCKER SPDT 0.4VA 20V |
1,141 |
|
Технический лист |
E | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

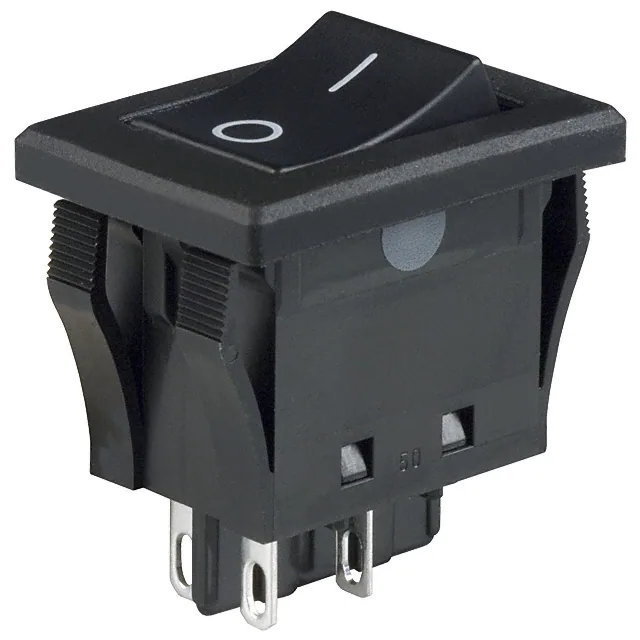

JWMW21RA2ASWITCH ROCKER DPST 10A 125V |
4,856 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|

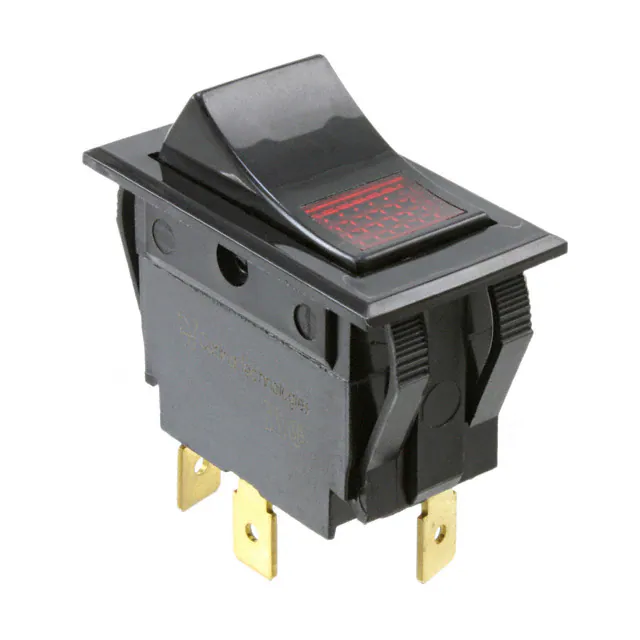

LTILA51-6S-BL-RC-NBL/125NSWITCH ROCKER SPST 15A 125V |
811 |
|
Технический лист |
LTIL | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Concave (Curved) - Illuminated | Black | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.83mm x 21.08mm | - | CSA, UL, VDE |
|

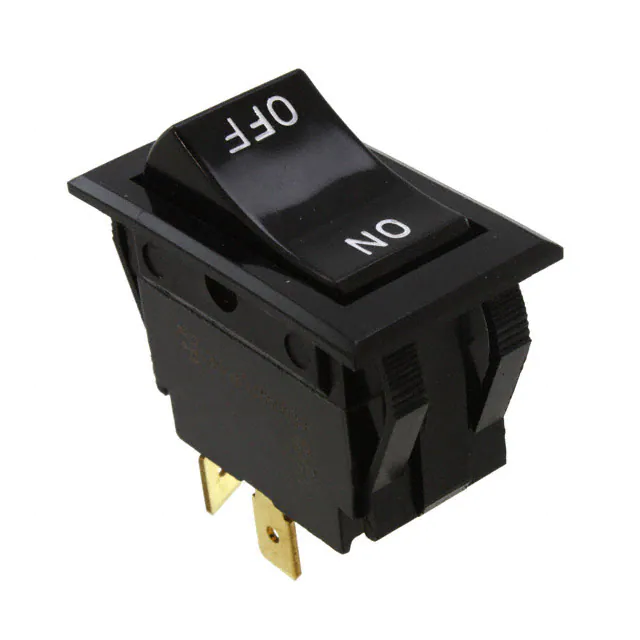

TIGK721-6S-BL-NBL/ON-OFFSWITCH ROCKER DPST 20A 277V |
4,056 |
|
Технический лист |
TIG | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.83mm x 21.08mm | - | CSA, UL, VDE |
|
W18D20001-AZZ00-000SWITCH ROCKER SPDT 10A 12V |
341 |
|
Технический лист |
W | Box | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 10A (DC) | - | 12 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | IP68 - Dust Tight, Waterproof | Sealed - Fully | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
JWL22RAASWITCH ROCKER DPDT 16A 125V |
285 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
