Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C6053ALBR2SWITCH ROCKER DPST 20A 277V |
0 |
|
Технический лист |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|

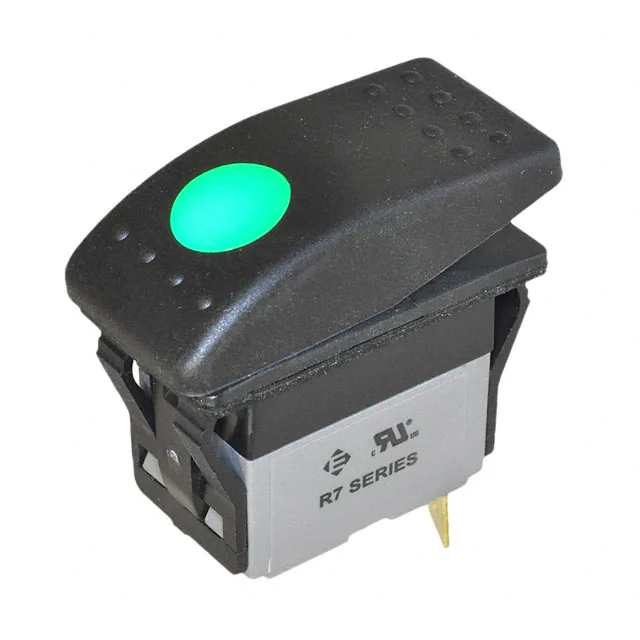

R711FF1-SXXX2BDGNWSWITCH ROCKER SPST 16A 30V |
0 |
|
Технический лист |
R7 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
632352-2B-3ESWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Red | O - | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632352-2B-4BSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Clear (Red Filter/Diffuser) | ON OFF, Horizontal | LED, Clear/Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632352-2B-4ESWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Red | O - | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
1M1-SP4-R3/2-M1QESWITCH ROCKER SPDT 5A 125V |
0 |
|
- |
1M1 | Bulk | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
1M1-SP5-R7/2-2M1QESWITCH ROCKER SPDT 5A 125V |
0 |
|
- |
1M1 | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | CSA, UL |
|
U11J50ZQE1SWITCH ROCKER SPDT 5A 120V |
0 |
|
Технический лист |
7000 | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
1SS-WMSP3-R1/2-VS2RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
- |
1S | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
1SS-WMSP3-R2/2-VS2RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
- |
1S | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
A23KB-CASWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Технический лист |
A | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
C6060ALBBSWITCH ROCKER DPDT 20A 277V |
0 |
|
Технический лист |
6050 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 277 V | - | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
C6060ALBB-1197WSWITCH ROCKER DPDT 20A 277V |
0 |
|
Технический лист |
6050 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 277 V | - | Flat | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|

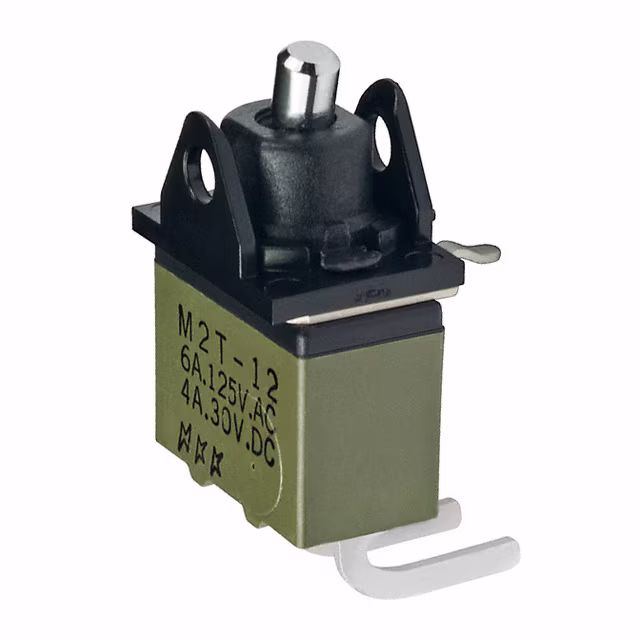

M2T12TXW30SWITCH ROCKER SPDT 6A 125V |
18 |
|
Технический лист |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
1SS-WMSP4-R2/0-M1GESWITCH ROCKER SPDT 3A 125V |
0 |
|
- |
1S | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 3A (AC/DC) | 125 V | 28 V | Concave (Curved) | - | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
1SS-WMSP4-R2/2-M2GESWITCH ROCKER SPDT 3A 125V |
0 |
|
- |
1S | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 3A (AC/DC) | 125 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
RGSCC915-R-B-B-ESWITCH ROCKER DPST 20A 125V |
0 |
|
- |
RG | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Wire Leads | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
A13KHSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Технический лист |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A15KB1SWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Технический лист |
A | Bulk | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
3003P5J1BLKM2RESWITCH ROCKER 3PDT 0.4VA 20V |
0 |
|
Технический лист |
300 | Bulk | Active | Through Hole | 3PDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
