Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1M1-DP1-R7/2-2M1QESWITCH ROCKER DPDT 5A 125V |
0 |
|
- |
1M1 | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | CSA, UL |
|
U11J15ZQE2SWITCH ROCKER SPDT 5A 120V |
0 |
|
Технический лист |
7000 | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
C1553AABG3602AWSWITCH ROCKER DPST 16A 250V |
0 |
|
Технический лист |
1550 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
|
A22K1VSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Технический лист |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

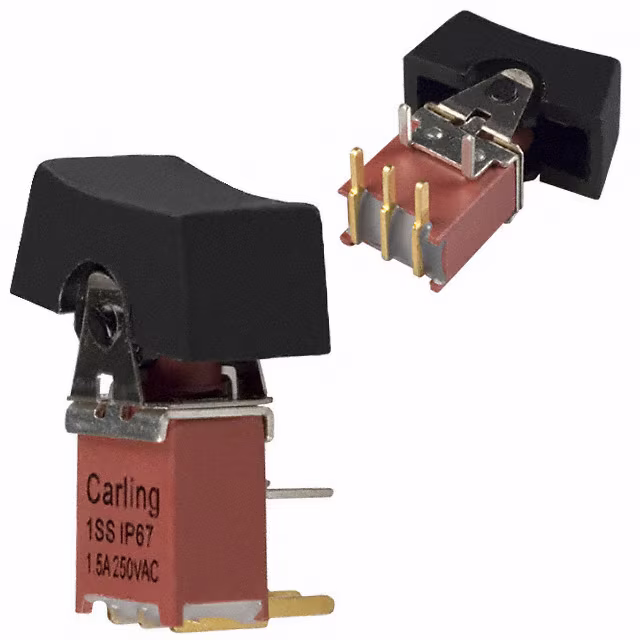

1SS-WMSP1-R1/2-M6GESWITCH ROCKER SPDT 3A 125V |
0 |
|
Технический лист |
1S | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 125 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
RP86XXB2M1CEBLKSILSwitches |
0 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7103J1CBE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Технический лист |
7000 | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
47DWMDP4R1M2QTSWITCH ROCKER DPDT 3A 125V |
0 |
|
Технический лист |
47D | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 3A (AC/DC) | 125 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
AS39S0000ROCKER SWITCH AS PANEL SNAP IN |
0 |
|
Технический лист |
AS | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 18.65mm x 8.90mm | -40°C ~ 85°C | UL |
|
|
D201J12S215UQASWITCH ROCKER DPDT 4A 125V |
0 |
|
Технический лист |
D | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 4A (AC) | 125 V | - | Concave (Curved) | Black | O on End | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.53mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
1MS-SP1-R1-VS3GESWITCH ROCKER SPDT 5A 125V |
0 |
|
- |
1MS | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | - | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
1MS-SP1-R2-VS2KESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
- |
1MS | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | - | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
1MS-SP1-R1-VS2PESWITCH ROCKER SPDT 5A 125V |
0 |
|
- |
1MS | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | - | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
CF-LA-2KC-5SWITCH ROCKER DPST 16A 125V |
0 |
|
Технический лист |
CF-LA | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | IP40 | In Rush 160A Max | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, UL |
|
|
CF-LA-2KZ2-5SWITCH ROCKER DPST 16A 125V |
0 |
|
Технический лист |
CF-LA | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | In Rush 160A Max | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, UL |
|
|
EHRRSLPKGSWITCH ROCKER |
0 |
|
- |
EH | Bulk | Active | Panel Mount, Flange | DPDT | - | - | - | - | Concave (Curved) | - | O - | - | - | Solder Lug | - | - | - | - | - |
|
|
A23KWSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
- |
A | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | Wire Wrap | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
62112461-0-9-WSWITCH ROCKER DPDT 8A 125V |
0 |
|
- |
621 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 8A (AC) | 125 V | - | Concave (Curved) | Black, White | O I | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
3003P1J1BLKVS3QESWITCH ROCKER 3PDT 5A 120V |
0 |
|
Технический лист |
300 | Bulk | Active | Through Hole | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
3003P1J3BLKVS5QESWITCH ROCKER 3PDT 5A 120V |
0 |
|
Технический лист |
300 | Bulk | Active | Through Hole | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
