Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TA22B-TLW-WSWITCH ROCKER SPST-NO 15A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
R711FA2-SXXX2BDRNWSWITCH ROCKER SPST 16A 30V |
0 |
|
Технический лист |
R7 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 30 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
|
C1522WRBBSWITCH ROCKER SPDT 16A 250V |
0 |
|
Технический лист |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|
|
C1560AABWSWITCH ROCKER DPDT 16A 250V |
0 |
|
Технический лист |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|

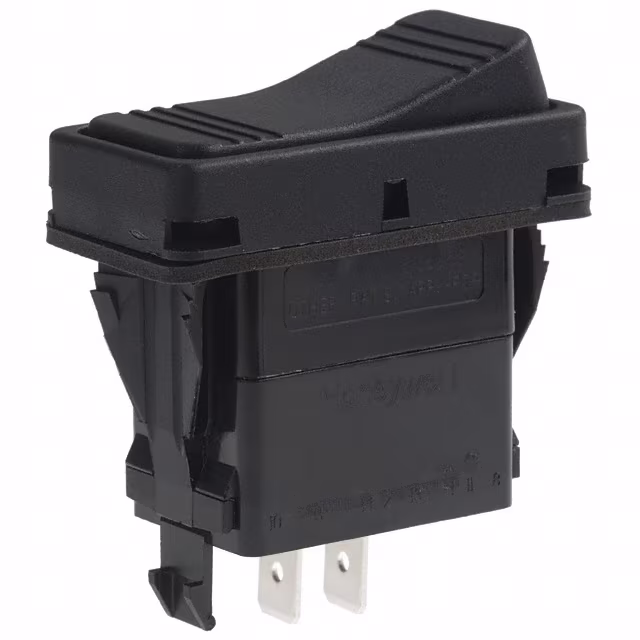

SRN91-12BBSWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
SRN | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|

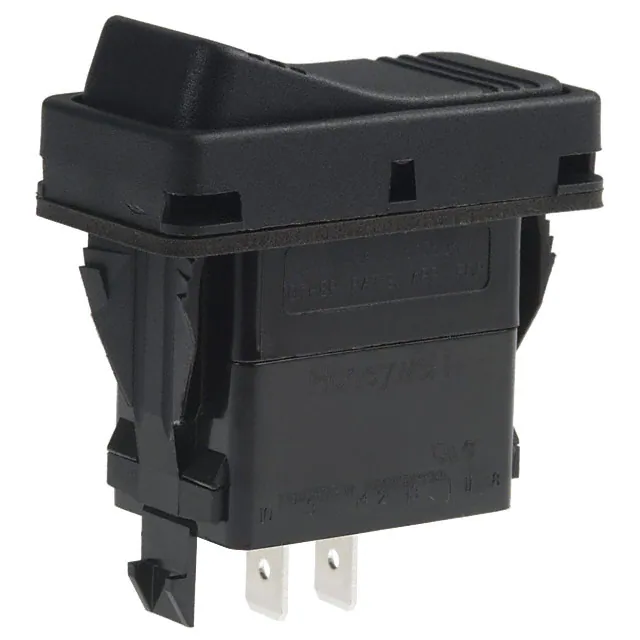

SRN91-16BBSWITCH ROCKER SPST-NO 15A 125V |
0 |
|
Технический лист |
SRN | Bulk | Obsolete | Panel Mount, Snap-In | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|
|
SRN91-14BBSWITCH ROCKER SPST-NC 15A 125V |
0 |
|
Технический лист |
SRN | Bulk | Obsolete | Panel Mount, Snap-In | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|

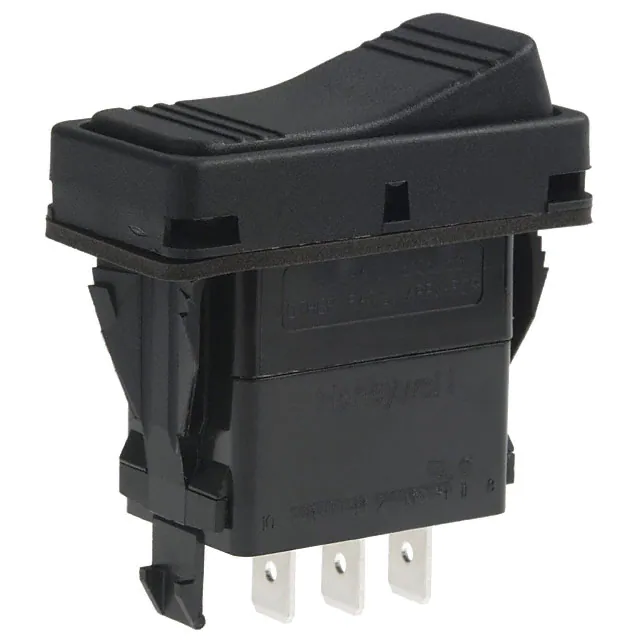

SRN91-13BBSWITCH ROCKER SPDT 15A 125V |
0 |
|
Технический лист |
SRN | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|
|
SRN91-11BBSWITCH ROCKER SPDT 15A 125V |
0 |
|
Технический лист |
SRN | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 20.82mm | -40°C ~ 85°C | - |
|
|
47BWSP1J1V2RTSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Технический лист |
47B | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
JWM11RBB/UCVSWITCH ROCKER SPST 10A 125V |
0 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Ivory | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
CRSP4A7M9SWITCH ROCKER SPST-NO 20A 125V |
0 |
|
Технический лист |
CRSP | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
|
CRSP5A12M9SWITCH ROCKER SPST-NC 20A 125V |
0 |
|
Технический лист |
CRSP | Bulk | Active | Panel Mount, Snap-In | SPST-NC | On-Mom | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
|
CRSP4A12M9SWITCH ROCKER SPST-NO 20A 125V |
0 |
|
Технический лист |
CRSP | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
|
CRSP4A9M9SWITCH ROCKER SPST-NO 20A 125V |
0 |
|
Технический лист |
CRSP | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
|
47BWSP5J1V2RTSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Технический лист |
47B | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
C6053ALBA31196WSWITCH ROCKER DPST 20A 277V |
0 |
|
Технический лист |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Amber | O I | Neon, Amber | 250 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
C6053ALBA31197WSWITCH ROCKER DPST 20A 277V |
0 |
|
Технический лист |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Amber | O - | Neon, Amber | 250 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
H8611VBBBSWITCH ROCKER SPDT 6A 277V |
0 |
|
Технический лист |
8600 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 6A (AC) | 277 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
|
C5503AABG2SWITCH ROCKER SPST 16A 250V |
0 |
|
Технический лист |
5500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
