Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
632152-4B-CNSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Green | No Marking | Incandescent, Green | 12 VAC/DC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632151-3B-CNSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Blue | No Marking | Incandescent, Blue | 12 VAC/DC | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632152-2B-ENSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Red | No Marking | Incandescent, Red | 18 VAC/DC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632152-2B-HNSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Red | No Marking | Incandescent, Red | 24 VAC/DC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632152-3B-HNSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Blue | No Marking | Incandescent, Blue | 24 VAC/DC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632152-2B-CNSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Red | No Marking | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632152-4B-HNSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Green | No Marking | Incandescent, Green | 24 VAC/DC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
632152-3B-CNSWITCH ROCKER SPST 12A 28V |
0 |
|
- |
632 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (DC) | - | 28 V | Flat - Illuminated | Blue | No Marking | Incandescent, Blue | 12 VAC/DC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
FL2D-2M-ZSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Технический лист |
FL | Bulk | Obsolete | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | - | - | -40°C ~ 85°C | - |
|
ET03J6SA1BE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Технический лист |
ET | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | SMD (SMT) Tab | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|

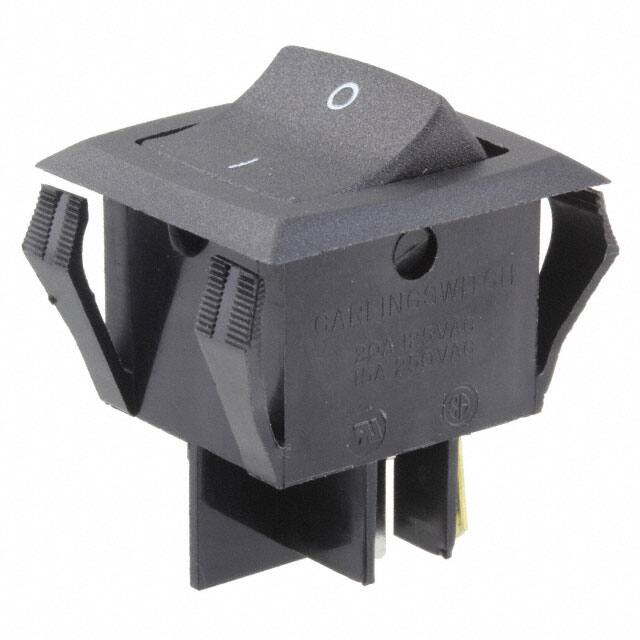

RGSCC211-R-B-B-ESWITCH ROCKER DPST 20A 125V |
0 |
|
Технический лист |
RG | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|
|
AS36S0100SWITCH ROCKER SPDT 4A 125V |
0 |
|
Технический лист |
AS | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 4A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.65mm x 8.90mm | -40°C ~ 85°C | UL |
|
|
61012421-E-0SWITCH ROCKER DPDT 8A 125V |
0 |
|
- |
610 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 8A (AC) | 125 V | - | Paddle | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.87mm x 13.08mm | 0°C ~ 85°C | CSA, UL |
|
|
RBW2ABLKBILEF3SWITCH ROCKER DPST 16A 125V |
0 |
|
Технический лист |
RBW2 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Blue | No Marking | Incandescent, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.30mm | -20°C ~ 85°C | - |
|
|
A15K1WSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
- |
A | Tray | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | Wire Wrap | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

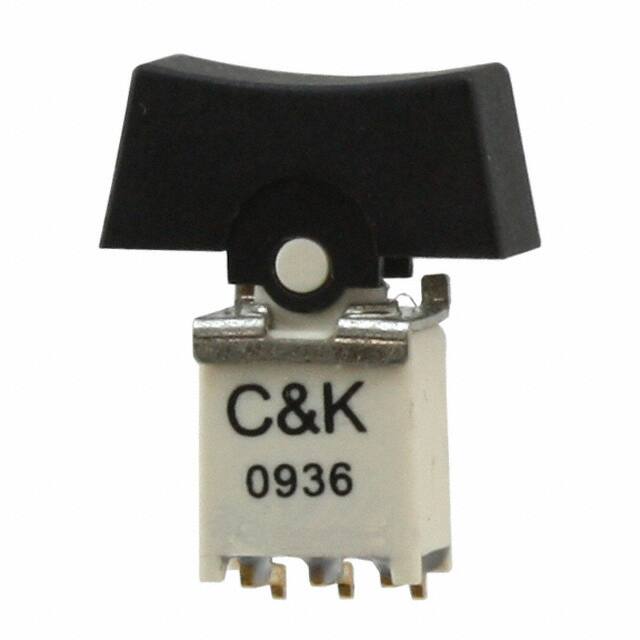

ET07J6SA1BE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Технический лист |
ET | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | SMD (SMT) Tab | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
TGAO511-TB-B/ON-OFFSWITCH ROCKER SPST 15A 125V |
0 |
|
- |
TG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | 0°C ~ 85°C | CSA, UL |
|
|
TA201-BR-BSWITCH ROCKER SPST 15A 125V |
0 |
|
- |
T | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | - | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.57mm x 13.97mm | 0°C ~ 85°C | cUL, UL |
|
|
622222-BB-NESWITCH ROCKER DPST 12A 125V |
0 |
|
Технический лист |
622 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|
|
622221-BB-NBSWITCH ROCKER DPST 12A 125V |
0 |
|
- |
622 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 12A (AC) | 125 V | - | Flat | Black | ON OFF, Horizontal | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
