Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

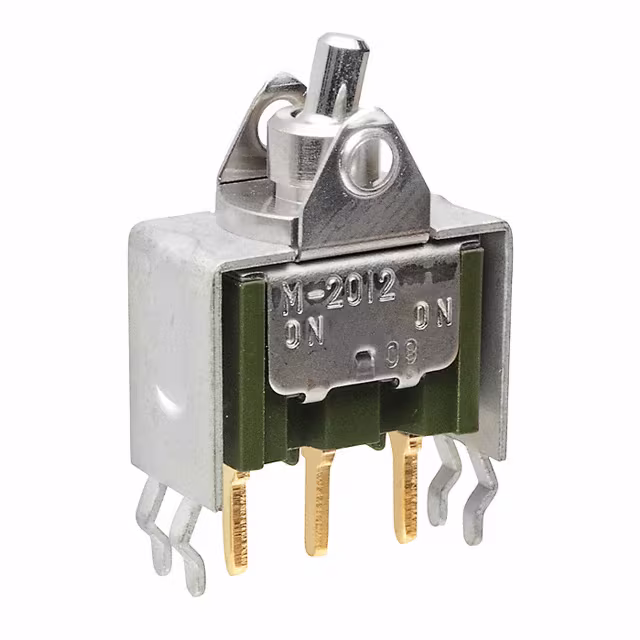

M2012TXG13/108SWITCH ROCKER SPDT 0.4VA 28V |
7 |
|
Технический лист |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
C1250ANBB-085WSWITCH ROCKER DPST 16A 250V |
0 |
|
Технический лист |
1250 | Bulk | Active | Panel Mount, Flange | DPST | On-Off | 16A (AC), 1A (DC) | 250 V | 30 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 26.30mm x 12.40mm | - | CSA, UL |
|
|
300DP4J3BLKVS2QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Технический лист |
300 | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP4J6BLKVS2QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Технический лист |
300 | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
47BWSP1J5M1RTSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Технический лист |
47B | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
47BWSP1J1M6RTSWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Технический лист |
47B | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300AWSP4J6BLKVS21RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Технический лист |
300A | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
ALE2D-2M4-10-ZSWITCH ROCKER DPDT 50MA 48V |
0 |
|
Технический лист |
ALE | Bulk | Active | Through Hole | DPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Sealed - Fully | - | -20°C ~ 85°C | UL |
|
|
300DP4R6WHTM1REWHTSWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Технический лист |
300 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300DP4R7WHTM1REBLKSWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Технический лист |
300 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300DP6R7BLKM1REBLKSWITCH ROCKER SP3T 0.4VA 20V |
0 |
|
Технический лист |
300 | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300DP4R7BLKM1REBLKSWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Технический лист |
300 | Tray | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|
|
300AWDP2J1BLKM7RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Технический лист |
300A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
651782-BB-0WSWITCH ROCKER SPDT 10A 125V |
0 |
|
- |
651 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Black, White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|

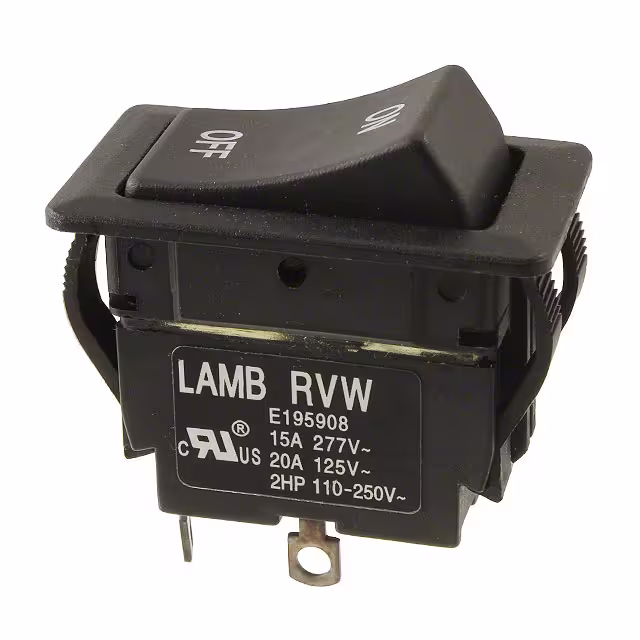

RVW52D1123SWITCH ROCKER DPST 20A 125V |
0 |
|
Технический лист |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
KGC2BNB1BBBSWITCH ROCKER SPDT 20A 125V |
0 |
|
- |
KG | Box | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|
|
300AWDP4R1M1RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
Технический лист |
300A | Bulk | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
|
|
C1350AHBB-602AWSWITCH ROCKER DPST-NO 20A 250V |
0 |
|
Технический лист |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - | CSA, UL |
|
|
RVW45D112SSWITCH ROCKER SPDT 20A 125V |
0 |
|
Технический лист |
RVW | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | 0°C ~ 55°C | - |
|
|
300AWDP3J1VS2QESWITCH ROCKER DPDT 5A 120V |
0 |
|
Технический лист |
300A | Bulk | Active | Through Hole | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
