Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1572AABB-BSWITCH ROCKER DPDT 16A 250V |
6 |
|
Технический лист |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
M2026TJW01-FA-1ASWITCH ROCKER SP3T 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Snap-In | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2026TJW01-FC-1ASWITCH ROCKER SP3T 6A 125V |
34 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Snap-In | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2027TJW01-GA-1ASWITCH ROCKER SP3T 6A 125V |
0 |
|
Технический лист |
M | Tray | Obsolete | Panel Mount, Snap-In | SP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2027TJW01-FC-1ASWITCH ROCKER SP3T 6A 125V |
23 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Snap-In | SP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2027TJW01-FB-1BSWITCH ROCKER SP3T 6A 125V |
17 |
|
Технический лист |
M | Tray | Obsolete | Panel Mount, Snap-In | SP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|

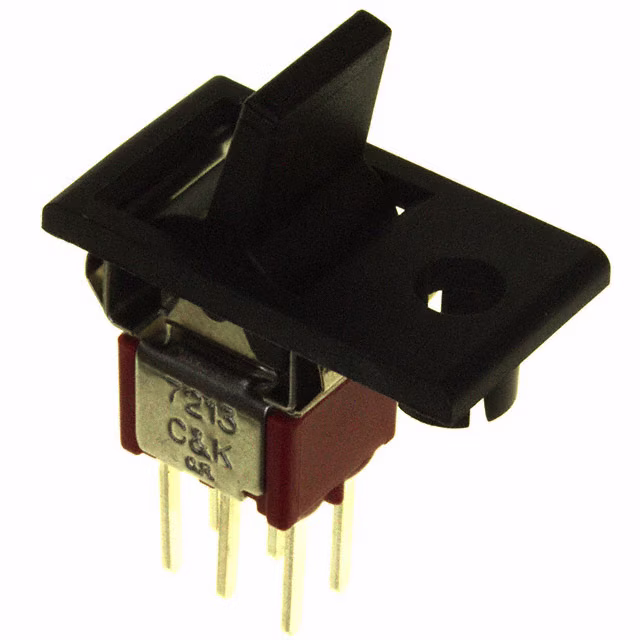

7213J62W3QE22SWITCH ROCKER SP3T 5A 120V |
6 |
|
Технический лист |
7000 | Tray | Active | Panel Mount, Snap-In | SP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle - Illuminated | Black | No Marking | - | - | Wire Wrap | - | Jumper needed to achieve triple throw | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
M2033TNW01-FFSWITCH ROCKER 3PDT 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Flange | 3PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Green | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | CSA, UL |
|
|
WR15BSSWITCH ROCKER SPDT 15A 125V |
0 |
|
Технический лист |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Ivory | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
WR15AF/CULSWITCH ROCKER SPDT 15A 125V |
0 |
|
Технический лист |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
|
M2112NEW01SWITCH ROCKER SPDT 6A 125V |
33 |
|
Технический лист |
M2100 | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Yellow | 2.1 VDC | Solder Lug | - | - | Rectangular - 17.80mm x 10.10mm | -10°C ~ 55°C | CSA, UL |
|
|
M2112NCW01SWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
M2100 | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Red | 2.2 VDC | Solder Lug | - | - | Rectangular - 17.80mm x 10.10mm | -10°C ~ 55°C | CSA, UL |
|
|
M2112JEW01SWITCH ROCKER SPDT 6A 125V |
30 |
|
Технический лист |
M2100 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Yellow | 2 VDC | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -25°C ~ 70°C | CSA, UL |
|
|
L11D1AN01-A7Z58-100SWITCH ROCKER SPST 20A 12V |
8 |
|
- |
L | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | Low Beam, Vertical | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 44.04mm x 22.02mm | -40°C ~ 85°C | - |
|
|
M2028TJW02-FA-3A-CFSWITCH ROCKER DPDT 6A 125V |
19 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green/Red | 2.0, 2.25 VDC | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2013TJW01-FA-4A-CFSWITCH ROCKER SPDT 6A 125V |
16 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green/Red | 1.9, 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
P2021YZSWITCH ROCKER DPST 10A 125V |
23 |
|
Технический лист |
P | Bulk | Obsolete | Panel Mount, Flange | DPST | On-Off | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.50mm x 16.00mm | -10°C ~ 85°C | CSA, UL, VDE |
|
|
P2022YSWITCH ROCKER DPDT 10A 125V |
22 |
|
Технический лист |
P | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 28.50mm x 16.00mm | -10°C ~ 85°C | CSA, UL, VDE |
|
|
MLW3013-F-LF-1ASWITCH ROCKER SPDT 5A 125V |
0 |
|
- |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Green | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | - | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
LW3128-L100-ASWITCH ROCKER DPDT 10A 125V |
16 |
|
Технический лист |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | White | No Marking | Incandescent, White | 28 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
