Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2028TJW02-GA-1ASWITCH ROCKER DPDT 6A 125V |
19 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2T22TXG41-DCSWITCH ROCKER DPDT 0.4VA 28V |
20 |
|
Технический лист |
M2 | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
M2023TXW13-DASWITCH ROCKER DPDT 6A 125V |
10 |
|
Технический лист |
M | Tray | Obsolete | Through Hole | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2023TXW13-DCSWITCH ROCKER DPDT 6A 125V |
10 |
|
Технический лист |
M | Tray | Obsolete | Through Hole | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2023TXW13-EASWITCH ROCKER DPDT 6A 125V |
10 |
|
Технический лист |
M | Box | Obsolete | Through Hole | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2023TXW13-FASWITCH ROCKER DPDT 6A 125V |
10 |
|
Технический лист |
M | Box | Obsolete | Through Hole | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2023TXW13-DHSWITCH ROCKER DPDT 6A 125V |
10 |
|
Технический лист |
M | Bulk | Obsolete | Through Hole | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Gray | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2023TXW13-DBMINIATURE ROCKER/MULTI-FUNCTION |
10 |
|
Технический лист |
M | Bulk | Obsolete | Through Hole | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | White | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

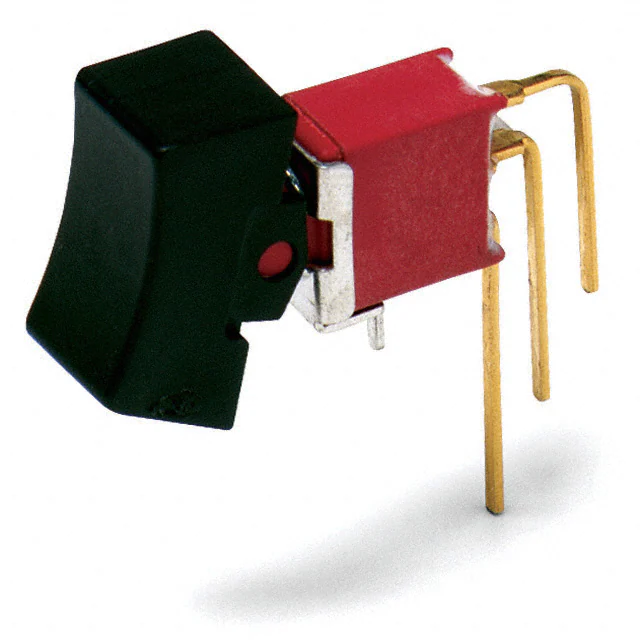

ET01J1AVBE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Технический лист |
ET | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
|
M2023TJG01SWITCH ROCKER DPDT 0.4VA 28V |
63 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2018TJG03-GA-1ASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2018TJW03-GA-1ASWITCH ROCKER SPDT 6A 125V |
29 |
|
Технический лист |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2018TJW03-FA-1ASWITCH ROCKER SPDT 6A 125V |
29 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2026TYW01-JASWITCH ROCKER SP3T 6A 125V |
26 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Flange | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2013TJW01-FF-1ASWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Green | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2013TJW01-GH-1HSWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2013TJW01-GH-1ASWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2028TYW01-HASWITCH ROCKER DPDT 6A 125V |
10 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Flange | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2028TYW01-HGSWITCH ROCKER DPDT 6A 125V |
10 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Flange | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Blue | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2028TYW01-JBSWITCH ROCKER DPDT 6A 125V |
10 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Flange | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
