Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A25K1B-EASWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Технический лист |
A | Tray | Active | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
M2013TNW01-EBSWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2015TNW01-DASWITCH ROCKER SPDT 6A 125V |
26 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Flange | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2015TNW01-DCSWITCH ROCKER SPDT 6A 125V |
26 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Flange | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2015TNW01-EASWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2015TNW01-GGSWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Blue | No Marking | - | - | Solder Lug | - | - | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TXW15-GCSWITCH ROCKER SPDT 6A 125V |
24 |
|
Технический лист |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2015TNW01-GHSWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Gray | No Marking | - | - | Solder Lug | - | - | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | CSA, UL |
|
M2013TNW01-GBSWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TXW15-DBSWITCH ROCKER SPDT 6A 125V |
10 |
|
Технический лист |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
JWL11RAASWITCH ROCKER SPST 16A 125V |
0 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|

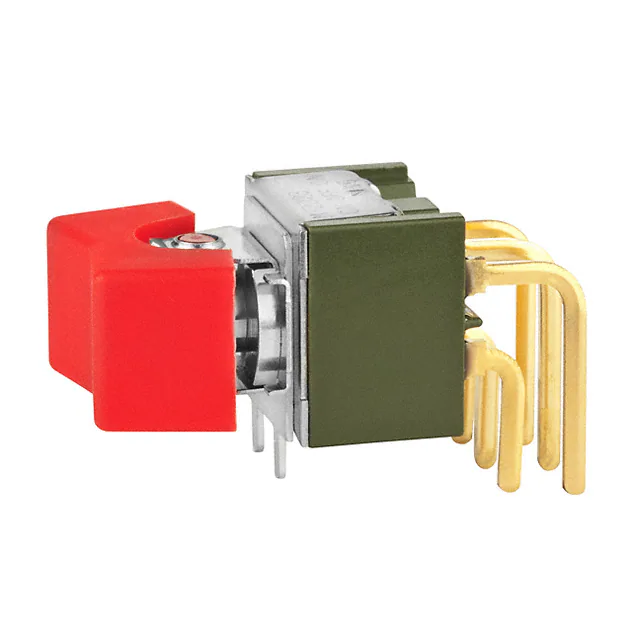

M2023TXG30-DCSWITCH ROCKER DPDT 0.4VA 28V |
45 |
|
Технический лист |
M | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
KG313A2XXA21XXSWITCH ROCKER SPST 15A 12V |
0 |
|
Технический лист |
KG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 12 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
KG312A2XXA61XXSWITCH ROCKER SPST 15A 12V |
0 |
|
Технический лист |
KG | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 12 V | Convex (Reverse V) | Red | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
A25K1H-DASWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
- |
A | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
M2028TYA01-JBSWITCH ROCKER DPDT 6A 125V |
49 |
|
Технический лист |
M | Tray | Obsolete | Panel Mount, Flange | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2T23TXW13SWITCH ROCKER DPDT 6A 125V |
32 |
|
Технический лист |
M2 | Box | Obsolete | Through Hole | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
M2012TNW03-EASWITCH ROCKER SPDT 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TNW03-FBSWITCH ROCKER SPDT 6A 125V |
17 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Flange | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | CSA, UL |
|
|
G28KP-YBSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
Технический лист |
G | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
