Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7401J1AV2ME2SWITCH ROCKER 4PDT 5A 120V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | cULus |
|
|
7401J1CKE2SWITCH ROCKER 4PDT 0.4VA 20V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | cULus |
|
|
7401J1CME3SWITCH ROCKER 4PDT 5A 120V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | cULus |
|
|
7401J1V4ME2SWITCH ROCKER 4PDT 5A 120V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | cULus |
|
|
7401J1V7ME2SWITCH ROCKER 4PDT 5A 120V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | cULus |
|
|
7401J37ZQE11SWITCH ROCKER 4PDT 5A 120V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Panel Mount, Snap-In | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 30.99mm x 17.15mm | -30°C ~ 85°C | cULus |
|
|
7401J3CKE2SWITCH ROCKER 4PDT 0.4VA 20V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | cULus |
|
|
7411J37CQE11SWITCH ROCKER DP3T 5A 120V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Panel Mount, Snap-In | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | Rectangular - 30.99mm x 17.15mm | -30°C ~ 85°C | cULus |
|
C122J11S105PQFSWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
C | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 13.97mm | -30°C ~ 65°C | CSA, UL, VDE |
|
|
C122J11S205QASWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
C | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 13.97mm | -30°C ~ 65°C | CSA, UL, VDE |
|
|
C122J12S205DQASWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
C | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 13.97mm | -30°C ~ 65°C | CSA, UL, VDE |
|
|
C122J12S205PQASWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
C | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 13.97mm | -30°C ~ 65°C | CSA, UL, VDE |
|
|
C122J13S205DQASWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
C | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 13.97mm | -30°C ~ 65°C | CSA, UL, VDE |
|
|
C122J13S205DQFSWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
C | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 13.97mm | -30°C ~ 65°C | CSA, UL, VDE |
|
|
C122J13S205PQASWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
C | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.58mm x 13.97mm | -30°C ~ 65°C | CSA, UL, VDE |
|
|
C222J12S205PQASWITCH ROCKER DPST 15A 125V |
0 |
|
Технический лист |
C | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.50mm x 25.40mm | -30°C ~ 65°C | CSA, UL, VDE |
|
|
CA01J12207HQSWITCH ROCKER SPDT 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Standard V) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 10.67mm | -30°C ~ 65°C | CSA, UL |
|
|
CA02J11207QSWITCH ROCKER SPST 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 10.67mm | -30°C ~ 65°C | CSA, UL |
|
|
CA02J12207HQSWITCH ROCKER SPST 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 10.67mm | -30°C ~ 65°C | CSA, UL |
|

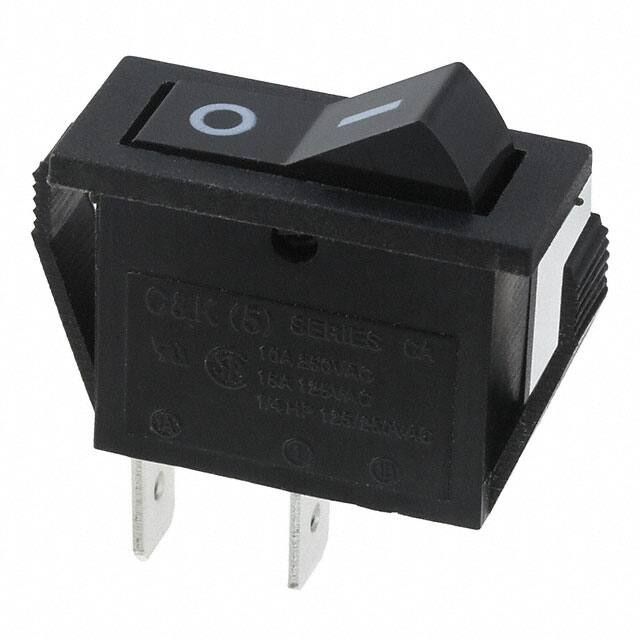

CA02J12207PQSWITCH ROCKER SPST 15A 125V |
0 |
|
- |
CA | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Standard V) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.20mm x 10.67mm | -30°C ~ 65°C | CSA, UL |
