Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AML24EBA2CA04SWITCH ROCKER DPDT 3A 125V |
0 |
|
Технический лист |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
AML36FBC4AC01SWITCH ROCKER DPST 15A 125V |
0 |
|
Технический лист |
AML36 | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Neon, Red | 250 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CE, CSA, UL, VDE |
|
|
1TP7-1SWITCH ROCKER SPDT 15A 125V |
0 |
|
Технический лист |
TP | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Off-On | 15A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
1TP7-2SWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
TP | Bulk | Obsolete | Panel Mount, Flange | SPST | On-Off | 15A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
1TP12-7SWITCH ROCKER SPDT 10A 125V |
0 |
|
Технический лист |
TP | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|

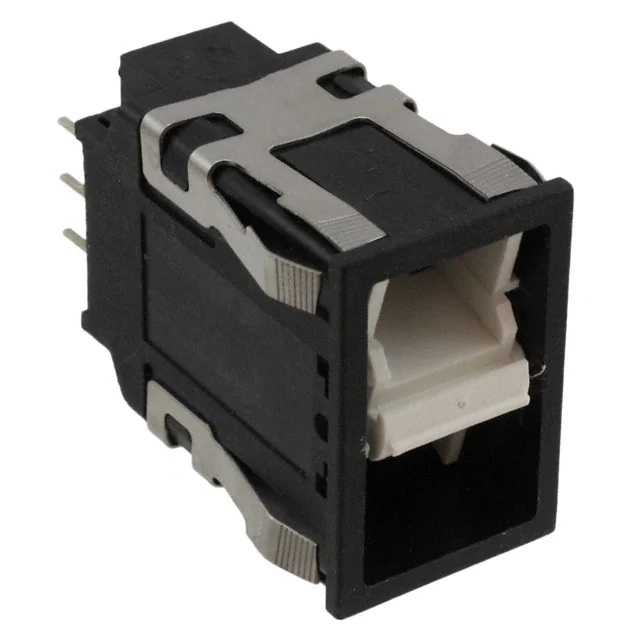

AML24EBA3BC04SWITCH ROCKER DPDT 100MA 125V |
0 |
|
Технический лист |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
|
AML24EBA2BC04SWITCH ROCKER DPDT 100MA 125V |
0 |
|
Технический лист |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
AML24GBA2BA05SWITCH ROCKER SPDT 100MA 125V |
0 |
|
Технический лист |
AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
AML24FBE2CA03SWITCH ROCKER DPDT 3A 125V |
0 |
|
Технический лист |
AML24 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
AML26FBB2AA01RXSWITCH ROCKER SPDT 3A 125V |
0 |
|
Технический лист |
AML26 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Red | 2.4 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|
|
1TP66-2SWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
TP | Bulk | Obsolete | Panel Mount, Flange | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
AML24EBA2CA05SWITCH ROCKER DPDT 3A 125V |
0 |
|
Технический лист |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|

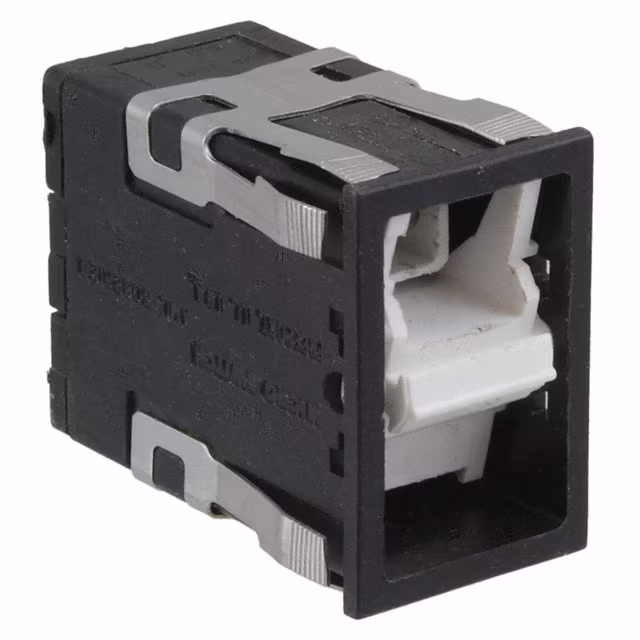

AML36FBC4AA01SWITCH ROCKER SPST 15A 125V |
0 |
|
Технический лист |
AML36 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Neon, Red | 250 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | - |
|
|
AML24EBA3BC01SWITCH ROCKER DPDT 100MA 125V |
0 |
|
Технический лист |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
AML26FBC3BA01GXSWITCH ROCKER SPDT 100MA 125V |
0 |
|
Технический лист |
AML26 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green | 5 VDC | PC Pin | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|
|
1TP65-7SWITCH ROCKER SPDT 10A 125V |
0 |
|
Технический лист |
TP | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | Clear | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
AML24EBA2CA01SWITCH ROCKER DPDT 3A 125V |
0 |
|
Технический лист |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
AML24EBA2CA06SWITCH ROCKER DPDT 3A 125V |
0 |
|
Технический лист |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
2TP8-3SWITCH ROCKER DPDT 15A 125V |
0 |
|
Технический лист |
TP | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 15A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
1TP155-7SWITCH ROCKER SPDT 10A 125V |
0 |
|
Технический лист |
TP | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
