RFI и EMI — контакты, напальчники и прокладки
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Форма | Ширина | Длина | Высота | Материал | Покрытие | Покрытие - толщина | Способ крепления | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3020802RFI FOF GASKET PU ADH |
0 |
|
Технический лист |
WE-LT | Tray | Active | Fabric Over Foam | Rectangle | 0.315" (8.00mm) | 39.370" (1.00m) | 0.079" (2.00mm) | Polyurethane Foam, Rayon Paper | - | - | Non-Conductive Adhesive | -40°C ~ 85°C |
|
3021001RFI FOF GASKET PU ADH |
3 |
|
Технический лист |
WE-LT | Tray | Active | Fabric Over Foam | Rectangle | 0.394" (10.00mm) | 39.370" (1.00m) | 0.039" (1.00mm) | Polyurethane Foam, Rayon Paper | - | - | Non-Conductive Adhesive | -40°C ~ 85°C |
|

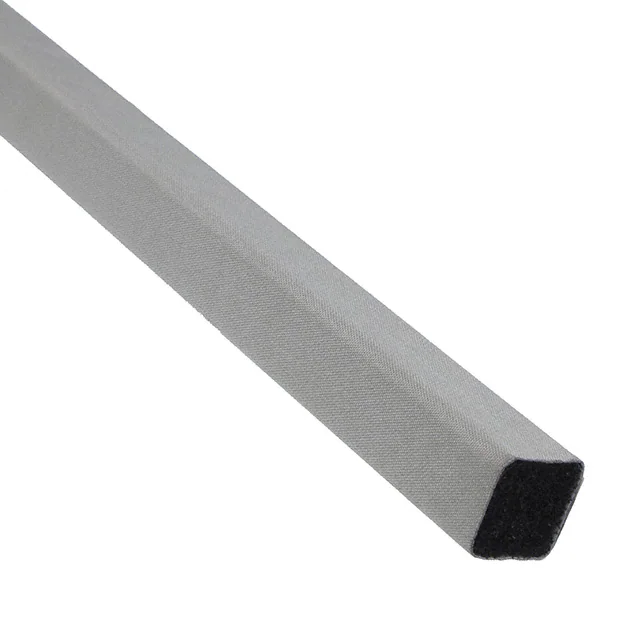

77-12-3150-02400RFI FOF GASKET NI/CU ADH |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Box | Active | Fabric Over Foam | Square | 0.375" (9.53mm) | 24.000" (609.60mm) | 0.375" (9.53mm) | Nickel-Copper over Urethane Foam | - | - | Adhesive | -40°C ~ 70°C |
|
3020505RFI FOF GASKET PU ADH |
0 |
|
Технический лист |
WE-LT | Tray | Active | Fabric Over Foam | Square | 0.197" (5.00mm) | 39.370" (1.00m) | 0.197" (5.00mm) | Polyurethane Foam, Rayon Paper | - | - | Non-Conductive Adhesive | -40°C ~ 85°C |
|
0077005602RFI FINGERSTOCK BECU NICKEL SLOT |
0 |
|
Технический лист |
Variable Slot Mount | Box | Active | Fingerstock | - | 0.320" (8.13mm) | 15.984" (406.00mm) | 0.110" (2.79mm) | Beryllium Copper | Nickel, Tin | 299.99µin (7.62µm) | Slot | 121°C |
|

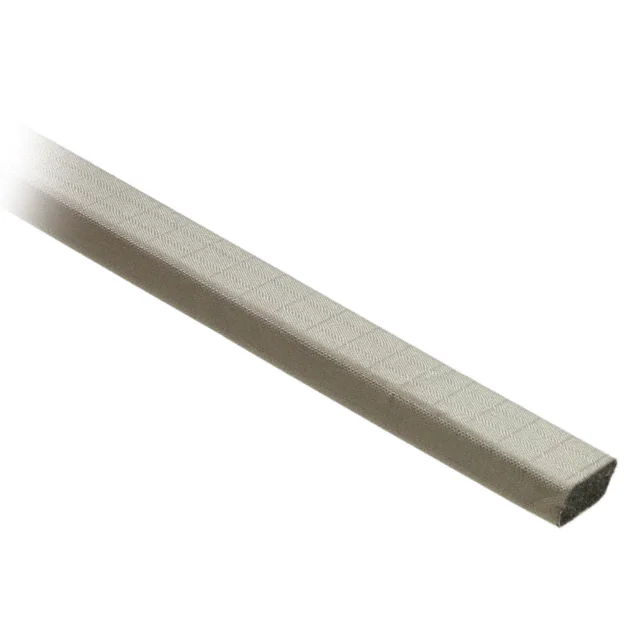

3021005RFI FOF GASKET PU ADH |
5 |
|
Технический лист |
WE-LT | Bag | Active | Fabric Over Foam | Rectangle | 0.394" (10.00mm) | 39.370" (1.00m) | 0.197" (5.00mm) | Polyurethane Foam, Rayon Paper | - | - | Non-Conductive Adhesive | -40°C ~ 85°C |
|
3021010RFI FOF GASKET PU ADH |
0 |
|
Технический лист |
WE-LT | Bulk | Active | Fabric Over Foam | Rectangle | 0.394" (10.00mm) | 39.370" (1.00m) | 0.394" (10.00mm) | Polyurethane Foam, Rayon Paper | - | - | Non-Conductive Adhesive | -40°C ~ 85°C |
|
37-131-1011-02400RFI FOF GASKET NI/CU NICKEL ADH |
0 |
|
Технический лист |
SOFT-SHIELD® 3700 | Bulk | Active | Fabric Over Foam | Rectangle | 0.197" (5.00mm) | 24.000" (609.60mm) | 0.075" (1.91mm) | Nickel-Copper Polyester (NI/CU) | Nickel | - | Adhesive | -40°C ~ 125°C |
|

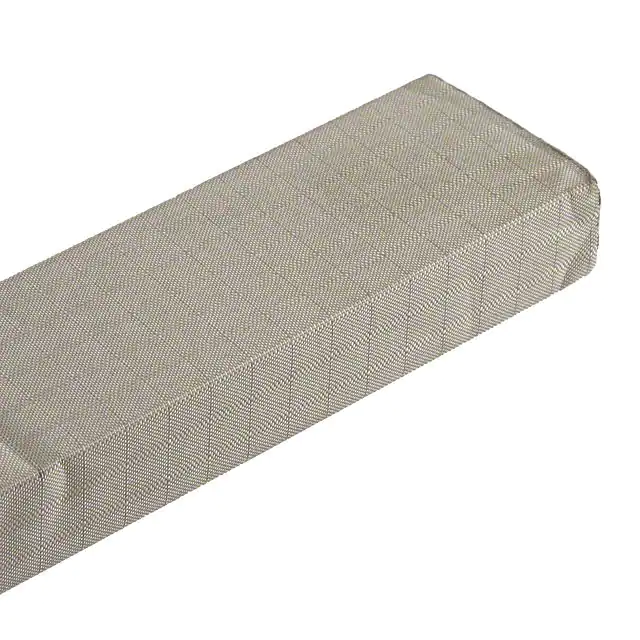

3022010RFI FOF GASKET PU ADH |
0 |
|
Технический лист |
WE-LT | Tray | Active | Fabric Over Foam | Rectangle | 0.787" (20.00mm) | 39.370" (1.00m) | 0.394" (10.00mm) | Polyurethane Foam, Rayon Paper | - | - | Non-Conductive Adhesive | -40°C ~ 85°C |
|
0097097502RFI FINGERSTOCK BECU HARDWARE |
0 |
|
Технический лист |
Longitudinal Grounding | Bulk | Active | Fingerstock | - | 0.800" (20.32mm) | 18.750" (476.25mm) | 0.300" (7.62mm) | Beryllium Copper | - | - | Hardware | 121°C |
|
30213064RFI GASKET PU ADH |
4 |
|
Технический лист |
WE-LT | Bulk | Active | Gasket | Rectangle | 0.500" (12.70mm) | 3.28' (1.00m) | 0.252" (6.40mm) | Polyurethane Foam, Rayon Paper | - | - | Adhesive | -40°C ~ 85°C |
|
0097063602RFI FINGERSTOCK BECU NICKEL CLIP |
0 |
|
Технический лист |
Clip-On Symmetrical | Box | Active | Fingerstock | - | 0.357" (9.07mm) | 16.535" (420.00mm) | 0.174" (4.42mm) | Beryllium Copper | Nickel, Tin | 299.99µin (7.62µm) | Clip | 121°C |
|
0097061302RFI FINGERSTOCK BECU NICKEL CLIP |
0 |
|
Технический лист |
Clip-On | Box | Active | Fingerstock | - | 0.300" (7.62mm) | 15.984" (406.00mm) | 0.100" (2.54mm) | Beryllium Copper | Nickel, Tin | 299.99µin (7.62µm) | Clip | 121°C |
|

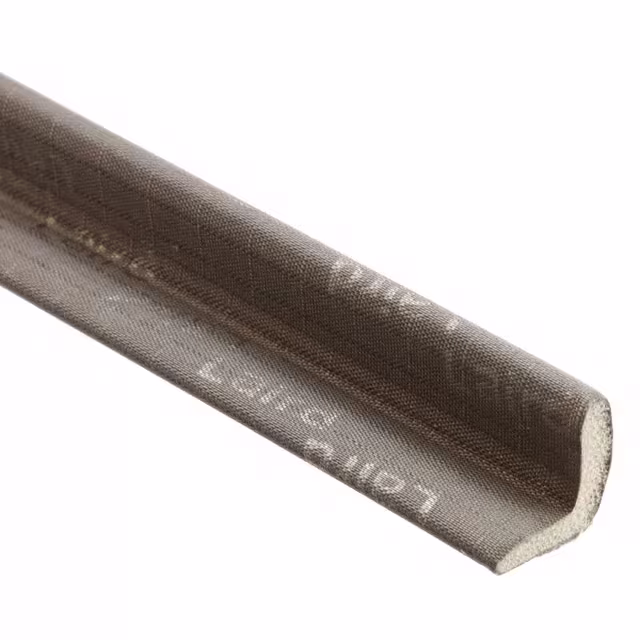

4600PAH1K01800RFI FOF GASKET PU ADH |
0 |
|
Технический лист |
Sculpted Foam UL94 | Bulk | Active | Fabric Over Foam | C-Fold | 0.449" (11.40mm) | 18.000" (457.20mm) | 0.413" (10.50mm) | Polyurethane Foam, Nickel-Copper Taffeta (NI/CU) | - | - | Adhesive | - |
|
0097060502RFI FINGERSTOCK BECU CLIP |
0 |
|
Технический лист |
Clip-On | Box | Active | Fingerstock | - | 0.380" (9.65mm) | 16.000" (406.40mm) | 0.270" (6.86mm) | Beryllium Copper | - | - | Clip | 121°C |
|

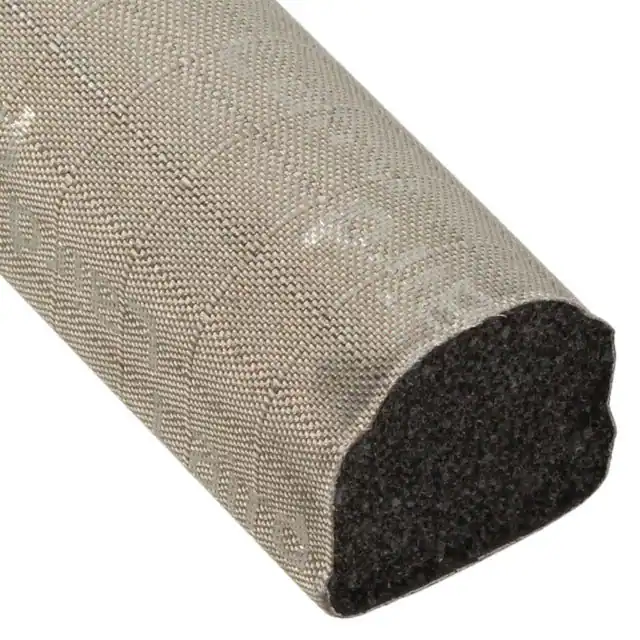

4060PA51G01800RFI FOF GASKET PU ADH |
0 |
|
Технический лист |
51G | Bulk | Active | Fabric Over Foam | D-Shape | 0.500" (12.70mm) | 18.000" (457.20mm) | 0.500" (12.70mm) | Polyurethane Foam, Nickel-Copper Polyester (NI/CU) | - | - | Adhesive | - |
|

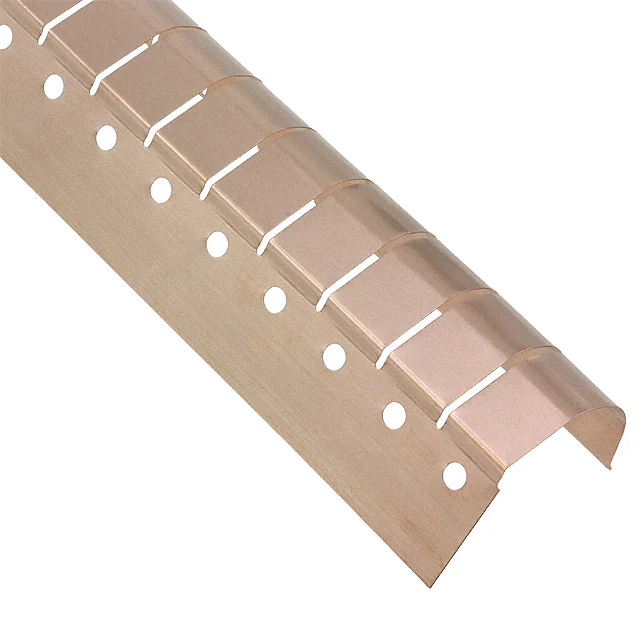

0097053702RFI FINGERSTOCK BECU NICKEL ADH |
0 |
|
Технический лист |
All-Purpose | Bulk | Active | Fingerstock | - | 1.130" (28.70mm) | 12.008" (305.00mm) | 0.410" (10.41mm) | Beryllium Copper | Nickel, Tin | 299.99µin (7.62µm) | Adhesive | 121°C |
|
0097052002RFI FINGERSTOCK BECU NICKEL ADH |
2 |
|
Технический лист |
All-Purpose | Bulk | Active | Fingerstock | - | 0.370" (9.40mm) | 15.984" (406.00mm) | 0.140" (3.56mm) | Beryllium Copper | Nickel, Tin | 299.99µin (7.62µm) | Adhesive | 121°C |
|
|
4694AB51K09600RFI FOF GASKET PU |
0 |
|
Технический лист |
51K | Bulk | Active | Fabric Over Foam | Rectangle | 0.500" (12.70mm) | 96.000" (2.44m) | 0.126" (3.20mm) | Polyurethane Foam, Nickel-Copper Polyester (NI/CU) | - | - | - | - |
|

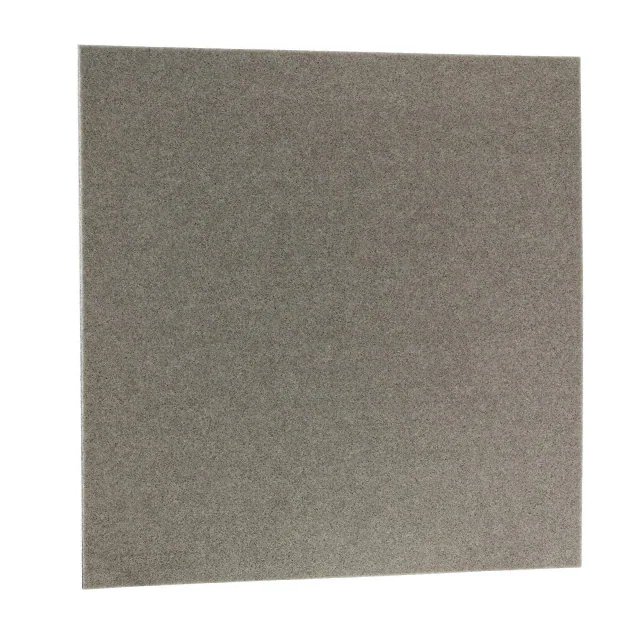

4850-12-1212-0200RFI COND FOAM CU SILVER ADH |
0 |
|
Технический лист |
SOFT-SHIELD® 4850 | Bulk | Active | Conductive Foam | Sheet | 12.000" (304.80mm) | 12.000" (304.80mm) | 0.079" (2.00mm) | Copper | Silver | - | Adhesive | -40°C ~ 70°C |
