RFI и EMI — контакты, напальчники и прокладки
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Форма | Ширина | Длина | Высота | Материал | Покрытие | Покрытие - толщина | Способ крепления | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
77-12-3807-09600SS3500 FOF 0.675X0.58IN 96" |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Box | Active | Fabric Over Foam | C-Fold | 0.580" (14.73mm) | 8.00' (2.44m) | 0.675" (17.15mm) | Nickel-Copper Taffeta (NI/CU) | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-1N-3235-09600SOFT-SHIELD 3500, FOF, 22X9.5MM |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Spool | Active | Fabric Over Foam | Rectangle | 0.866" (22.00mm) | 96.000" (2.44m) | 0.375" (9.53mm) | Nickel-Copper Taffeta over Urethane Foam - Halogen Free | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-1R-3235-09600SOFT-SHIELD 3500, FOF, 22X9.5MM |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Spool | Active | Fabric Over Foam | Rectangle | 0.866" (22.00mm) | 96.000" (2.44m) | 0.375" (9.53mm) | Nickel-Copper Ripstop over Urethane Foam - Halogen Free | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
0097072317RFI FINGERSTOCK BECU SLOT |
0 |
|
Технический лист |
DIN Connector | Bulk | Active | Fingerstock | - | - | - | - | Beryllium Copper | - | - | Slot | 121°C |
|
|
77-1N-3358-09600SOFT-SHIELD 3500, FOF, 10X20MM |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Spool | Active | Fabric Over Foam | Rectangle | 0.394" (10.01mm) | 96.000" (2.44m) | 0.787" (19.99mm) | Nickel-Copper Taffeta over Urethane Foam - Halogen Free | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-1R-3358-09600SOFT-SHIELD 3500, FOF, 10X20MM |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Spool | Active | Fabric Over Foam | Rectangle | 0.394" (10.01mm) | 96.000" (2.44m) | 0.787" (19.99mm) | Nickel-Copper Ripstop over Urethane Foam - Halogen Free | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-1N-3434-09600SOFT-SHIELD 3500, FOF, .05X1.32" |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Spool | Active | Fabric Over Foam | Rectangle | 0.050" (1.27mm) | 96.000" (2.44m) | 1.320" (33.53mm) | Nickel-Copper Taffeta over Urethane Foam - Halogen Free | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-1R-3434-09600SOFT-SHIELD 3500, FOF, .05X1.32" |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Spool | Active | Fabric Over Foam | Rectangle | 0.050" (1.27mm) | 96.000" (2.44m) | 1.320" (33.53mm) | Nickel-Copper Ripstop over Urethane Foam - Halogen Free | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-1J-3346-09600SS3500 FOF 0.472X0.59IN 96" |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Box | Active | Fabric Over Foam | Rectangle | 0.591" (15.00mm) | 8.00' (2.44m) | 0.472" (12.00mm) | Nickel-Copper Polyester (NI/CU) | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-12-3346-09600SS3500 FOF 0.472X0.59IN 96" |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Box | Active | Fabric Over Foam | Rectangle | 0.591" (15.00mm) | 8.00' (2.44m) | 0.472" (12.00mm) | Nickel-Copper Taffeta (NI/CU) | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-1J-3439-09600SS3500 FOF 0.125X1.85IN 96" |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Box | Active | Fabric Over Foam | Rectangle | 1.850" (46.99mm) | 8.00' (2.44m) | 0.125" (3.18mm) | Nickel-Copper Polyester (NI/CU) | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-12-3439-09600SS3500 FOF 0.125X1.85IN 96" |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Box | Active | Fabric Over Foam | Rectangle | 1.850" (46.99mm) | 8.00' (2.44m) | 0.125" (3.18mm) | Nickel-Copper Taffeta (NI/CU) | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-1N-3258-09600SOFT-SHIELD 3500, FOF, 2X35MM |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Spool | Active | Fabric Over Foam | Rectangle | 0.078" (1.98mm) | 96.000" (2.44m) | 1.378" (35.00mm) | Nickel-Copper Taffeta over Urethane Foam - Halogen Free | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-1R-3258-09600SOFT-SHIELD 3500, FOF, 2X35MM |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Spool | Active | Fabric Over Foam | Rectangle | 0.078" (1.98mm) | 96.000" (2.44m) | 1.378" (35.00mm) | Nickel-Copper Ripstop over Urethane Foam - Halogen Free | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-1R-3572-09600SOFT-SHIELD 3500, FOF, 0.25X1" |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Spool | Active | Fabric Over Foam | Rectangle | 0.255" (6.48mm) | 96.000" (2.44m) | 1.000" (25.40mm) | Nickel-Copper Ripstop over Urethane Foam - Halogen Free | Nickel | - | Adhesive | -40°C ~ 70°C |
|
|
77-1N-3572-09600SOFT-SHIELD 3500, FOF, 0.25X1" |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Spool | Active | Fabric Over Foam | Rectangle | 0.255" (6.48mm) | 96.000" (2.44m) | 1.000" (25.40mm) | Nickel-Copper Taffeta over Urethane Foam - Halogen Free | Nickel | - | Adhesive | -40°C ~ 70°C |
|

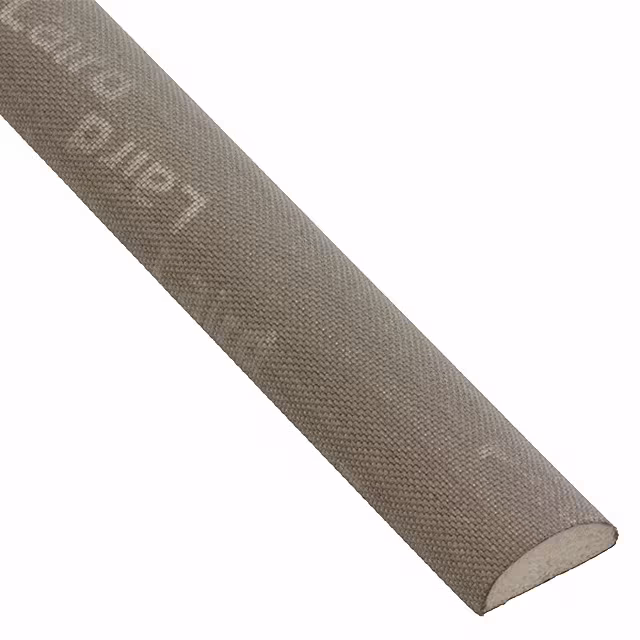

4609PA22101800RFI FOF GASKET ADH |
0 |
|
Технический лист |
221 FOF | Bulk | Active | Fabric Over Foam | D-Shape | 0.402" (10.20mm) | 18.000" (457.20mm) | 0.181" (4.60mm) | - | - | - | Adhesive | - |
|

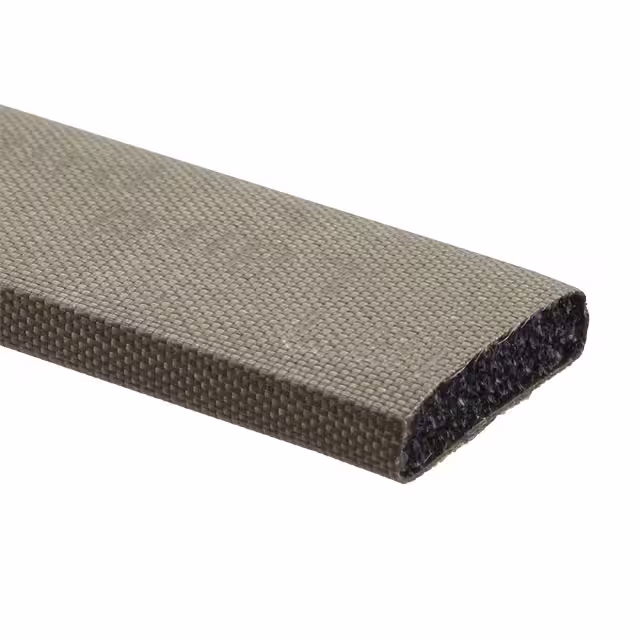

4055PA51H01800RFI FOF GASKET PU ADH |
0 |
|
Технический лист |
51H | Bulk | Active | Fabric Over Foam | Rectangle | 0.315" (8.00mm) | 18.000" (457.20mm) | 0.157" (4.00mm) | Polyurethane Foam, Nickel-Copper Taffeta (NI/CU) | - | - | Adhesive | - |
|
|
4120AB51K01800RFI FOF GASKET PU |
0 |
|
Технический лист |
51K | Bulk | Active | Fabric Over Foam | D-Shape | 0.240" (6.10mm) | 18.000" (457.20mm) | 0.161" (4.10mm) | Polyurethane Foam, Nickel-Copper Polyester (NI/CU) | - | - | - | - |
|
|
77-12-3532-09600SS3500 FOF 0.669X0.5IN 96" |
0 |
|
Технический лист |
SOFT-SHIELD® 3500 | Box | Active | Fabric Over Foam | Rectangle | 0.500" (12.70mm) | 8.00' (2.44m) | 0.669" (17.00mm) | Nickel-Copper Taffeta (NI/CU) | Nickel | - | Adhesive | -40°C ~ 70°C |
