РЧ-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип RF | Топология | Схема | Диапазон частот | Изоляция | Вносимые потери | Тестовая частота | P1dB | IIP3 | Особенности | Импеданс | Напряжение - Питание | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE71S6362IC RF SWITCH SP3T 18GHZ MODULE |
1 |
|
Технический лист |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP3T | DC ~ 18GHz | 80dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 70°C | - | - | - | Module |
|
PE71S500565 dB High Isolation SPDT PIN Di |
1 |
|
Технический лист |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | SPDT | 0Hz ~ 18GHz | 55dB | 3dB | 18GHz | 27dBm | 46dBm | - | - | 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S2009SPDT PIN Diode Switch Operating |
1 |
|
Технический лист |
- | - | Retail Package | Active | General Purpose | Reflective | SPDT | 70MHz ~ 26.5GHz | 30dB (min) | 3.5dB (max) | - | - | - | - | 50Ohm | -5V, 5V | -30°C ~ 60°C | - | - | Chassis Mount | - |
|
|
PE71S6513SP4T Electromechanical Relay Nor |
1 |
|
Технический лист |
- | - | Retail Package | Active | SATCOM | Absorptive | SP4T | 0Hz ~ 26.5GHz | 70dB | 0.5dB | 26.5GHz | - | - | - | 50Ohm | 12V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6334SP4T 0.05 dB Low Insertion Loss |
1 |
|
Технический лист |
- | - | Retail Package | Active | Radar, VSAT | Absorptive | SP4T | 0Hz ~ 40GHz | 60dB (min) | 0.9dB (max) | 40GHz | - | - | - | 50Ohm | 20V ~ 32V | -25°C ~ 75°C | - | - | Chassis Mount | - |
|
|
PE71S6228SP4T PIN Diode Switch Operating |
1 |
|
Технический лист |
- | - | Retail Package | Active | General Purpose | Reflective | SP4T | 500MHz ~ 40GHz | 55dB (min) | 7.5dB | - | - | - | - | 50Ohm | -5V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S2007SPST PIN Diode Switch Operating |
1 |
|
Технический лист |
- | - | Retail Package | Active | General Purpose | Reflective | SPST | 50MHz ~ 26.5GHz | 20dB (Min) | 5dB (max) | - | - | - | - | 50Ohm | -5V, 5V | -30°C ~ 60°C | - | - | Chassis Mount | - |
|
|
PEWGS6048WRD-750 DOUBLE RIDGE WAVEGUIDE S |
1 |
|
Технический лист |
- | - | Retail Package | Active | Radar, VSAT | Reflective | SPDT, DPDT | 7.5GHz ~ 18GHz | 60dB (min) | 0.3dB (max) | - | - | - | - | - | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6047WRD-650 Double Ridge Waveguide S |
1 |
|
Технический лист |
- | - | Retail Package | Active | Radar, VSAT | Reflective | SPDT, DPDT | 6.5GHz ~ 18GHz | 60dB (min) | 0.35dB (max) | - | - | - | - | - | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6044WRD-650 Double Ridge Waveguide S |
1 |
|
Технический лист |
- | - | Retail Package | Active | Radar, VSAT | Reflective | SPDT, DPDT | 6.5GHz ~ 18GHz | 60dB (min) | 0.35dB (max) | - | - | - | - | - | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6217Absorptive SP4T PIN Diode Switch |
1 |
|
Технический лист |
- | - | Retail Package | Active | General Purpose | Absorptive | SP4T | 500MHz ~ 40GHz | 60dB (min) | 8dB (max) | - | - | - | - | 50Ohm | -5V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S2014Absorptive SPDT PIN Diode Switch |
1 |
|
Технический лист |
- | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 70MHz ~ 40GHz | 55dB (min) | 7dB (max) | - | - | - | - | 50Ohm | -5V, 5V | -30°C ~ 60°C | - | - | Chassis Mount | - |
|
|
PE71S1108Reflective SPDT GaN High Power P |
1 |
|
Технический лист |
- | - | Retail Package | Active | VSAT | Reflective | SPDT | 500MHz ~ 6GHz | 38dB | 1.3dB | 6GHz | - | 55dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6055WRD-180 Double Ridge Waveguide S |
1 |
|
Технический лист |
- | - | Retail Package | Active | Radar, VSAT | Reflective | SPDT, DPDT | 18GHz ~ 40GHz | 50dB (min) | 0.4dB (max) | - | - | - | - | - | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6226SPDT PIN Diode Switch Operating |
1 |
|
Технический лист |
- | - | Retail Package | Active | General Purpose | Reflective | SPDT | 500MHz ~ 40GHz | 55dB (min) | 5.5dB | - | - | - | - | 50Ohm | -5V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PEWGS6040WR-34 Waveguide Electromechanica |
1 |
|
Технический лист |
- | - | Retail Package | Active | Radar, VSAT | Reflective | SPDT, DPDT | 22GHz ~ 33GHz | 60dB (min) | 0.15dB (max) | - | - | - | - | - | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|

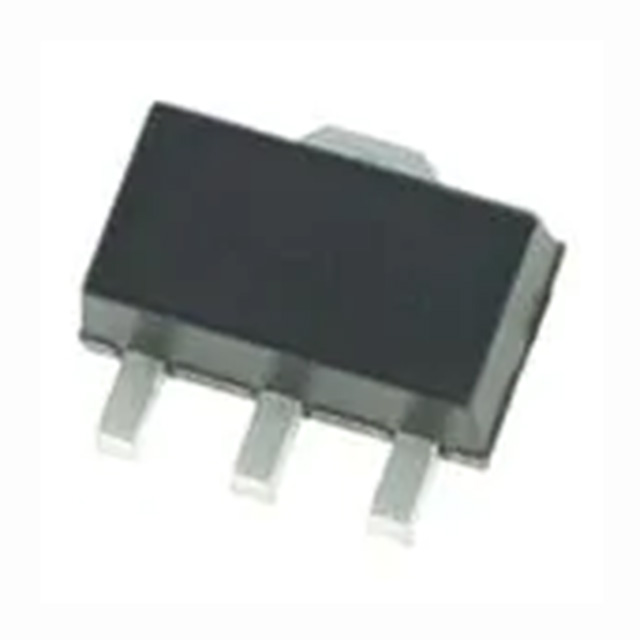

RFSW6062TR7RF Switch ICs 5-6000MHz SP6T Iso 40dB @925MHz |
1,000 |
|
- |
SOT-89-3 | Cut Tape Mouse Reel | Original | Mobile Amplifiers/Cellular Amplifiers | 0 Hz to 500 MHz | 500 MHz | 20.7 dBm | Original | Through Hole |
