РЧ-антенны
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Семейство RF/Стандарт | Группа частот | Частота (центр/полоса) | Диапазон частот | Тип антенны | Количество полос | КСВН | Обратные потери | Усиление | Мощность - макс. | Особенности | Оконечная нагрузка | Защита от проникновения | Марка | Квалификация | Тип крепления | Высота (макс.) | Применение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRFC025-200RF ANT 892MHZ/1.9GHZ FLAT 200MM |
807 |
|
Технический лист |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | 2.2 | -17dB | 5.4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, WCDMA |
|
1461539300WIFI 6E AUTOMOTIVE FLEXIBLE ANT |
7,753 |
|
Технический лист |
- | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 2.2dBi | - | Cable - 300mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
2108857-1PCB ANT, MHF, 50MM, WI-FI, 6E TR |
2,846 |
|
Технический лист |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|
ANT-403-USPRF ANT 403MHZ CHIP SOLDER SMD |
1,998 |
|
Технический лист |
microSplatch™ | Tube | Active | - | UHF (300MHz ~ 1GHz) | 403MHz | 400MHz ~ 406MHz | Chip | 1 | 1.9 | - | -8.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.103" (2.62mm) | MICS |
|
2344654-7WLAN DUAL BAND ANTENNA PCB V 150 |
2,924 |
|
Технический лист |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
RFMTA271200NNAB001RF ANT 2.4GHZ STAMPED MET SLD |
154 |
|
Технический лист |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | -10dB | 3.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
2118909-8WLAN TRIPLE BAND ANT MHF4 CABLE |
2,445 |
|
Технический лист |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.52GHz, 5.5125GHz, 6.525GHz | 2.34GHz ~ 2.7GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 3.3dBi, 3.3dBi, 3.3dBi | - | Cable - 60mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
APAE1575R1340ABDD6-TRF ANT 1.575GHZ CER PATCH PIN |
981 |
|
Технический лист |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.584GHz ~ 1.588GHz | Ceramic Patch | 1 | 1.5 | -15dB | - | - | - | Pin | - | - | - | Adhesive | 0.185" (4.70mm) | GPS |
|

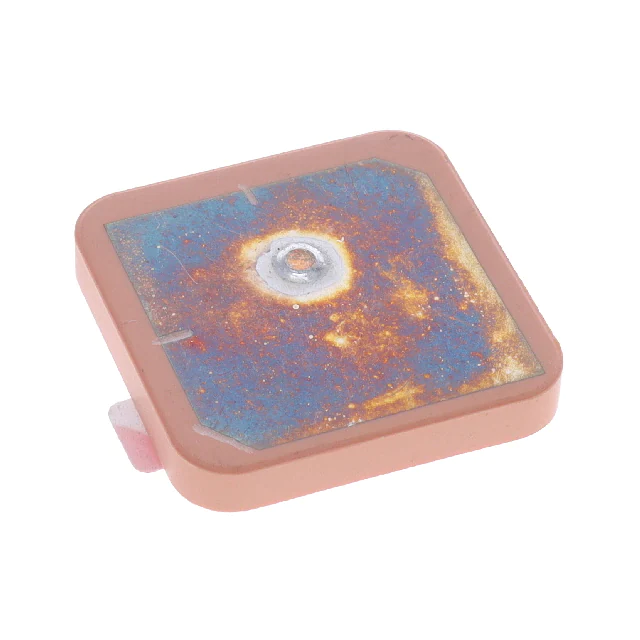

ANT2525B00FT1516SRF ANT 1.59GHZ CER PATCH PIN ADH |
460 |
|
Технический лист |
2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 1 | 2 | - | 4.66dBi, 4.97dBi | 1 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
1513430-2RF ANT 2.4GHZ PCB TRACE SLDR SMD |
4,999 |
|
Технический лист |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | Bluetooth, WLAN, Zigbee™ |
|
|
2108971-6FPC ANT, MHF 4L, 100MM, UWB 3~8. |
2,498 |
|
Технический лист |
- | Bag | Active | Ultra Wide Band | Wide Band | 4.05GHz, 7.2GHz | 3GHz ~ 8.5GHz | Flat Patch | 2 | 1.9, 2.1 | - | 1.4dBi, 3.9dBi | 10 W | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
|
2108971-2FPC ANT, MHF, 100MM, UWB 3~8.5 G |
2,494 |
|
Технический лист |
- | Bag | Active | Ultra Wide Band | Wide Band | 4.05GHz, 7.2GHz | 3GHz ~ 8.5GHz | Flat Patch | 2 | 1.9, 2.4 | - | 1.5dBi, 4.1dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
|
SLDA72-0R900G-31TFMULTILAYER LTCC ANTENNA, 858~928 |
3,997 |
|
Технический лист |
SLDA | Tape & Reel (TR) | Active | Bluetooth | - | 900MHz | - | Chip | 1 | 2 | - | 2.7dBi | 3 W | LNA, Filter | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN |
|
2118909-2WLAN TRIPLE BAND ANT MHF CABLE 2 |
2,760 |
|
Технический лист |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 3.2dBi, 3.2dBi, 3.2dBi | - | Cable - 268.78mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
2118909-4WLAN TRIPLE BAND ANT MHF4 CABLE |
2,621 |
|
Технический лист |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 3.2dBi, 3.2dBi, 3.2dBi | - | Cable - 115.8mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT1818B00FTGNSSSANTENNA PATCH GNSS |
960 |
|
Технический лист |
1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 1 | - | 3dB | -2dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GNSS |
|
RFPCA191515IMAB3G1RF ANT 2.4GHZ PCB TRACE IPEX ADH |
4,240 |
|
Технический лист |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | PCB Trace | 1 | - | - | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | - |
|
|
2108971-4FPC ANT, MHF, 200MM, UWB 3~8.5 G |
2,588 |
|
Технический лист |
- | Bag | Active | Ultra Wide Band | Wide Band | 4.05GHz, 7.2GHz | 3GHz ~ 8.5GHz | Flat Patch | 2 | 1.6, 1.7 | - | 1.1dBi, 3.5dBi | 10 W | Cable - 200mm | MHF | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
|
2108971-8FPC ANT, MHF 4L, 200MM, UWB 3~8. |
2,348 |
|
Технический лист |
- | Bag | Active | Ultra Wide Band | Wide Band | 4.05GHz, 7.2GHz | 3GHz ~ 8.5GHz | Flat Patch | 2 | - | - | - | 10 W | Cable - 200mm | MHF4L | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
ACR1004GCGNSS+GPS(L5) MULTIBAND CHIP ANT |
1,952 |
|
Технический лист |
ACR | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.166GHz ~ 1.186GHz, 1.561GHz ~ 1.61GHz | Chip | 4 | - | -12dB | 1.9dBi, 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
