РЧ-антенны
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Семейство RF/Стандарт | Группа частот | Частота (центр/полоса) | Диапазон частот | Тип антенны | Количество полос | КСВН | Обратные потери | Усиление | Мощность - макс. | Особенности | Оконечная нагрузка | Защита от проникновения | Марка | Квалификация | Тип крепления | Высота (макс.) | Применение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWPR028-7WR-28 Waveguide Probe Antenna Op |
1 |
|
Технический лист |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.5 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 2.800" (71.12mm) | General Purpose |
|
|
PEWAN062-15ELNFWR62 GAIN HRN 12.4-18GHZ 15DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.213" (30.81mm) | General Purpose |
|
|
PEWAN062-15ELSFWR62 GAIN HRN 12.4-18GHZ 15DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.213" (30.81mm) | General Purpose |
|
|
PEWAN062-15SMWR62 GAIN HRN 12.4-18GHZ 15DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.2 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Waveguide Mount | 1.213" (30.81mm) | General Purpose |
|
|
PEWAN062-15SFWR62 GAIN HRN 12.4-18GHZ 15DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.25 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.213" (30.81mm) | General Purpose |
|
|
PEWAN062-15NFWR62 GAIN HRN 12.4-18GHZ 15DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.213" (30.81mm) | General Purpose |
|
|
PEWAN112-20ELSFWR112 GAIN HRN 7.05-10GHZ 20DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 4.071" (103.40mm) | General Purpose |
|
|
PEWAN090-10ELSFWR42 GAIN HRN 8.2-12.4GHZ 10DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.630" (41.40mm) | General Purpose |
|
|
PEWAN051-15ELSFWR51 GAIN HRN 15-22GHZ 15DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | - | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 0.994" (25.25mm) | General Purpose |
|

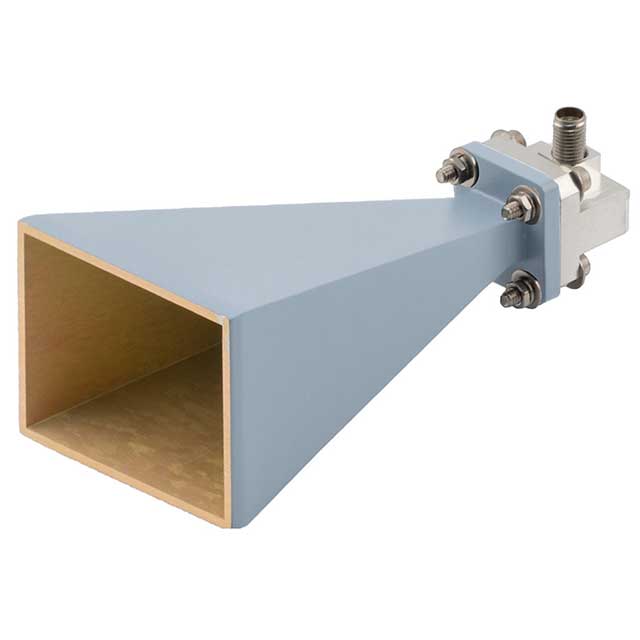

PEWAN034-20KFWR34 GAIN HORN 22-33GHZ 20DBI |
1 |
|
Технический лист |
- | Case | Active | - | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.4 | - | 20dBi | - | - | 2.92mm Female | - | - | - | Waveguide Flange Mount | 4.721" (119.91mm) | - |
|
|
PEWAN042-15KFWR42 GAIN HRN 18-26.5GHZ 15DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 22.2GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 2.92mm Female | - | - | - | Waveguide Mount | 0.942" (23.93mm) | General Purpose |
|
|
PEWAN042-15SFWR42 GAIN HRN 18-26.5GHZ 15DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 22.2GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 0.942" (23.93mm) | General Purpose |
|
|
PE9861B-10-CPRGWR-187 Waveguide Standard Gain H |
1 |
|
Технический лист |
- | Retail Package | Active | General ISM | Wide Band | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 5.280" (134.11mm) | General Purpose |
|
|
PE9860B-20-CPRGWR-159 Waveguide Standard Gain H |
1 |
|
Технический лист |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 15.050" (382.27mm) | General Purpose |
|
|
PEWAN042-20SFWR42 GAIN HRN 18-26.5GHZ 20DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 22.2GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.524" (38.70mm) | General Purpose |
|
|
PEWAN051-20ELSFWR51 GAIN HRN 15-22GHZ 20DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | - | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.850" (47.00mm) | General Purpose |
|
|
PE9859B-20-CPRGWR-137 Waveguide Standard Gain H |
1 |
|
Технический лист |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 12.060" (306.32mm) | General Purpose |
|
PEWAN229-20NFWR229 GAIN HRN 3.3-4.9GHZ 20DBI |
1 |
|
Технический лист |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 25.369" (644.37mm) | - |
|
|
PEWAN042-15ELKFWR42 GAIN HRN 18-26.5GHZ 15DBI |
1 |
|
Технический лист |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 22.2GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 2.92mm Female | - | - | - | Waveguide Mount | 0.942" (23.93mm) | General Purpose |
|
|
PE1WAN034-10WR-34 Waveguide Antenna, 22 GHz |
1 |
|
Технический лист |
- | Retail Package | Active | General ISM | Wide Band | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.23 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Connector | - | - | - | Bracket Mount | 2.756" (70.00mm) | General Purpose |
