РЧ-антенны
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Семейство RF/Стандарт | Группа частот | Частота (центр/полоса) | Диапазон частот | Тип антенны | Количество полос | КСВН | Обратные потери | Усиление | Мощность - макс. | Особенности | Оконечная нагрузка | Защита от проникновения | Марка | Квалификация | Тип крепления | Высота (макс.) | Применение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APAES915R80C16-TRF ANT 915MHZ CER PATCH PIN ADH |
335 |
|
Технический лист |
APAE | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Ceramic Patch | 1 | 1.3 | -10dB | 5dBic | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | - |
|
ANT-5GW-IPW2-NPRF ANT 5G/4G/LTE WHIP N PLUG |
215 |
|
Технический лист |
IPW | Bag | Active | Cellular | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Whip, Straight | 10 | 8.1, 8.5, 3.9, 2.4, 1.8, 1.7, 1.9, 1.6, 1.8, 2.7 | -2.2dB, -2.1dB, -4.6dB, -7.7dB, -10.9dB, -11.7dB, -10.2dB, -12.7dB, -10.9dB, -6.8dB | 1dBi, 1.5dBi, 1.6dBi, 1.2dBi, 1.6dBi, 1.5dBi, 0.5dBi, 2.4dBi, 2.4dBi, 3.7dBi | 2 W | - | N Type Male | IP67 | - | - | Connector Mount | 5.200" (132.00mm) | 5G, LTE, LTE-M (Cat-M1), NB-IoT |
|
318020612LORA FIBERGLASS ANTENNA, 860-930 |
137 |
|
Технический лист |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 895MHz | 860MHz ~ 930MHz | Whip, Straight | 1 | - | - | 6.8dBi | 2 W | - | N Type Female | - | - | - | Bracket Mount | 23.622" (600.00mm) | LoRa |
|
PX0407RF ANT 2.4GHZ-2.5GHZ WHIP STR |
130 |
|
Технический лист |
Buccaneer® 400 | Bulk | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | - | - | - | SMB | IP68, IP69K | - | - | Screw | 3.602" (91.50mm) | Bluetooth |
|
GGSFTP.50.7.A.08GPS L1,L2 SINGLE FEED STACKED 50 |
922 |
|
Технический лист |
- | Tray | Not For New Designs | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.588GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 2 | - | -10dB | 2.6dBi, 4.6dBi | - | - | Pin | - | - | - | Adhesive | 0.276" (7.00mm) | Galileo, GLONASS, GPS |
|
WM.95.A.305111CYCLOPS 915MHZ WALL MOUNT FLEXIB |
146 |
|
Технический лист |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | - | -10dB | 3.11dBi | 10 W | Cable - 3m | SMA Male | IP65 | - | - | Bracket Mount | 11.102" (282.00mm) | ISM |
|
NMOWBQCSTAINLESS SPRING BASE / WHIP, UN |
182 |
|
Технический лист |
- | Bag | Active | - | VHF (f < 300MHz) | 160MHz | 150MHz ~ 170MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 20.000" (508.00mm) | - |
|
ANT-GNCP-C25L12100RF ANT GNSS GPS L1L2 25X25 LNA |
134 |
|
Технический лист |
GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.202GHz, 1.227GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.197GHz ~ 1.25GHz, 1.559GHz ~ 1.606GHz | Ceramic Patch | 6 | 2.2, 2.3, 1.4, 1.6, 1.6, 1.4 | -8.4dB, -8dB, -15.1dB, -12.7dB, -12.7dB, -15.4 | 27.9dBi, 28.1dBi, 15.9dBi, 25.9dBi, 27.6dBi, 23.8dBi | - | Cable - 100mm | U.FL | - | - | - | Surface Mount | 0.472" (12.00mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|
APARC2511X-SGL2L5ANTENNA ACTIVE GNSS STACKED PATC |
248 |
|
Технический лист |
APAR | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.2276GHz, 1.575GHz | 1.166GHz ~ 1.186GHz, 1.2286GHz ~ 1.2266GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 3 | 2 | - | -4dBi, -3dBi, -3.5dBi | - | Cable - 100mm, LNA | I-PEX | - | - | - | Surface Mount | 0.488" (12.40mm) | General Purpose |
|
MA310.A.LB.001MAGNET MOUNT GPS/GLONASS-SMA(M) |
151 |
|
Технический лист |
- | Bag | Active | Cellular | Wide Band | 761MHz, 859MHz, 920MHz, 1.57542GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.601GHz ~ 1.603GHz, 1.71GHz ~ 2.69GHz | Dome | 9 | - | -3dB, -10dB | -6.31dBi, -3.54dBi, -3.71dBi, 1dBic, -5.93dBi, -5.51dBi, -5.51dBi, -6.69dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.906" (23.00mm) | CDMA, DCS, EDGE, GSM, GPRS, HSPA, PCS, UMTS, WCDMA |
|
SG1013NF-2450RF ANT 2.4GHZ WHIP STR N FEM |
202 |
|
Технический лист |
SG1013 | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 3dBi | - | - | N Type Female | IP65 | - | - | Connector Mount | - | - |
|
G24.A.305111RF ANT 850MHZ/900MHZ DOME PNL MT |
506 |
|
Технический лист |
Ultima | Bag | Not For New Designs | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 5 | - | - | 2dBi, 1.8dBi, 3.9dBi | 10 W | Cable - 3m | SMA Male | IP67 | - | - | Panel Mount | 0.772" (19.60mm) | CDMA, GPRS, GSM, HSPA |
|
OC69271-FNMANT BROADBAND LTE OMNI |
367 |
|
Технический лист |
- | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 1.85GHz, 2.045GHz, 2.3GHz, 2.595GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.1GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz | Whip, Straight | 5 | 2, 2.5 | - | 1.5dBi, 3.5dBi | 10 W | - | N Type Male | - | - | - | Bracket Mount | 9.764" (248.00mm) | 3G, 4G, GSM, LTE, WiMax™ |
|
TLS.01.1F11RF ANT 829MHZ/1.575GHZ WHIP STR |
538 |
|
Технический лист |
Shockwave | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | - | - | 4dBi | 100 W | - | N Type Male | IP67 | - | - | Base Mount | 3.134" (79.60mm) | GPS, LTE |
|
MB.TG30.A.305111RF ANT 600/6000MHZ WHIP STR MAGN |
500 |
|
Технический лист |
Apex Magforce | Box | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 600MHz ~ 6GHz | Whip, Straight | 8 | - | -5dB, -6dB, -5dB, -10dB, -5dB | -1.92dBi, 2.54dBi, 2.86dBi, 3.47dBi, 2.75dBi, 2.15dBi, 4.33dBi, 3.01dBi | 50 W | Cable - 3m | SMA Male | IP67 | - | - | Magnetic | 7.720" (196.10mm) | CDMA, GPRS, GPS, HSDPA, LTE, UMTS, WCDMA, Wi-Fi |
|
MWU4505SRF ANT 460MHZ WHIP STR NMO MNT |
31 |
|
Технический лист |
MWU | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 440MHz ~ 480MHz | Whip, Straight | 1 | 2 | - | 4.5dBi | 200 W | - | - | - | - | - | NMO Mount | 32.000" (812.80mm) | TETRA/P25 |
|
3917DRF ANT 1.575GHZ MOD SMA MALE MAG |
50 |
|
Технический лист |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Module | 1 | - | - | 3dBic, -2dBic | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.535" (13.60mm) | GNSS, GPS |
|

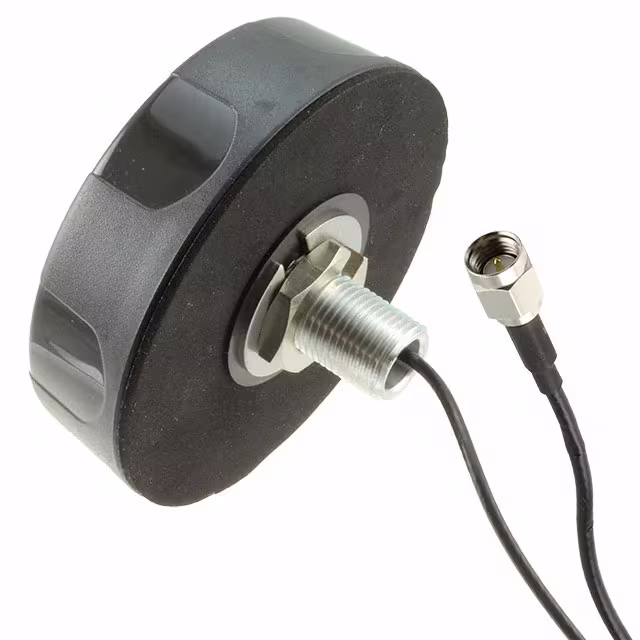

LPS88213NT-61SMAMRF ANT 900MHZ/1.8GHZ MODULE CAB |
118 |
|
Технический лист |
- | Bulk | Active | Cellular | Wide Band | 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 894MHz, 1.71GHz ~ 2.17GHz | Module | 4 | 3 | - | 2.5dBi, 5dBi, 3.9dBi, 3.9dBi | 10 W | Cable - 610mm | SMA Male | IP67 | - | - | Panel Mount | 1.024" (26.00mm) | CDMA, GSM |
|
RO10905NFANTENNA RO 1060-1120 MHZ 5 DBI N |
33 |
|
Технический лист |
Radome Omni | Bag | Active | - | UHF (1GHz ~ 2GHz) | 1.09GHz | 1.06GHz ~ 1.12GHz | Whip, Straight | 1 | 2 | -10dB | 5dBi | 20 W | - | N Type Female | IP67 | - | - | Connector Mount | 27.386" (695.60mm) | - |
|
LMA100.A.BI.001RF ANT 829MHZ/1.9GHZ PANEL SMA |
200 |
|
Технический лист |
- | Box | Active | - | Wide Band | 829MHz, 1.9GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Panel | 3 | - | - | 5.1dBi | - | - | SMA Male | IP67 | - | - | Base Mount | 1.437" (36.50mm) | - |
