РЧ-антенны
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Семейство RF/Стандарт | Группа частот | Частота (центр/полоса) | Диапазон частот | Тип антенны | Количество полос | КСВН | Обратные потери | Усиление | Мощность - макс. | Особенности | Оконечная нагрузка | Защита от проникновения | Марка | Квалификация | Тип крепления | Высота (макс.) | Применение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
33-7972XF-00-3000ANTENNA |
0 |
|
Технический лист |
TW7972XF | Box | Active | General ISM, Navigation | UHF (1GHz ~ 2GHz) | 1.542GHz | 1.525GHz ~ 1.559GHz | Dome | 1 | - | - | 4dBic | - | Cable - 3m, LNA, Filter | Connector | IP67 | - | - | Connector Mount | 0.866" (22.00mm) | Beidou, Galileo, Globalstar, GLONASS, GNSS, GPS, Iridium, QZSS |
|
|
EAN0140YC1350-1454 MHZ, YAGI, 10 DBI 7 EL |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3285.000.00ANT.MUX.M4 HF MULTIPLEXER MODULE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6GK57928DN000AA6SIMATIC NET, IWLAN ANTENNA ANT 7 |
0 |
|
Технический лист |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.55GHz | 2.4GHz ~ 2.7GHz | Module | 1 | 1.5 | - | 14dBi | - | - | N Type Female | IP23 | - | - | Wall Mount | 7.874" (200.00mm) | WLAN |
|
|
HG4958-27EG-5PKANTGRID 4.9-5.8GHZ 27DBI |
0 |
|
- |
HG | Bag | Obsolete | General ISM, WiFi | Wide Band | 5.35GHz | 4.9GHz ~ 5.8GHz | Parabolic Grid | 1 | - | - | 27dBi | - | - | Screw-Mount | - | - | - | Mast Mount | 12.900" (327.66mm) | ISM, UNII, WLAN |
|
|
K5022221-RK5022221-R |
0 |
|
Технический лист |
- | Bulk | Active | - | VHF (f < 300MHz) | 165MHz | 152MHz ~ 178MHz | Module | 1 | 2 | - | - | - | - | N Type Female | IP66 | - | - | Chassis Mount | 8.858" (225.00mm) | General Purpose |
|
|
K5022211-RK5022211-R |
0 |
|
Технический лист |
- | Bulk | Active | - | VHF (f < 300MHz) | 152.5MHz | 143MHz ~ 162MHz | Module | 1 | 2 | - | - | - | - | N Type Female | IP66 | - | - | Chassis Mount | 8.858" (225.00mm) | General Purpose |
|

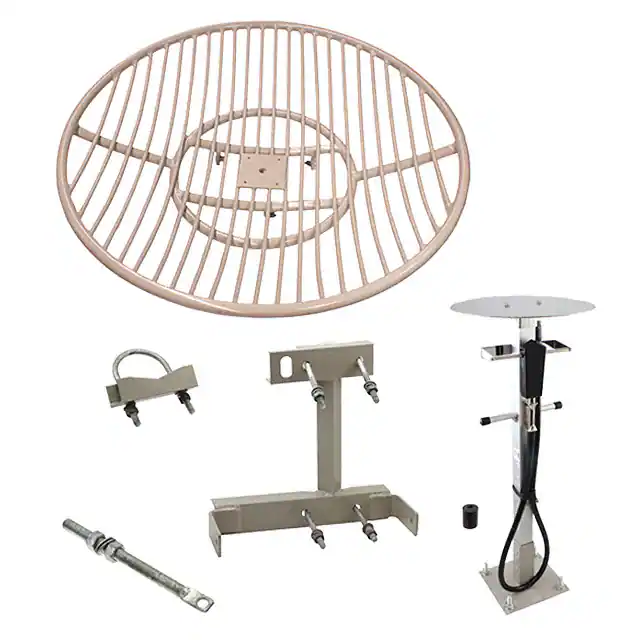

GD9-18RF ANT 914MHZ GRID N FEM BRK 10" |
0 |
|
Технический лист |
- | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Parabolic Grid | 1 | 1.5 | - | 18dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | - | WiMax™ |
|
|
HG4958-22EG-5PKANTGRID 4.9-5.8GHZ 22DBI |
0 |
|
- |
HG | Bag | Obsolete | General ISM, WiFi | Wide Band | 5.35GHz | 4.9GHz ~ 5.8GHz | Parabolic Grid | 1 | - | - | 22dBi | - | - | Screw-Mount | - | - | - | Mast Mount | 10.000" (254.00mm) | ISM, WLAN |
|
|
FMWAN102-20WG ANTENNA WR-102 7-11 GHZ |
0 |
|
Технический лист |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Waveguide Mount | 3.700" (93.98mm) | General Purpose |
|
|
HG4971DP-30DC-NF4950 MHZ TO 7125 MHZ, 2-FOOT COL |
0 |
|
- |
HG | Bag | Active | Cellular, WiFi | Wide Band | 5.025GHz, 5.5GHz, 6.512GHz | 4.95GHz ~ 5.1GHz, 5.1GHz ~ 5.9GHz, 5.9GHz ~ 7.125GHz | Parabolic Grid | 3 | 2, 2.5 | - | 29dBi, 30dBi, 31dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (2) | - | - | - | Mast Mount | 8.150" (207.00mm) | 5G, Wi-Fi |
|
70422206 ELEMENT YAGI 208-232MHZ |
0 |
|
Технический лист |
- | Box | Active | - | VHF (f < 300MHz) | 220MHz | 215MHz ~ 225MHz | Yagi, 6-Element | 1 | 1.5 | - | 8.5dBd | 150 W | Cable - 3m | N Type Female | - | - | - | Bracket Mount | 149.606" (380.00cm) | - |
|
1330FWRF ANT 1.575GHZ DOME TNC FEM TH |
0 |
|
Технический лист |
1330FW | Box | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 4.5dBic | - | - | TNC Female | - | - | - | Through Hole | 6.500" (165.10mm) | GPS |
|
ANT-MA741ABI001RF ANT 829MHZ/1.94GHZ DOME SMA |
0 |
|
Технический лист |
Pantheon | Bulk | Obsolete | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz, 3.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz | Dome | 4 | - | -7dB | 3.2dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | CDMA, HSPA, GPRS, GSM, LTE, UMTS |
|
|
FMANOM1094FAKRA JACK 7-IN-1 CELLULAR, WI-F |
0 |
|
Технический лист |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 788.5MHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Dome | 5 | 2 | - | 4dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.18m | Fakra Female | IP69K | - | - | Panel Mount | 3.150" (80.01mm) | 4G/5G, GPS, Wi-Fi |
|
|
FMANOM1095FAKRA JACK 7-IN-1 CELLULAR, WI-F |
0 |
|
- |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 788.5MHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Dome | 5 | 2 | - | 4dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.18m | Fakra Female | IP69K | - | - | Panel Mount | 3.150" (80.01mm) | 4G/5G, GPS, Wi-Fi |
|
|
LCANOM10944 CELLULAR, 2 WI-FI, 1 GPS COMBI |
0 |
|
Технический лист |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.182m, LNA | Fakra | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
LCANOM10954 CELLULAR, 2 WI-FI, 1 GPS COMBI |
0 |
|
Технический лист |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 7dBi, 5dBi, 8dBi | 10 W | Cable - 5.182m, LNA | Fakra | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
LCANOM11354 CELLULAR, 2 WI-FI, 1 GPS COMBI |
0 |
|
Технический лист |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 7dBi, 5dBi, 8dBi | 10 W | Cable - 5.182m, LNA | N Type Male (4), RP-SMA Male (2), TNC Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
LCANOM11154 CELLULAR, 2 WI-FI, 1 GPS COMBI |
0 |
|
Технический лист |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 7dBi, 5dBi, 8dBi | 10 W | Cable - 5.182m, LNA | N Type Male (4), RP-SMA Male (2), SMA Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
