РЧ-антенны
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Семейство RF/Стандарт | Группа частот | Частота (центр/полоса) | Диапазон частот | Тип антенны | Количество полос | КСВН | Обратные потери | Усиление | Мощность - макс. | Особенности | Оконечная нагрузка | Защита от проникновения | Марка | Квалификация | Тип крепления | Высота (макс.) | Применение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-5GWWS4-SMARF ANT 617MHZ-5GHZ 5G TILT SMA |
734 |
|
Технический лист |
5GW | Bag | Active | Cellular | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Blade, Tilt | 9 | 4.3, 3.9, 4.7, 3.2, 3.2, 2.5, 3.6, 3.5. 3.3, 3 | -4.1dB, -4.6dB, -3.8dB, -5.6dB, -5.6dB, -7.4dB, -5dB, -5.1dB, -5.4dB, -6dB | 1.7dBi, 2.8dBi, 2.7dBi, 4.4dBi, 4.1dBi, 3.4dBi, 4.9dBi, 4.8dBi, 4.9dBi, 5.2dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 6.900" (175.26mm) | 4G, 5G, Cat-M1, CBRS, C-Band, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS |
|
APAM1568YE15V2.0RF ANT 1.575GHZ CER PATCH CAB |
894 |
|
Технический лист |
APAM | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.578GHz | Ceramic Patch | 1 | 1.5 | - | 1.5dBic | - | Cable - 36mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.268" (6.80mm) | GPS |
|
ANT-19036EB56RF ANT, ISM-868MHZ, OMNI-DIRECTI |
234 |
|
Технический лист |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Tilt | 1 | 1.17 | -22.05dB | 1.51dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 4.291" (109.00mm) | ISM |
|

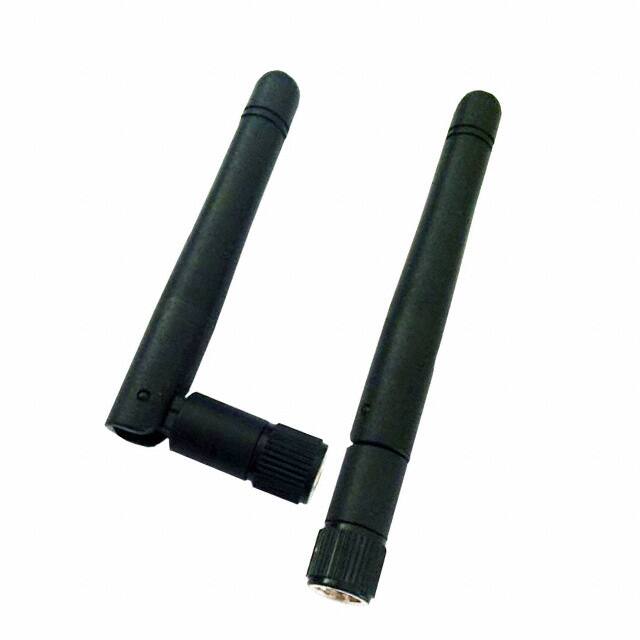

APAMS-121RF ANT 2.45GHZ/5.5GHZ WHIP TILT |
1,489 |
|
Технический лист |
APAMS | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5GHz ~ 6GHz | Whip, Tilt | 2 | 2.5 | - | 2.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.386" (86.00mm) | - |
|
1005392F0-AA10L06005G/4G & DUAL-BAND WI-FI FPC EMBE |
5,845 |
|
Технический лист |
- | Bulk | Active | WiFi | Wide Band | - | 617MHz ~ 960MHz, 1.4GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 5GHz, 4.9GHz ~ 5.85GHz | Flat Patch | 2 | - | - | - | - | Cable - 600mm | U.FL | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, 5G, Wi-Fi |
|
ANT-W63RPC1-MHF4-100RF ANT WIFI 6GHZ FLEX MHF4 100MM |
3,180 |
|
Технический лист |
W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
FXP831.09.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
391 |
|
- |
Freedom | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 2.5 | - | 3dBi, 5.5dBi | 2 W | - | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN |
|
SRFL029-100RF ANT 748MHZ/892MHZ FLAT PATCH |
10,599 |
|
Технический лист |
Moseni | Bulk | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 5 | 1.7 | -8dB | 3.8dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, LTE, W-CDMA |
|
|
1000424ON GROUND STAMPED METAL DUAL BAN |
4,362 |
|
Технический лист |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.36GHz | 2.4GHz ~ 2.49GHz, 4.9GHz ~ 5.8GHz | Module | 2 | 2.5 | - | 0.6dBi, 4.5dBi | 2 W | Cable - 100mm | - | - | - | - | Surface Mount | 0.278" (7.07mm) | 802.11a/b/g/n/c, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
TG.31.81135G/4G TERMINAL MOUNT |
355 |
|
Технический лист |
- | Bag | Active | Cellular, Navigation | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 8 | - | - | -1.9dBi, 1.2dBi, 0.8dBi, -1.2dBi, 4.6dBi, 4.2dBi, 3.2dBi, 4.4dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 8.295" (210.70mm) | 2G, 3G, 4G, 5G, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
FXUB66.54.0150CMAXIMUS ULTRA WIDE BAND FLEX ANT |
213 |
|
Технический лист |
Maximus | Bulk | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 780MHz, 1.4125GHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.6GHz, 3.55GHz, 5.4GHz | 600MHz ~ 960MHz, 1.39GHz ~ 1.435GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.8GHz ~ 6GHz | Flat Patch | 9 | 1.1, 2, 2.2, 3, 3.5 | -5dB, -5.5dB, -6dB, -7dB, -10dB, -20dB | 0.2dBi, 2.5dBi, 4.1dBi, 2dBi, 1.6dBi, 2.8dBi, 2.6dBi, 3.5dBi, 4.8dBi | 5 W | Cable - 150mm | I-PEX MHF4L | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, GNSS, ISM, Wi-Fi |
|
2042870100RF ANT 433MHZ FLAT PATCH U.FL |
158 |
|
Технический лист |
204287 | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Flat Patch | 1 | - | -10dB | 0.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.098" (2.50mm) | ISM |
|
|
ANT-W63-CW-RCS-RPSWIFI6/6E/7 COMPACT RIGHT ANGLE W |
568 |
|
Технический лист |
CW-RCS | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Right Angle | 3 | 2.2, 2.7 | - | 7.7dBi, 5.4dBi, 6dBi | 5 W | - | RP-SMA Female | - | - | - | Connector Mount | 2.126" (54.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W50292.4-2.5 / 5.15-5.925 GHZ STICK A |
798 |
|
Технический лист |
External Antenna | Bulk | Active | 802.15.4, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.538GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Whip, Right Angle | 2 | - | -10dB, -4dB | 1.8dBi, 2.55dBi | 1 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 3.071" (78.00mm) | DSRC, WLAN, Zigbee™ |
|
W3907BD0100ANTENNA 0.698-3.6GHZ I-PEXMHF4 |
220 |
|
Технический лист |
GEMINI | Bag | Active | Cellular | Wide Band | 2.15GHz | 698MHz ~ 3.6GHz | Flat Patch | 6 | - | -7.5dB | 4.2dBi | 3 W | Cable - 100mm | I-PEX MHF4 | - | - | - | Surface Mount | - | 2G, 3G, 4G, LTE |
|
W1902RF ANT 850MHZ/900MHZ WHIP RA |
2,701 |
|
Технический лист |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.949" (49.50mm) | GSM, WCDMA |
|
ANT-916-CW-RCS-SMA915MHZ CCOMPACT RIGHT ANGLE WHIP |
400 |
|
Технический лист |
CW-RCS | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Whip, Right Angle | 1 | 2 | - | 4.8dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 2.126" (54.00mm) | ISM, LoRaWAN, LPWA |
|
|
W1698-MANT EXT ISM868/915/2.4 SMA |
443 |
|
Технический лист |
Stubby Antenna | Tray | Active | Bluetooth, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 915MHz, 2.45GHz | 868MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Whip, Straight | 3 | 3 | - | 0.3dBi, 1.2dBi | 5 W | - | SMA | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | Bluetooth, LoRa, Sigfox, Wi-Fi |
|
W1076ANT EXT 430-435MHZ SMA MALE |
668 |
|
Технический лист |
Stick Antenna | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 435MHz | Whip, Tilt | 1 | 1.5 | - | -4dBi | 5 W | - | SMA Male | IP40 | - | - | Connector Mount | 4.252" (108.00mm) | ISM |
|

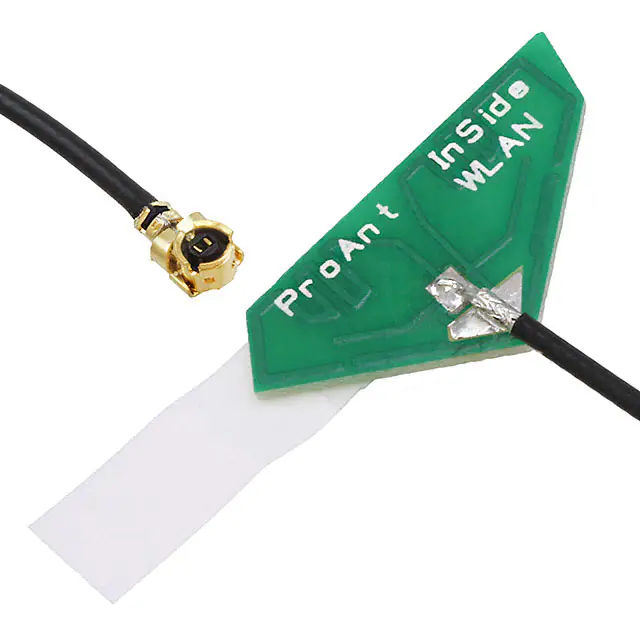

PRO-IS-299RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
260 |
|
Технический лист |
Embedded Antenna | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
