РЧ-антенны
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Семейство RF/Стандарт | Группа частот | Частота (центр/полоса) | Диапазон частот | Тип антенны | Количество полос | КСВН | Обратные потери | Усиление | Мощность - макс. | Особенности | Оконечная нагрузка | Защита от проникновения | Марка | Квалификация | Тип крепления | Высота (макс.) | Применение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FPMI2458-VP6RPSMARF ANT 2.45GHZ PANEL RP-SMA MALE |
23 |
|
Технический лист |
VenU® FPMI2458-VP6RPSMA | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Panel | 2 | 2, 2.5 | - | 8.5dBi, 6dBi | 25 W | Cable - 690.6mm | RP-SMA Male | IP67 | - | - | Pole Mount, Wall Mount | 1.969" (50.00mm) | Bluetooth, Wi-Fi |
|
PE51GPS1005Multi Band 43dBi Timing GPS/GLNS |
3 |
|
Технический лист |
- | Retail Package | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.39GHz | 1.17GHz ~ 1.61GHz | Module | 1 | 1.8 | - | 43dBi | - | - | N Type Female | IP67 | - | - | Bracket Mount | 3.000" (76.20mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
P2409HVP2437 MHZ DIRECTIONAL ANTENNA |
14 |
|
Технический лист |
- | Box | Active | - | - | 2.4375GHz | 2.375GHz ~ 2.5GHz | - | 1 | 1.5 | - | 9dBi | 200 W | - | N Type Female | - | - | - | Mast Mount | - | - |
|
|
M9HCT-A-SMA/100-00174-01Helical Multi-Frequency Active A |
14 |
|
Технический лист |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.211GHz, 1.549GHz, 1.582GHz | 1.164GHz ~ 1.189GHz, 1.192GHz ~ 1.231GHz, 1.539GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz | Whip, Straight | 4 | 1, 2 | - | 0.5dBi, 1.1dBi, 0.5dBi, 1.5dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.008" (51.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
220-6HHEAVY DUTY YAGI 220 MHZ ANTENNA |
20 |
|
Технический лист |
- | Box | Active | - | VHF (f < 300MHz) | 220MHz | 215MHz ~ 225MHz | Yagi, 6-Element | 1 | 1.2 | - | 9dBi | 150 W | Cable - 457mm | N Type Female | - | - | - | Rear Mount | - | - |
|
1-2823595-1RF ANT 829MHZ DOME SMA MALE PAN |
0 |
|
Технический лист |
- | Bulk | Obsolete | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz | Dome | 1 | - | - | - | - | - | SMA Male | - | - | - | Panel Mount | 2.441" (62.00mm) | GPS, GSM, LTE, Wi-Fi, WiMax |
|
|
1-2823595-2RF ANT 829MHZ/2.2GHZ DOME SMA ML |
0 |
|
Технический лист |
- | Bulk | Obsolete | Cellular, Navigation, WiFi | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Dome | 2 | 2.5 | - | 5dBi | 50 W | - | SMA Male | - | - | - | Panel Mount | 2.441" (62.00mm) | GPS, LTE, WLAN |
|
2332157-3MULTI FUNCTION MIMO ANTENNA 2G/3 |
0 |
|
Технический лист |
- | Bulk | Obsolete | Cellular, Navigation | Wide Band | 829MHz, 1.587GHz, 1.94GHz, 2.4GHz, 3.15GHz, 5.45GHz | 698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Dome | 6 | 2 | - | 2dBi, 4dBi, 5dBi, 6dBi | 25 W | Cable - 300mm, LNA | FME, SMA | IP66 | - | - | Panel Mount | 1.969" (50.00mm) | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN |
|
915-15HNM-MKHEAVY DUTY YAGI 915 MHZ MOUNTKIT |
13 |
|
Технический лист |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | Yagi, 15-Element | 1 | 1.2 | - | 13dBi | 50 W | Cable - 300mm | N Type Male | - | - | - | - | - | - |
|
|
M1227HCT-TNC-G/100-00133-02L1/L2 GPS GLONASS ACTIVE ANTENNA |
4 |
|
Технический лист |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.583GHz | 1.559GHz ~ 1.607GHz | Whip, Straight | 1 | - | - | 0.5dBi | - | - | Connector | IP67 | - | - | Connector Mount | 1.362" (34.60mm) | GPS |
|

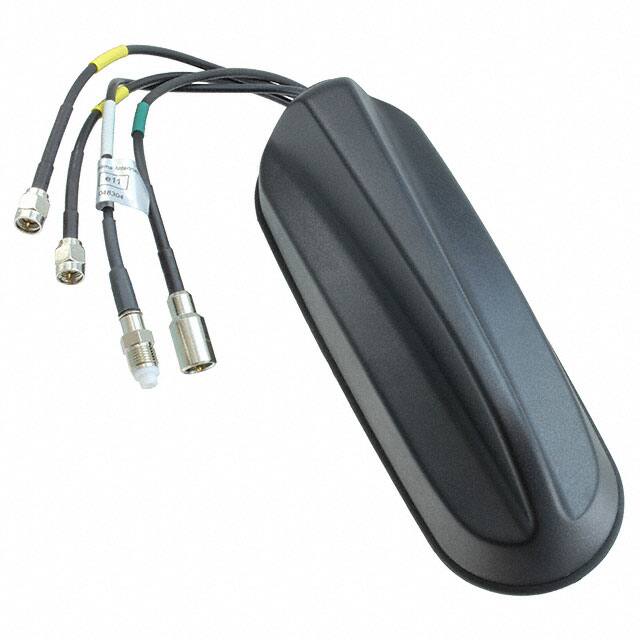

1-2823602-2RF ANT 829MHZ/2.7GHZ MODULE CAB |
0 |
|
Технический лист |
- | Bulk | Obsolete | - | Wide Band | 829MHz, 2.7GHz | 698MHz ~ 960MHz, 1.612GHz ~ 3.8GHz | Module | 2 | 2 | - | 5dBi | 60 W | Cable - 300mm, LNA | FME Female (1), FME Male (1), SMA Male (2) | - | - | - | Panel Mount | 2.008" (51.00mm) | - |
|
NP915GIWRATM18I915 MHZ GROUND IND SLOT OMNI |
20 |
|
Технический лист |
- | Box | Active | - | - | 925MHz | 890MHz ~ 960MHz | - | 1 | 1.5 | - | 2.5dBi | 50 W | Cable - 457.2mm | TNC Male | - | - | - | Adhesive | - | - |
|
|
P2406MK2437 MHZ DIR ANT MOUNTKIT |
15 |
|
Технический лист |
- | Box | Active | - | - | 2.4375GHz | 2.375GHz ~ 2.5GHz | - | 1 | 1.5 | - | 6dBi | 200 W | - | N Type Female | - | - | - | - | - | - |
|
V418418 MHZ OMNI ANTENNA |
20 |
|
Технический лист |
- | Box | Active | - | - | 418MHz | 406MHZ ~ 430MHz | - | 1 | 1.2 | - | - | 50 W | Cable - 300mm | N Type Female | - | - | - | Pole Mount | - | - |
|
|
OD12-2400MOD2-BLKHi-Vib OD WiFi 12dBi Mining, |
14 |
|
Технический лист |
OD | Bulk | Active | WiFi | - | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 12dBi | 100 W | - | N Type Female | IPX5 | - | - | Pole, Wall Mount | 41.000" (104.00cm) | Wi-Fi Mining, Rugged/Heavy Duty, High Power |
|
VG24502450 MHZ OMNI ANTENNA |
15 |
|
Технический лист |
- | Box | Active | - | - | 2.45GHz | 2.4GHz ~ 2.5GHz | - | 1 | 1.2 | - | - | 30 W | Cable - 300mm | N Type Female | - | - | - | Mast Mount | - | - |
|
1-2823598-1RF ANT 829MHZ/2.2GHZ DOME SMA ML |
0 |
|
Технический лист |
- | Bulk | Obsolete | Cellular, WiFi | Wide Band | 829MHz, 2.2GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Dome | 3 | 2.5 | - | 5dBi | 50 W | - | SMA Male | IP66 | - | - | Panel Mount | 2.441" (62.00mm) | LTE, WLAN |
|
|
1-2823598-2RF ANT 829MHZ/2.2GHZ DOME SMA ML |
0 |
|
Технический лист |
- | Bulk | Obsolete | Cellular, WiFi | Wide Band | 829MHz, 2.2GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Dome | 3 | 2.5 | - | 5dBi | 50 W | - | SMA Male | IP66 | - | - | Panel Mount | 2.441" (62.00mm) | LTE, WLAN |
|
PA2430TSETM12I2430 MHZ DIR PATCH ANTENNA |
10 |
|
Технический лист |
- | Box | Active | - | - | 2.43GHz | 2.4GHz ~ 2.46GHz | - | 1 | 2 | - | 5dBi | 10 W | Cable - 50.8mm | TNC Male | - | - | - | Adhesive | - | - |
|
|
VG13701370 MHZ OMNI ANTENNA |
15 |
|
Технический лист |
- | Box | Active | - | - | 1.37GHz | 1.35GHz ~ 1.39GHz | - | 1 | 1.2 | - | - | 50 W | Cable - 304.8mm | N Type Male | - | - | - | Pole Mount | - | - |
