РЧ-антенны
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Семейство RF/Стандарт | Группа частот | Частота (центр/полоса) | Диапазон частот | Тип антенны | Количество полос | КСВН | Обратные потери | Усиление | Мощность - макс. | Особенности | Оконечная нагрузка | Защита от проникновения | Марка | Квалификация | Тип крепления | Высота (макс.) | Применение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AN050201-01C-180-MHF1RF ANT 433MHZ/868MHZ/5.8GHZ PCB |
108 |
|
Технический лист |
AN050201 | Bulk | Active | General ISM, Lora | UHF (300MHz ~ 1GHz), SHF (f > 4GHz) | 433.92MHz, 866.5MHz, 5.5375GHz | 433.05MHz ~ 434.79MHz, 863MHz ~ 870MHz, 5.15GHz ~ 5.925GHz | PCB Trace | 3 | 1.79, 2.1, 2.62 | -11dB, -9dB, -7dB | -1dBi, 0.6dBi, 3.8dBi | 10 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | IoT, ISM, LP-WAN, RFID, Smart Meters, WiFi 5 |
|
SZK-C-0G04GNSS ANT FLAT PATCH IPEX |
890 |
|
Технический лист |
ZETA | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.610GHz | Flat Patch | 1 | 1.65 | -12dB | 2dBi | - | - | U.FL (UMCC), I-PEX MHF6 | - | - | - | Adhesive | 0.008" (0.20mm) | Beidou, Galileo, GLONASS, GPS |
|
|
TBF-H035MP3B-W012ANT WIFI 7 FPC 120MM CABLE MHF1 |
1,999 |
|
Технический лист |
H035 | Bulk | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2.2, 2.1, 2.7 | -8.5dB, -9dB, -6.8 | 2.4dBi, 4.4dBi, 7.1dBi | 1 W | Cable - 120mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
|
TBF-V035MP3B-W012ANT WIFI 7 FPC 120MM CABLE MHF1 |
1,998 |
|
Технический лист |
V035 | Bulk | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 1.8, 1.7, 2.5 | -10.9dB, -11.7dB, -7.4dB | 2.3dBi, 4.6dBi, 7.3dBi | 1 W | Cable - 120mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
APAKM2507S-SGL5RF ANT GPS L1+L5 STACK CER PATCH |
0 |
|
Технический лист |
APAK | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | 1.175GHz ~ 1.177GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | - | -20dB | -3dBi, 4dBi | - | - | Solder | - | - | - | Through Hole | 0.295" (7.50mm) | GNSS, GPS |
|

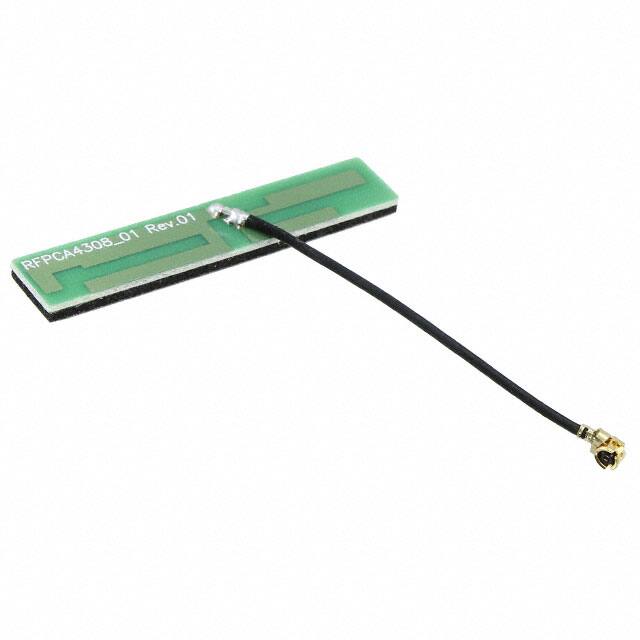

RFPCA430805IMLB301RF ANT 2.4GHZ/5.2GHZ PCB TRACE |
919 |
|
- |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.2GHz, 5.8GHz | - | PCB Trace | 3 | - | - | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | - |
|
|
AN110506-01C-160-MHF1RF ANT ISM WiFi2.4/5 CBRS LTE 5G |
118 |
|
Технический лист |
AN110506 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 859.5MHz, 2.3975GHz, 5.5375GHz | 791MHz ~ 928MHz, 2.3GHz ~ 2.495GHz, 5.15GHz ~ 5.925GHz | PCB Trace | 3 | 2.32, 2.62, 3.01 | -6dB, -7dB, -8dB | 1dBi, 2.6dBi, 4dBi | 10 W | Cable - 160mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.031" (0.80mm) | 5G, Bluetooth, ISM, LP-WAN, RFID, Smart Meters, WiFi |
|
|
SZK-C-3L32-050-014G LTE ANT FLAT PATCH IPEX |
495 |
|
Технический лист |
PETRA2 | Tape & Box (TB) | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.35GHz, 2.595GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 5 | 3.2, 2, 2, 1.5, 2.7 | -6dB, -9dB, -10dB, -15dB, -8dB | 2.9dBi, 3.8dBi, 4.15dBi, 3.45dBi, 2.6dBi | 5 W | Cable - 50mm | IPEX MHF1, U.FL (UMCC) | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, LTE, NB-IOT |
|
ANT-916-SPRF ANT 916MHZ CHIP SOLDER SMD |
143 |
|
Технический лист |
Splatch® | Tube | Discontinued | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Chip | 1 | 1.9 | - | 1.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
1461840100RF ANT 4.5GHZ PCB TRACE MMCX MAL |
124 |
|
Технический лист |
UWB | Bulk | Active | - | Wide Band | 4.5GHz | 3GHz ~ 6GHz | PCB Trace | 1 | - | -6dB | 4.5dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.012" (0.30mm) | - |
|
ANT-458-SPRF ANT 458MHZ CHIP SOLDER SMD |
2,735 |
|
Технический лист |
Splatch® | Bag | Discontinued | General ISM | UHF (300MHz ~ 1GHz) | 458MHz | 454MHz ~ 462MHz | Chip | 1 | 1.9 | - | -5.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
2196110200WIFI 6E ANTENNA 200MM CABLE |
562 |
|
Технический лист |
219611 | Bag | Active | 802.15.4, Bluetooth | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 2.15dBi, 2.85dBi, 3.15dBi | 2 W | Cable - 200mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Zigbee™ |
|
|
2196110250WIFI 6E ANTENNA 250MM CABLE |
540 |
|
Технический лист |
219611 | Bag | Active | 802.15.4, Bluetooth | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 1.97dBi, 2.57dBi, 2.82dBi | 2 W | Cable - 250mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Zigbee™ |
|
|
ANT-433-SPRF ANT 433MHZ CHIP SOLDER SMD |
3,366 |
|
Технический лист |
Splatch® | Tube | Discontinued | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 429MHz ~ 437MHz | Chip | 1 | 1.9 | - | -6.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Alarms, ISM, Remote Control, Security Systems |
|
SZP-C-0U01UWB ANT 3-7GHZ SMD CHIP |
3,000 |
|
Технический лист |
RIGEL | Tape & Reel (TR) | Active | Ultra Wide Band | Wide Band | 3.49GHz, 3.985GHz, 3.99GHz, 4.49GHz | 3GHz ~ 7GHz | Chip | 1 | 2.3 | -10dB | 3.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | UWB |
|
|
2196110300WIFI 6E ANTENNA 300MM CABLE |
348 |
|
Технический лист |
219611 | Bag | Active | 802.15.4, Bluetooth | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 1.8dBi, 2.3dBi, 2.5dBi | 2 W | Cable - 300mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Zigbee™ |
|
2195632-1EXTERNAL DUAL BAND GSM ANTENNA |
0 |
|
Технический лист |
- | Tray | Obsolete | Cellular | Wide Band | 900MHz, 1.8GHz | 860MHz ~ 960MHz, 1.71GHz ~ 2.3GHz | Whip, Right Angle | 2 | 2.5 | - | 2dBi | - | - | SMA | - | - | - | Connector Mount | 1.850" (47.00mm) | GSM |
|
H2U86D2K1S0100UNICTRON CU10D7 - WI-FI DUAL BAN |
3,500 |
|
Технический лист |
- | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.5GHz | 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | 2 | - | 1.2dBi, 2.6dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | Wi-Fi |
|
|
NFC AntennaNFC Ant nRF52 nRF52832m nRF52840 |
142 |
|
- |
- | Tray | Active | Bluetooth | - | 13.56MHz | 13.56MHz | - | - | - | - | - | 100 Hz|kHz | NFC-Flat Wound Inductor | Connector | - | - | - | Connector Mount | 0.007" (0.18mm) | Bluetooth |
|
SZP-C-0L024GLTE ANT 698-2690MHZ SMD CHIP |
715 |
|
Технический лист |
OPALA | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.35GHz, 2.595GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Chip | 5 | 3.1, 2.9, 3.25, 3.5 | -6dB, -7.5dB, -6dB, -5dB | 1.5dBi, 3.4dBi, 2.7dBi, 1.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
