РЧ-усилители
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Частота | P1dB | Усиление | Шумовой коэффициент | Тип RF | Напряжение - Питание | Ток - Питание | Тестовая частота | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CA77-1IC RF AMP GPS 2MHZ-700MHZ SMA |
0 |
|
Технический лист |
CA77-1 | Module, SMA Connectors | Tray | Active | 2MHz ~ 700MHz | 16.5dBm | 16dB | 5dB | General Purpose | 15V | 50mA | 2MHz ~ 700MHz | - | - | - | - |
|
|
FMAM3268BROADBAND AMP TYPE 2.4MM 18GHZ-4 |
0 |
|
Технический лист |
- | Module | Bag | Active | 18GHz ~ 40GHz | 10dBm | 21dB | 5.5dB | General Purpose | 12V ~ 15V | 250mA | - | - | - | Chassis Mount | Module |
|
|
ZHL-20W-202-S+BROADBAND AMPL / SMA / ROHS |
0 |
|
- |
- | Module, SMA Connectors | Tray | Active | 20MHz ~ 2GHz | - | 56dB | 10dB | Cellular, GSM, ISM, PCN | 30V | 4A | - | - | - | Chassis Mount | Module |
|
|
FMAM3307BROADBAND AMP TYPE 2.92MM 26.5GH |
0 |
|
- |
- | Module | Bag | Active | 26.5GHz ~ 40GHz | 10dBm | 50dB | 4dB | General Purpose | 12V | 375mA | - | - | - | Chassis Mount | - |
|
HMC-C028IC RF AMP RADAR 4GHZ-8GHZ MODULE |
0 |
|
Технический лист |
- | Module, SMA Connectors | Box | Obsolete | 4GHz ~ 8GHz | - | - | - | Radar | 8V ~ 15V | 185mA | 4GHz ~ 8GHz | - | - | Connector Mount | Module |
|
|
FMAM3305BROADBAND AMP TYPE 2.92MM 18GHZ- |
0 |
|
- |
- | Module | Bag | Active | 18GHz ~ 40GHz | 11dBm | 44dB | 4dB | General Purpose | 13V | 250mA | - | - | - | Chassis Mount | - |
|
|
FMAM5105TEMP COMP AMP SMA 4-12 GHZ 22DBM |
0 |
|
Технический лист |
- | Module, SMA Connectors | Bag | Active | 4GHz ~ 12GHz | 22dBm | 40dB | 3.5dB | General Purpose | 12V ~ 15V | 350mA | - | - | - | Chassis Mount | Module |
|
|
FMAM5106TEMP COMP AMP SMA 2-18 GHZ 22DBM |
0 |
|
Технический лист |
- | Module, SMA Connectors | Bag | Active | 2GHz ~ 18GHz | 22dBm | 39dB | 5.5dB | General Purpose | 12V ~ 15V | 550mA | - | - | - | Chassis Mount | Module |
|
|
MAAM-008727-0CA701AMPLIFIER 10-250 MHZ CONNECTORIZ |
0 |
|
- |
- | Module, SMA Connectors | Bulk | Active | 5MHz ~ 300MHz | 14dBm | 8dB | 1.8dB | General Purpose | 15V | 15mA | 5MHz ~ 300MHz | - | - | Chassis Mount | - |
|
|
CA45-1IC RF AMP GPS 80MHZ-4.2GHZ |
0 |
|
Технический лист |
CA45-1 | Module, SMA Connectors | Tray | Active | 80MHz ~ 4.2GHz | 13dBm | 17.5dB | 4dB | General Purpose | 5V | 65mA | 80MHz ~ 4.2GHz | - | - | - | - |
|
|
SLNA-180-30-35-SMABROADBAND AMP TYPE SMA 500MHZ-18 |
0 |
|
Технический лист |
- | Module, SMA Connectors | Bag | Active | 500MHz ~ 18GHz | 15dBm | 33dB | 5dB | General Purpose | 11V ~ 13V | 220mA | - | - | - | Chassis Mount | Module |
|
|
FMAM4061FPOWER AMP 6000MHZ-18GHZ P1DB SMA |
0 |
|
- |
- | Module, SMA Connectors | Bag | Active | 6GHz ~ 18GHz | 27dBm | 7dB | 30dB | Radar | 12V | 800mA | - | - | - | Chassis Mount | - |
|
LNA-30-06001800-25-15PIC RF AMP VSAT 6GHZ-18GHZ MODULE |
0 |
|
Технический лист |
LNA | Module, SMA Connectors | Box | Active | 6GHz ~ 18GHz | 15dBm | 30dB | 2.5dB | VSAT | 15V | 350mA | 6GHz ~ 18GHz | - | - | Connector Mount | Module |
|
|
SPA-060-43-10-SMAPOWER AMP 700MHZ-6GHZ P1DB SMA |
0 |
|
Технический лист |
- | Module, SMA Connectors | Bag | Active | 700MHz ~ 6GHz | - | 43dB | - | Radar | 9V ~ 32V | 2A | - | - | - | Chassis Mount | Module |
|
|
FMAM5105FTEMP COMP AMP SMA 4-12 GHZ 22DBM |
0 |
|
Технический лист |
- | Module, SMA Connectors | Bag | Active | 4GHz ~ 12GHz | 22dBm | 40dB | 4dB | General Purpose | 12V ~ 15V | 350mA | - | - | - | Chassis Mount | - |
|
|
FMAM5106FTEMP COMP AMP SMA 2-18 GHZ 22DBM |
0 |
|
Технический лист |
- | Module, SMA Connectors | Bag | Active | 2GHz ~ 18GHz | 22dBm | 39dB | 5.5dB | General Purpose | 12V ~ 15V | 550mA | - | - | - | Chassis Mount | - |
|

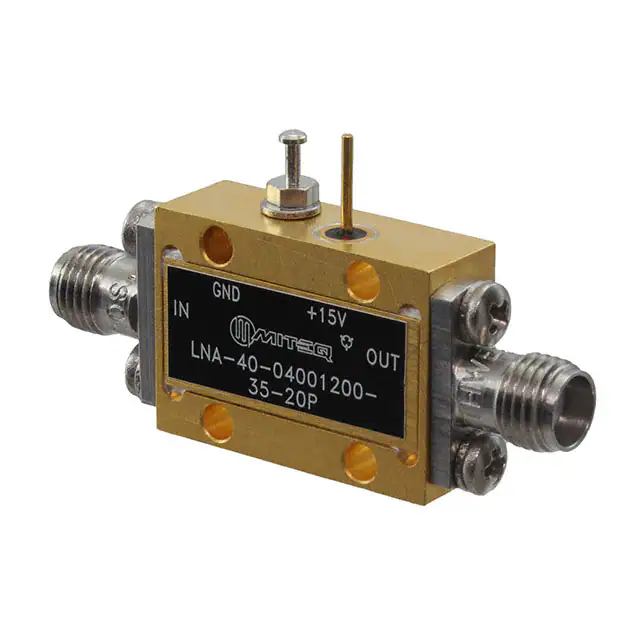

LNA-40-04001200-35-20PIC RF AMP VSAT 4GHZ-12GHZ MODULE |
1 |
|
Технический лист |
LNA | Module, SMA Connectors | Box | Active | 4GHz ~ 12GHz | 20dBm | 40dB | 3.5dB | VSAT | 15V | 400mA | 4GHz ~ 12GHz | - | - | Connector Mount | Module |
|
AMC-182-SMAIC RF AMP GPS 5MHZ-1GHZ |
0 |
|
Технический лист |
AMC-182 | Module, SMA Connectors | Tray | Active | 5MHz ~ 1GHz | 9dBm | 29.2dB | 4.5dB | General Purpose | 14.5V ~ 15.5V | 44mA | 5MHz ~ 1GHz | - | - | - | - |
|
|
AM-185-PINAMPLIFIER,RESISITIVE FEEDBACK |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CA88AMPLIFIER,CASCADED |
0 |
|
- |
A88 | TO-8 Style, 4 Lead | Bulk | Active | 5MHz ~ 500MHz | 20.5dBm | 18dB | 3.5dB | General Purpose | 15V | 79mA | 2MHz ~ 500MHz | - | - | Through Hole | TO-8 |
