Герконовые реле
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

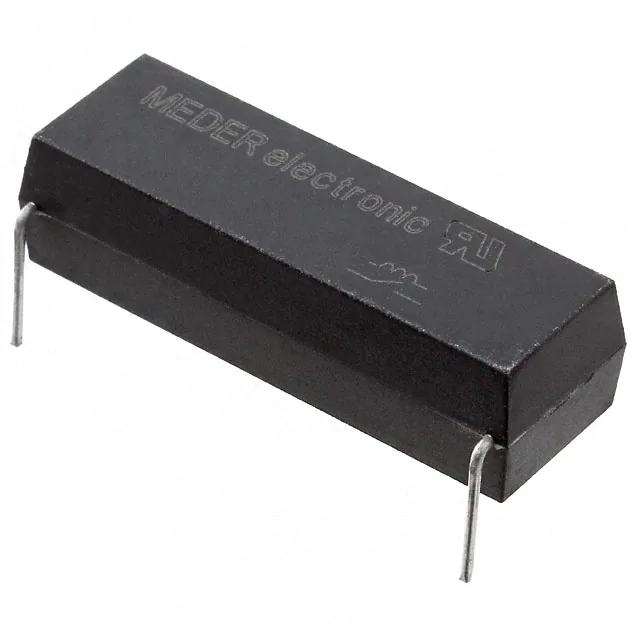

KT05-1A-40L-THTREED RELAY 1 FORM A 5V TH |
2,332 |
|
Технический лист |
KT | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 63 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.5 VDC | - | - | -40°C ~ 100°C | - |
|
CGSM-031A-GTRRELAY RF SPST-NO 500MA 3.3V |
927 |
|
Технический лист |
CGSM | Tape & Reel (TR) | Active | Surface Mount | 3.3VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 170VDC - Max | 47.1 mA | Non Latching | - | Gull Wing | - | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
8L02-05-11RELAY REED DPST 500MA 5V |
724 |
|
Технический лист |
8L | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L41-05-011RELAY REED SPDT 250MA 5V |
5,155 |
|
Технический лист |
8L | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
|
8L41-05-111RELAY REED SPDT 250MA 5V |
2,127 |
|
Технический лист |
8L | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
HE721C2430RELAY REED SPDT 250MA 24V |
3,083 |
|
Технический лист |
HE700 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 16 VDC | 2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
8L41-05-101RELAY REED SPDT 250MA 5V |
10,005 |
|
Технический лист |
8L | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
3570-1517-053RELAY REED SIP SPST .5A 5V W/DIO |
717 |
|
Технический лист |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VDC - Max | 12.5 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.2 ms | 0.1 ms | -40°C ~ 85°C | - |
|
9301-12-20RELAY REED SPST 500MA 12V |
490 |
|
Технический лист |
9300 | Tube | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | J Lead | - | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
KT24-1A-40L-THTREED RELAY 1 FORM A 24V TH |
1,856 |
|
Технический лист |
KT | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 13.3 mA | Non Latching | - | PC Pin | Sealed - Fully | 16 VDC | 2.9 VDC | - | - | -40°C ~ 100°C | - |
|
9401-12-00RELAY REED SPST 500MA 12V |
1,578 |
|
Технический лист |
9400 | Bulk | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.5 mA | Non Latching | - | Gull Wing | - | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C | - |
|
8L61-05-111RELAY REED SPDT 250MA 5V |
2,781 |
|
Технический лист |
8L | Tube | Active | Surface Mount | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | J Lead | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
|
9401-12-00-TRRELAY REED SPST 500MA 12V |
2,334 |
|
Технический лист |
9400 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.5 mA | Non Latching | - | Gull Wing | - | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C | - |
|
9201-12-20RELAY REED SPST 500MA 12V |
12,022 |
|
Технический лист |
9200 | Tube | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18.5 mA | Non Latching | - | J Lead | Sealed - Hermetically | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
9201-05-00TRRELAY REED SPST 500MA 5V |
1,650 |
|
Технический лист |
9200 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 20 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
8L41-05-001RELAY REED SPDT 250MA 5V |
464 |
|
Технический лист |
8L | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
LI05-1A85RELAY REED SPST 1A 5V |
2,499 |
|
Технический лист |
LI | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
2332-05-000RELAY REED DPST 500MA 5V |
7,989 |
|
Технический лист |
2300 | Tray | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 28.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | - |
|
2204-05-411RELAY REED SPST 500MA 5V |
4,011 |
|
Технический лист |
2200 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
|
9011-12-11RELAY REED SPST 250MA 12V |
4,182 |
|
Технический лист |
9011 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 16 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
