Кнопочные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Тип | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Маркировка привода | Цвет - привод/колпачок | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPR1FAD2L0GSWITCH PUSHBUTTON SPST 4A 12V |
2,950 |
|
Технический лист |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Black | LED, Green | 2 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

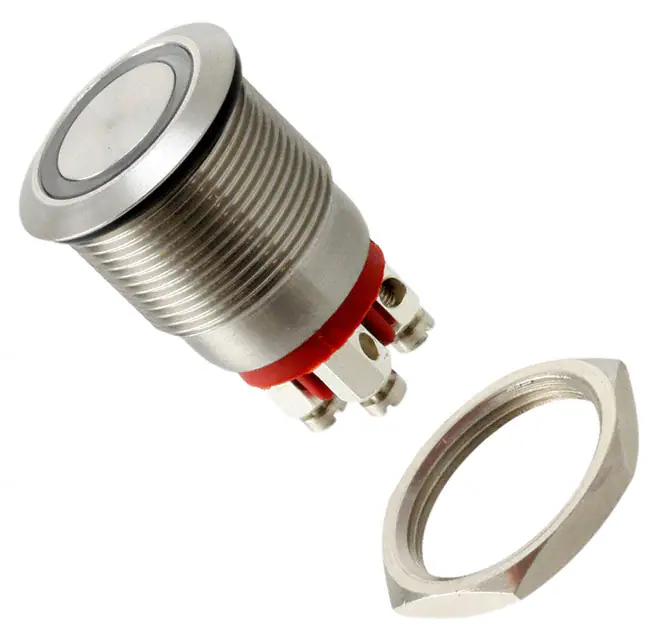

MPI002/TERM/RDSWITCH PUSH SPST-NO 0.05A 24V |
119 |
|
Технический лист |
- | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.85 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
IQR3V222SWITCH PUSHBUTTON SPST-NO 4A 48V |
4,135 |
|
Технический лист |
IQ | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 4A (DC) | - | 48 V | Round, Button, Domed | No Marking | Black | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | Epoxy Sealed Terminals | Circular - 15.90mm Dia | -40°C ~ 85°C |
|

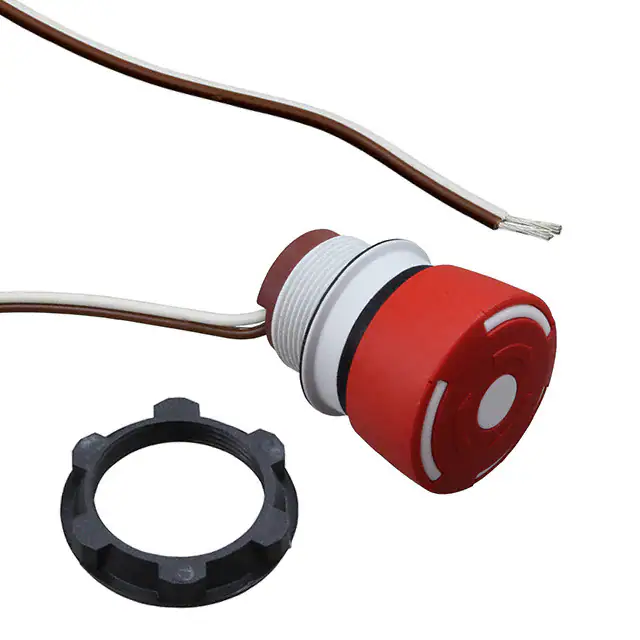

84-6820.0040ASWITCH STOP LIGHT GRAY 1NC NON |
147 |
|
Технический лист |
84 | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
MPI002/TERM/AMSWITCH PUSH SPST-NO 0.05A 24V |
102 |
|
Технический лист |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Amber | 2.3 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
IPR5FAD2SWITCH PUSH SPDT 0.5A 48V |
389 |
|
Технический лист |
IP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
A165L-JRM-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
144 |
|
Технический лист |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Red | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
13445ASWITCH PUSHBUTTON DPDT 4A 125V |
50 |
|
Технический лист |
13000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|

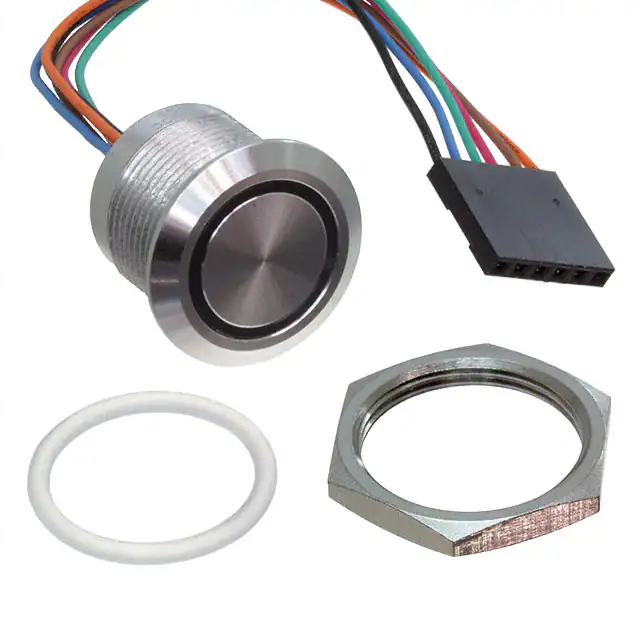

CS4M2FRSWITCH PB SPST 1A 24V |
108 |
|
Технический лист |
CS | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | - | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
MPI002/28/D4SWITCH PUSH SPST-NO 0.05A 24V |
2,730 |
|
Технический лист |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Red | 2.0, 3.6 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|

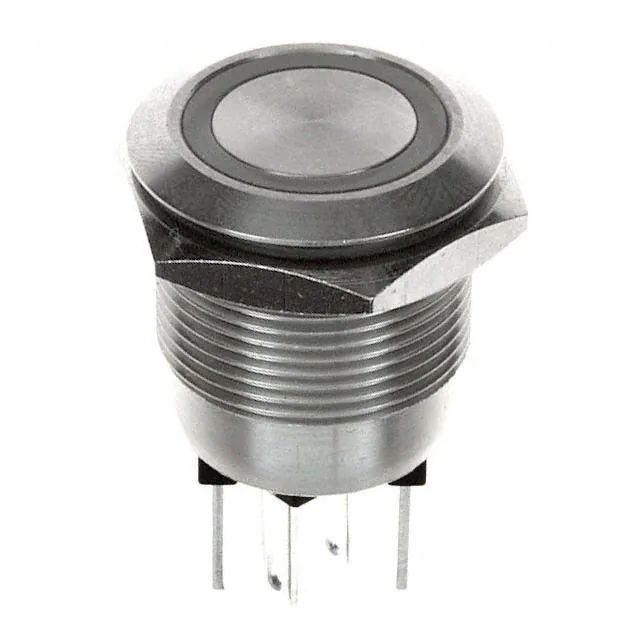

MPI002/28/D1SWITCH PUSH SPST-NO 0.05A 24V |
82 |
|
Технический лист |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 2.05, 3.6 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
MPI001/28/D1SWITCH PUSH SPST-NO 0.05A 24V |
35 |
|
Технический лист |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 2.05, 3.6 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|

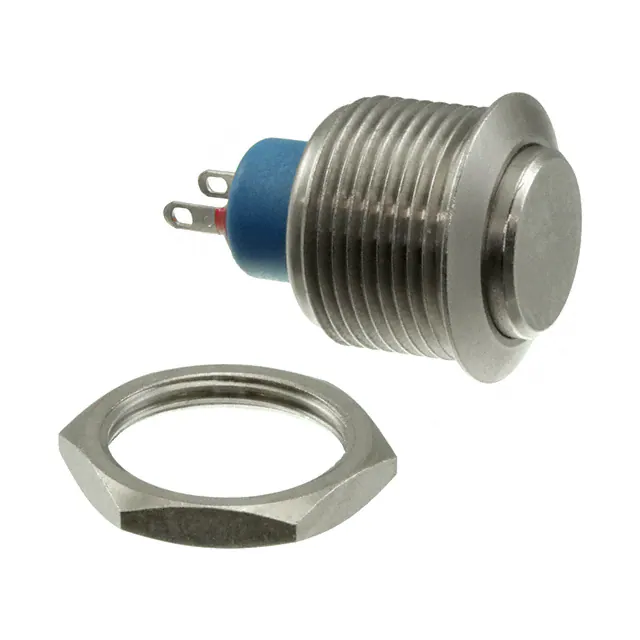

9633AX1146SWITCH PUSH SPST-NO 1A 30V |
57 |
|
Технический лист |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (DC) | - | 30 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 16.20mm Dia | -30°C ~ 65°C |
|
IPR1FAD3L0GSWITCH PUSHBUTTON SPST 4A 12V |
41 |
|
Технический лист |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Green | LED, Green | 2 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
31-122.025SWITCH PB 4PST-2NO/2NC 5A 250V |
34 |
|
Технический лист |
31 | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
AML21GBA2AASWITCH PUSHBUTTON SPDT 3A 125V |
65 |
|
Технический лист |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
IRR1S422L0SSWITCH PUSH SPST 0.2A 250V |
99 |
|
Технический лист |
IR | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 200mA (AC/DC) | 250 V | 48 V | Round, Button | No Marking | Black | LED, Red | 1.95 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
AML21FBA2ACSWITCH PUSHBUTTON DPDT 3A 125V |
29 |
|
Технический лист |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
|
13435AD2GKSWITCH PUSHBUTTON SPDT 4A 125V |
50 |
|
Технический лист |
13000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | Environment Sealed | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
AVC22MS16FE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A |
26 |
|
Технический лист |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
