Кнопочные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Тип | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Маркировка привода | Цвет - привод/колпачок | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ULV4F2BSSSWITCH PUSHBUTTON SPDT 3A 250V |
565 |
|
Технический лист |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

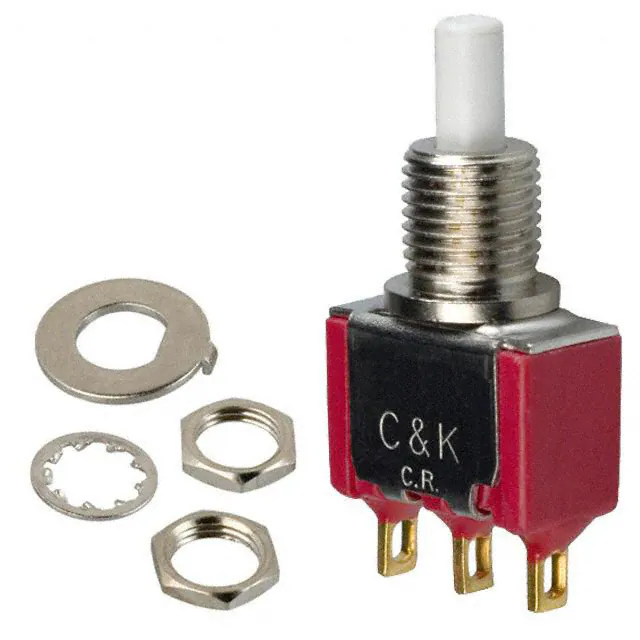

8121SHZGESWITCH PUSHBUTTON SPDT 1A 120V |
486 |
|
Технический лист |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
SKW035F-JF.JPG)
|

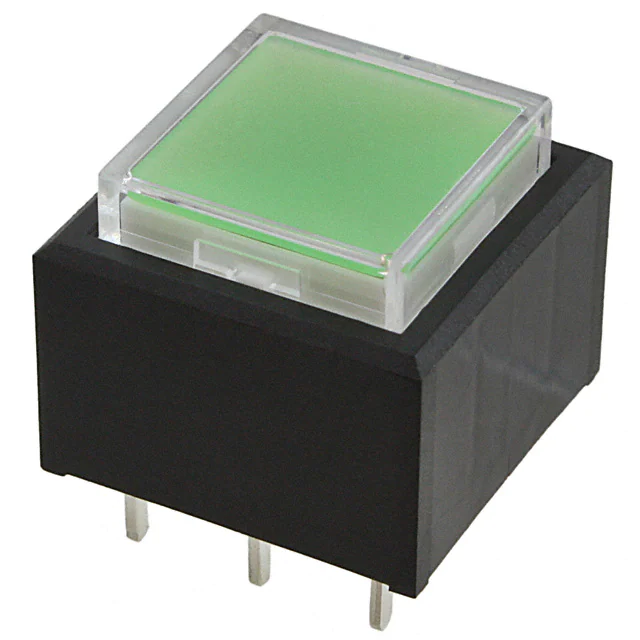

UB25SKW035F-JFSWITCH PUSHBUTTON DPDT 5A 125V |
418 |
|
Технический лист |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
PVA6LRE21241SWITCH PUSHBUTTON SPST 2A 36V |
374 |
|
Технический лист |
PVA6L | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Clear | LED, Blue | 2.8 ~ 3.7 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 16.00mm Dia | -20°C ~ 70°C |
|

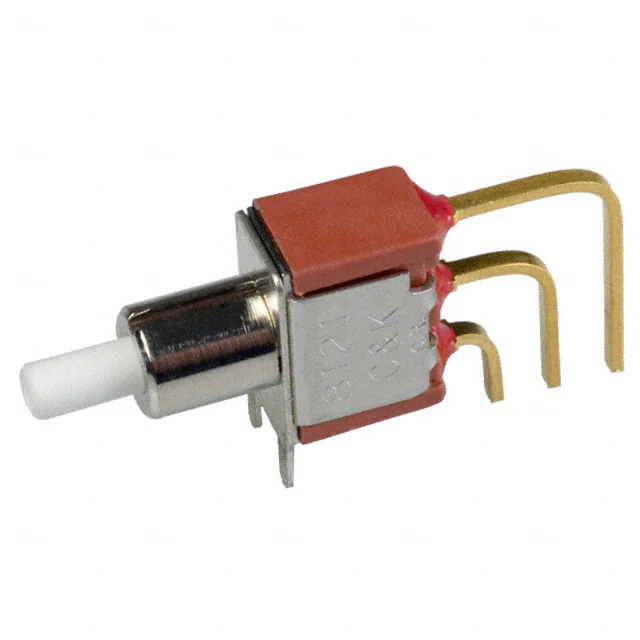

8121SD9AV2GESWITCH PUSHBUTTON SPDT 1A 120V |
184 |
|
Технический лист |
8020 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|

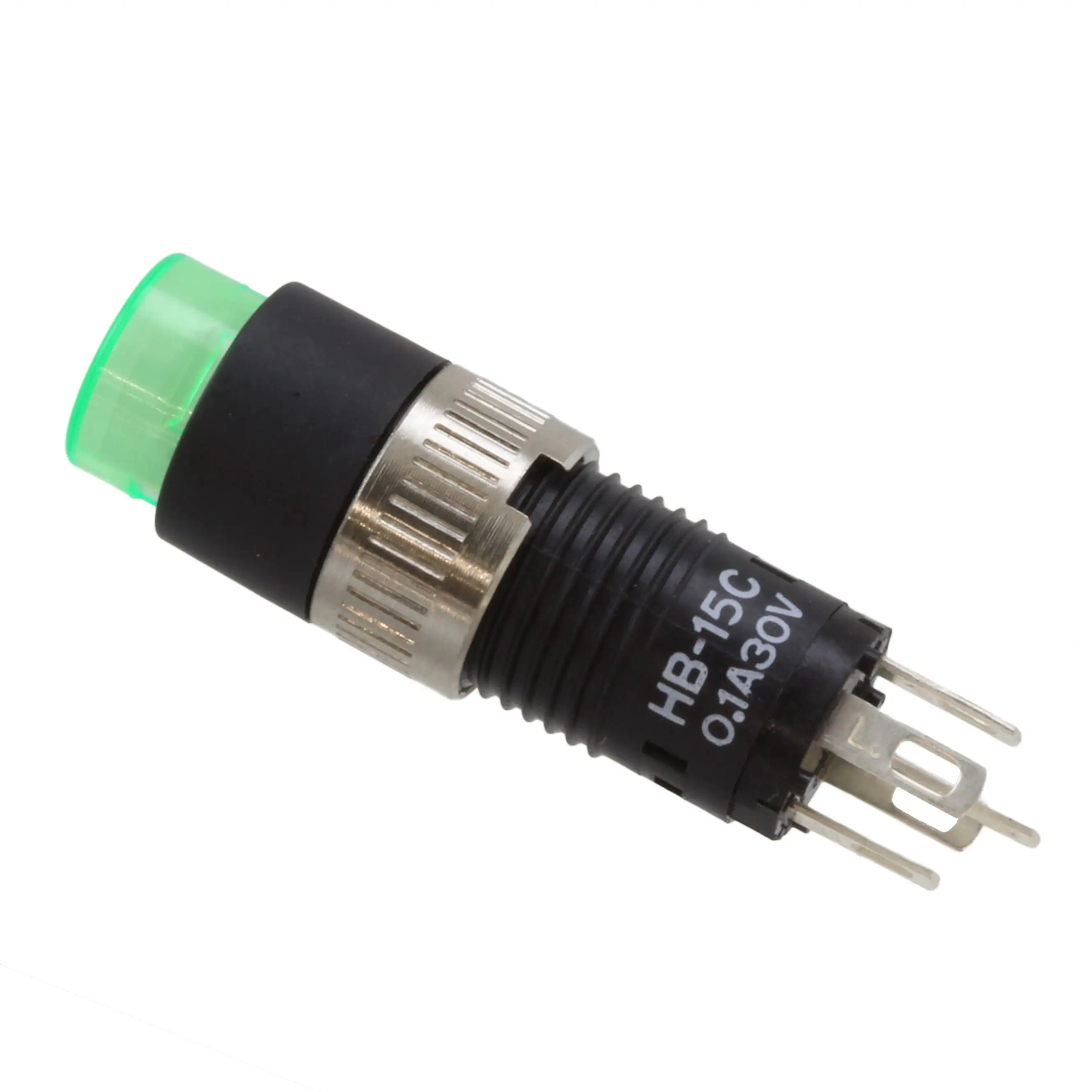

HB15CKW01-5F-FBSWITCH PUSH SPDT 0.1A 30V |
676 |
|
Технический лист |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
39-101SWITCH PUSH SPST-NO 0.5A 115V |
385 |
|
Технический лист |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 115 V | - | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Overtravel | Circular - 8.61mm Dia | -40°C ~ 85°C |
|
1241.2856SWITCH PUSH SPST-NO 125MA 48V |
341 |
|
Технический лист |
MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 2.1 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 19.00mm Dia | -25°C ~ 60°C |
|

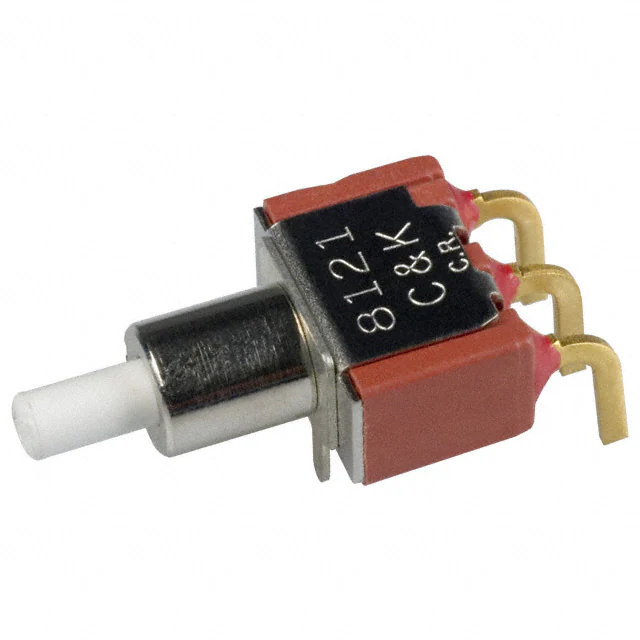

8121SD9AGESWITCH PUSHBUTTON SPDT 1A 120V |
3,529 |
|
Технический лист |
8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
PV6F240SSG-341SWITCH PUSH SPST-NO 2A 48V |
364 |
|
Технический лист |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
PV6FW40SS3G1SWITCH PB SPST 2A 48V |
241 |
|
Технический лист |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 1.8, 2.8 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV6F240SSG-301SWITCH PUSH SPST-NO 2A 48V |
354 |
|
Технический лист |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, White | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
LP0125CCKW01ASWITCH PUSHBUTTON DPDT 3A 125V |
276 |
|
Технический лист |
LP01 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

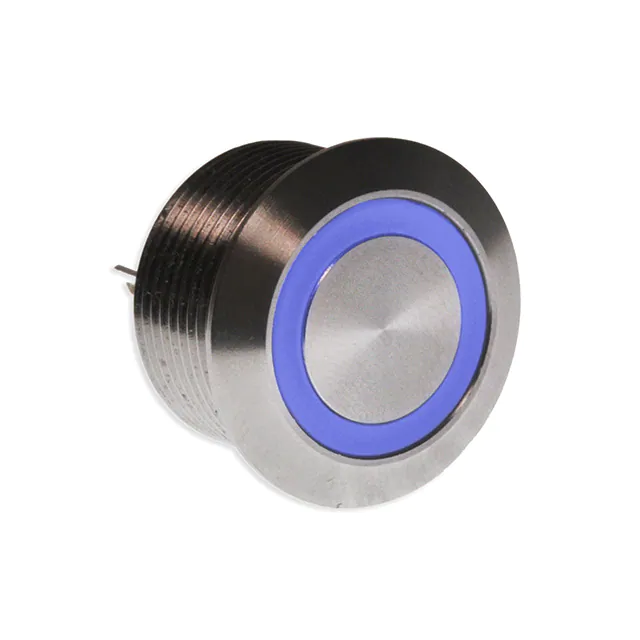

PVT4FS4SS341SWITCH PB SPST-NO 50MA 24V |
3,410 |
|
Технический лист |
PVT4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
PVA6FP24S41SWITCH PUSHBUTTON SPST 2A 36V |
136 |
|
Технический лист |
PVA6 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 2.8 ~ 3.7 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|

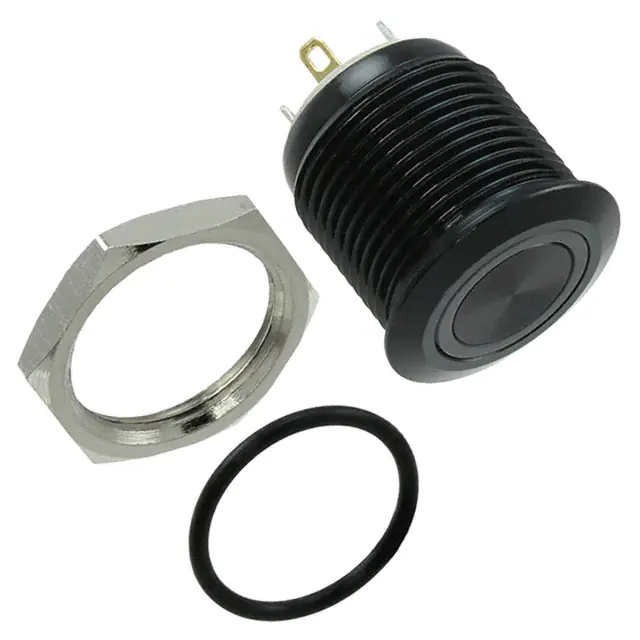

PV6F24011G-301SWITCH PUSHBUTTON SPST 2A 48V |
253 |
|
Технический лист |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | LED, White | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|

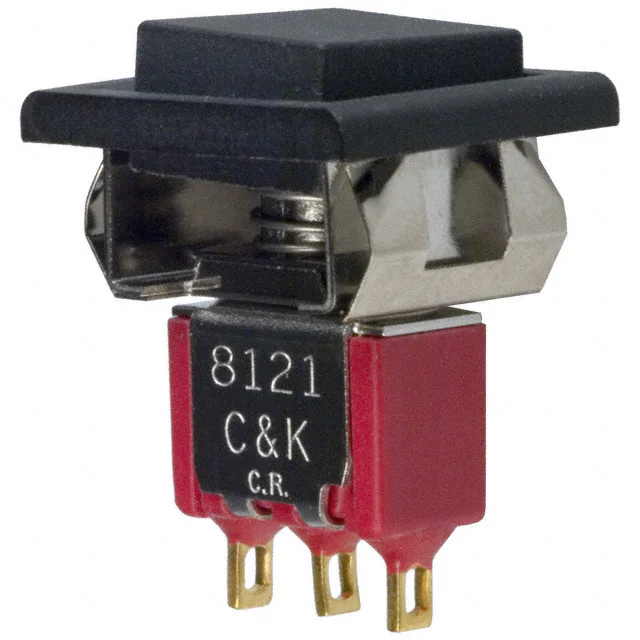

8121J81ZGE22SWITCH PUSHBUTTON SPDT 1A 120V |
1,718 |
|
Технический лист |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
|
UB26SKW035F-JFSWITCH PUSHBUTTON DPDT 5A 125V |
590 |
|
Технический лист |
UB | Tray | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
AP4D200TZBESWITCH PUSH SPST-NO 0.125A 125V |
1,145 |
|
Технический лист |
AP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
|
W57M-211GSWITCH PUSHBUTTON 10MA 12V |
138 |
|
Технический лист |
W57M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST (DM) | Off-On | 10mA (DC) | - | 12 V | Round, Button, Flush | - | Silver | LED, Green | 3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.15mm Dia | -25°C ~ 85°C |
