Сброс PTC Предохранители
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип | Напряжение - макс. | Ток - удержание (Ih) (макс.) | Ток - отключение (It) | Ток - макс. | Время до отключения | Сопротивление - начальное (Ri) (мин.) | Сопротивление - после отключения (R1) (макс.) | Сопротивление - 25 °C (тип.) | Рабочая температура | Марка | Квалификация | Номинальные значения | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Толщина (макс.) | Расстояние между выводами |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTSA080515V010PTC RESET FUSE 100MA 15V 0805 |
2,957 |
|
Технический лист |
0805 (2012 Metric), Concave | PTSA0805 | Tape & Reel (TR) | Active | - | 15V | 100 mA | 300 mA | 10 A | 2 s | 500 mOhms | 10 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.089" L x 0.059" W (2.25mm x 1.50mm) | - | 0.039" (1.00mm) | - |
|

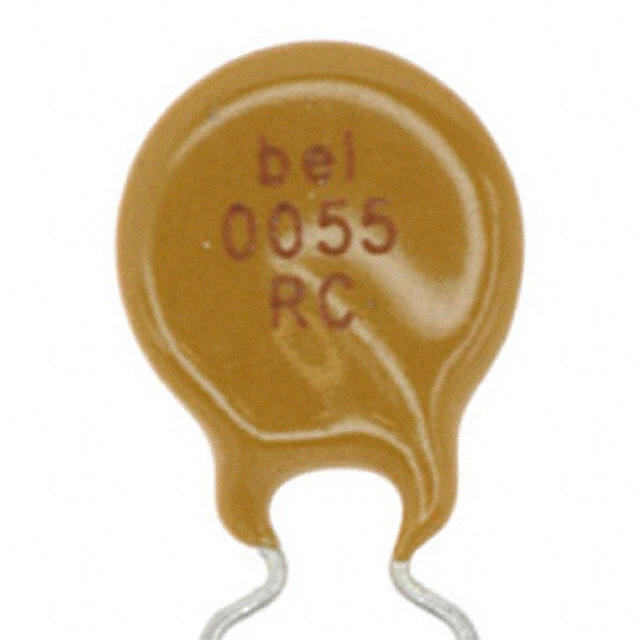

0ZRC0055FF1EPTC RESET FUSE 90V 550MA RADIAL |
2,853 |
|
Технический лист |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 550 mA | 1.2 A | 40 A | 10 s | 400 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" L x 0.122" W (9.70mm x 3.10mm) | 0.551" (14.00mm) | - | 0.201" (5.10mm) |
,-Concave.jpg)
|
0ZCF0300FF2CPTC RESET FUSE 6V 3A 2920 |
1,185 |
|
Технический лист |
2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 5.2 A | 100 A | 25 s | 10 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
RUEF090-2PTC RESET FUSE 30V 900MA RADIAL |
22,165 |
|
Технический лист |
Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 900 mA | 1.8 A | 100 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.200" (5.08mm) |
|
SMD2920B200TF/24PTC RESET FUSE 24V 2A 2920 |
9,281 |
|
Технический лист |
2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 24V | 2 A | 4 A | 40 A | 5 s | 20 mOhms | 125 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
|
SMD2920B150TFPTC RESET FUSE 33V 1.5A 2920 |
5,475 |
|
Технический лист |
2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 33V | 1.5 A | 3 A | 40 A | 2 s | 35 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|

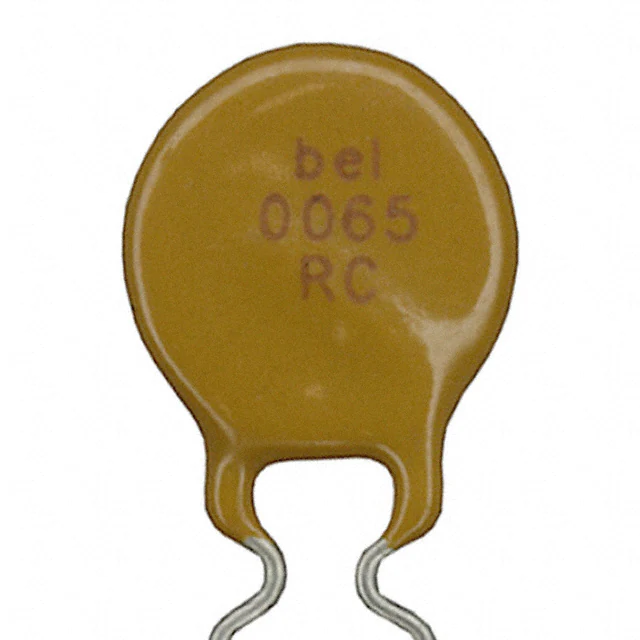

0ZRC0065FF1EPTC RESET FUSE 90V 650MA RADIAL |
4,958 |
|
Технический лист |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" L x 0.122" W (9.70mm x 3.10mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|
PTSLR06036V150PTC RESET FUSE 1.5A 6V 0603 |
4,645 |
|
Технический лист |
0603 (1608 Metric), Concave | PTSLR0603 | Tape & Reel (TR) | Active | - | 6V | 1.5 A | 3 A | 50 A | 4 s | 20 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.071" L x 0.039" W (1.80mm x 1.00mm) | - | 0.039" (1.00mm) | - |
|
0ZCH0175FF2EPTC RESET FUSE 6V 1.75A 1210 |
2,005 |
|
Технический лист |
1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 100 A | 600 ms | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|

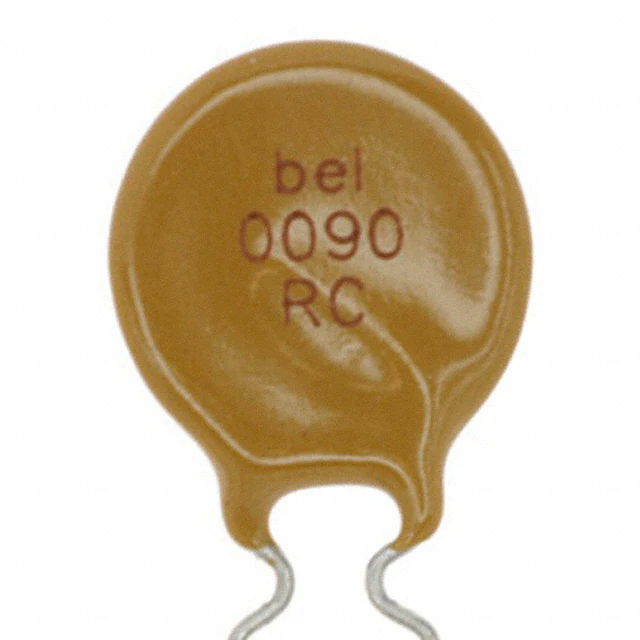

0ZRC0090FF1EPTC RESET FUSE 90V 900MA RADIAL |
7,906 |
|
Технический лист |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.461" L x 0.122" W (11.70mm x 3.10mm) | 0.622" (15.80mm) | - | 0.201" (5.10mm) |
|
0ZRR0020FF1EPTC RESET FUSE 60V 200MA RADIAL |
2,495 |
|
Технический лист |
Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
0ZRR0030FF1EPTC RESET FUSE 60V 300MA RADIAL |
2,233 |
|
Технический лист |
Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|

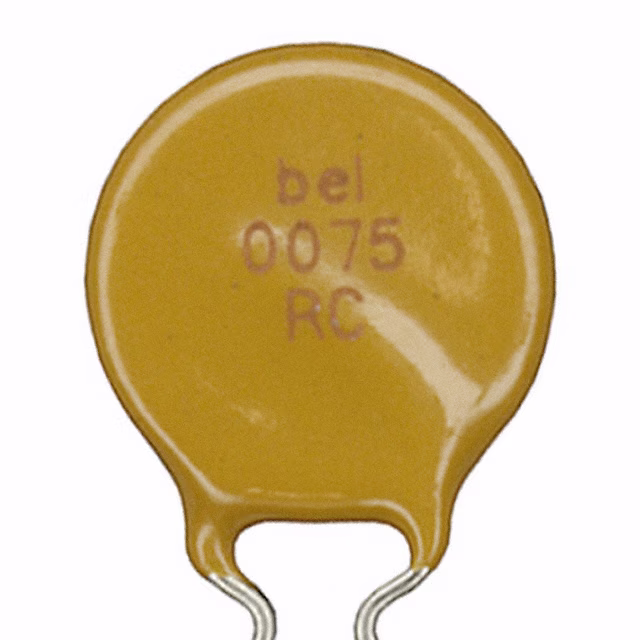

0ZRC0075FF1EPTC RESET FUSE 90V 750MA RADIAL |
6,060 |
|
Технический лист |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.122" W (10.40mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
0ZRR0010FF1EPTC RESET FUSE 60V 100MA RADIAL |
3,095 |
|
Технический лист |
Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
0ZRR0040FF1EPTC RESET FUSE 60V 400MA RADIAL |
2,360 |
|
Технический лист |
Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.299" Dia x 0.122" T (7.60mm x 3.10mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
|
PTS08059V020PTC RESET FUSE 9V 200MA 0805 |
1,473 |
|
Технический лист |
0805 (2012 Metric) | PTS0805 | Tape & Reel (TR) | Active | - | 9V | 200 mA | 500 mA | 100 A | 0.05 s | - | - | - | - | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
PFNF.012.2PTC RESET FUSE 30V 120MA 1206 |
27,651 |
|
Технический лист |
1206 (3216 Metric), Concave | PFNF | Tape & Reel (TR) | Active | Polymeric | 30V | 120 mA | 290 mA | 10 A | 200 ms | 1.35 Ohms | 8.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - |
|
PTSAHT080516V010PTC RESET FUSE 100MA 16V 0805 |
8,864 |
|
Технический лист |
0805 (2012 Metric), Concave | PTSAHT0805 | Tape & Reel (TR) | Active | - | 16V | 100 mA | 600 mA | 40 A | 1.5 s | 1 Ohms | 10 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.089" L x 0.059" W (2.25mm x 1.50mm) | - | 0.031" (0.80mm) | - |
|
RXEF075-APPTC RESET FUSE 72V 750MA RADIAL |
4,665 |
|
Технический лист |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.598" (15.20mm) | - | 0.199" (5.05mm) |
|
RXEF020SPTC RESET FUSE 72V 200MA RADIAL |
4,413 |
|
Технический лист |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.461" (11.70mm) | - | 0.199" (5.05mm) |
