Сброс PTC Предохранители
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип | Напряжение - макс. | Ток - удержание (Ih) (макс.) | Ток - отключение (It) | Ток - макс. | Время до отключения | Сопротивление - начальное (Ri) (мин.) | Сопротивление - после отключения (R1) (макс.) | Сопротивление - 25 °C (тип.) | Рабочая температура | Марка | Квалификация | Номинальные значения | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Толщина (макс.) | Расстояние между выводами |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,-Concave.jpg)
|
0ZCF0250FF2CPTC RESET FUSE 16V 2.5A 2920 |
95,233 |
|
Технический лист |
2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 16V | 2.5 A | 5 A | 100 A | 16 s | 25 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
MF-USMF010-2PTC RESET FUSE 30V 100MA 1210 |
80,066 |
|
Технический лист |
1210 (3225 Metric), Concave | Multifuse®, MF-USMF | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 300 mA | 10 A | 600 ms | 800 mOhms | 15 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
|
0ZCF0050FF2CPTC RESET FUSE 60V 500MA 2920 |
76,249 |
|
Технический лист |
2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 60V | 500 mA | 1 A | 100 A | 4 s | 300 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|
|
0ZCF0185FF2CPTC RESET FUSE 33V 1.85A 2920 |
72,796 |
|
Технический лист |
2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 33V | 1.85 A | 3.7 A | 100 A | 2.5 s | 40 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
|
0ZCF0030FF2CPTC RESET FUSE 60V 300MA 2920 |
60,678 |
|
Технический лист |
2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 600 mA | 100 A | 3 s | 1 Ohms | 4.8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|
|
MF-USMF020-2PTC RESET FUSE 30V 200MA 1210 |
31,847 |
|
Технический лист |
1210 (3225 Metric), Concave | Multifuse®, MF-USMF | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 400 mA | 10 A | 20 ms | 400 mOhms | 5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
|
0ZCF0125FF2CPTC RESET FUSE 33V 1.25A 2920 |
22,022 |
|
Технический лист |
2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 33V | 1.25 A | 2.5 A | 100 A | 2 s | 50 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
|
MF-USMF050-2PTC RESET FUSE 13.2V 500MA 1210 |
11,980 |
|
Технический лист |
1210 (3225 Metric), Concave | Multifuse®, MF-USMF | Tape & Reel (TR) | Active | Polymeric | 13.2V | 500 mA | 1 A | 40 A | 100 ms | 180 mOhms | 900 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
|
0ZCF0200AF2CPTC RESET FUSE 24V 2A 2920 |
8,409 |
|
Технический лист |
2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 24V | 2 A | 4 A | 100 A | 5 s | 35 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.032" (0.80mm) | - |
,-Concave.jpg)
|
0ZCG0110CF2BPTC RESET FUSE 33V 1.1A 1812 |
68,186 |
|
Технический лист |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 33V | 1.1 A | 2.2 A | 100 A | 500 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.051" (1.30mm) | - |
|
MF-PSMF020X-2PTC RESET FUSE 9V 200MA 0805 |
31,016 |
|
Технический лист |
0805 (2012 Metric), Concave | Multifuse®, MF-PSMF | Tape & Reel (TR) | Active | Polymeric | 9V | 200 mA | 500 mA | 40 A | 20 ms | 650 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.033" (0.85mm) | - |
|
|
0ZCG0200AF2BPTC RESET FUSE 16V 2A 1812 |
11,816 |
|
Технический лист |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 3.5 A | 100 A | 5 s | 20 mOhms | 85 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.051" (1.30mm) | - |
|
|
0ZCF0075FF2CPTC RESET FUSE 33V 750MA 2920 |
1,030 |
|
Технический лист |
2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 33V | 750 mA | 1.5 A | 100 A | 300 ms | 180 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|
PRG18BB221MB1RBPTC RESET FUSE 24V 14MA 0603 |
13,455 |
|
Технический лист |
0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 24V | 14 mA | 29 mA | 130 mA | - | - | - | 220 Ohms | -20°C ~ 75°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|

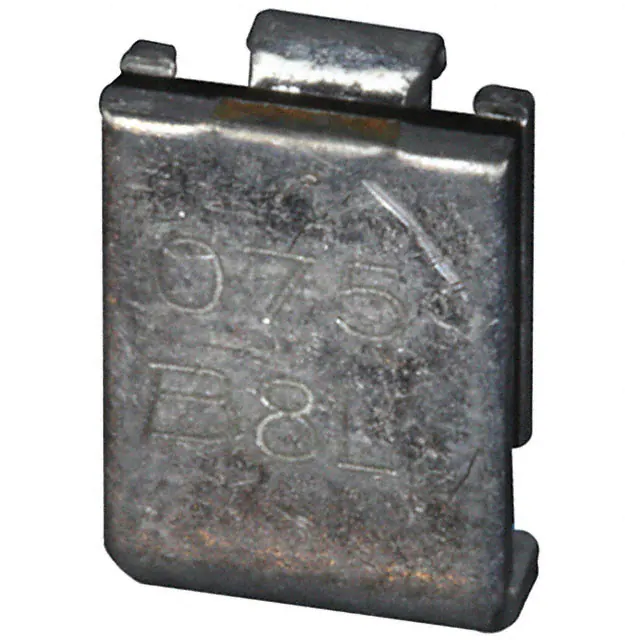

MF-SM075-2PTC RESET FUSE 30V 750MA 2SMD |
18,664 |
|
Технический лист |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Active | Polymeric | 30V | 750 mA | 1.5 A | 80 A | 300 ms | 230 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.125" (3.18mm) | - |
|
|
MF-SM030-2PTC RESET FUSE 60V 300MA 2SMD |
14,539 |
|
Технический лист |
2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 900 mOhms | 4.8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.125" (3.18mm) | - |
.jpg)
|
PRG18BC6R8MM1RBPTC RESET FUSE 20V 120MA 0603 |
7,218 |
|
Технический лист |
0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 20V | 120 mA | 260 mA | 3.5 A | - | - | - | 6.8 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
|
PRG18BB470MB1RBPTC RESET FUSE 24V 29MA 0603 |
6,707 |
|
Технический лист |
0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 24V | 29 mA | 61 mA | 630 mA | - | - | - | 47 Ohms | -20°C ~ 75°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
|
PRG18BC1R0MM1RBPTC RESET FUSE 6V 330MA 0603 |
12,289 |
|
Технический лист |
0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 6V | 330 mA | 740 mA | 7.5 A | - | - | - | 1 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
PFNF.020.2PTC RESET FUSE 24V 200MA 1206 |
2,106 |
|
Технический лист |
1206 (3216 Metric), Concave | PFNF | Tape & Reel (TR) | Active | Polymeric | 24V | 200 mA | 460 mA | 10 A | 600 ms | 600 mOhms | 2.6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
