Сброс PTC Предохранители
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип | Напряжение - макс. | Ток - удержание (Ih) (макс.) | Ток - отключение (It) | Ток - макс. | Время до отключения | Сопротивление - начальное (Ri) (мин.) | Сопротивление - после отключения (R1) (макс.) | Сопротивление - 25 °C (тип.) | Рабочая температура | Марка | Квалификация | Номинальные значения | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Толщина (макс.) | Расстояние между выводами |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

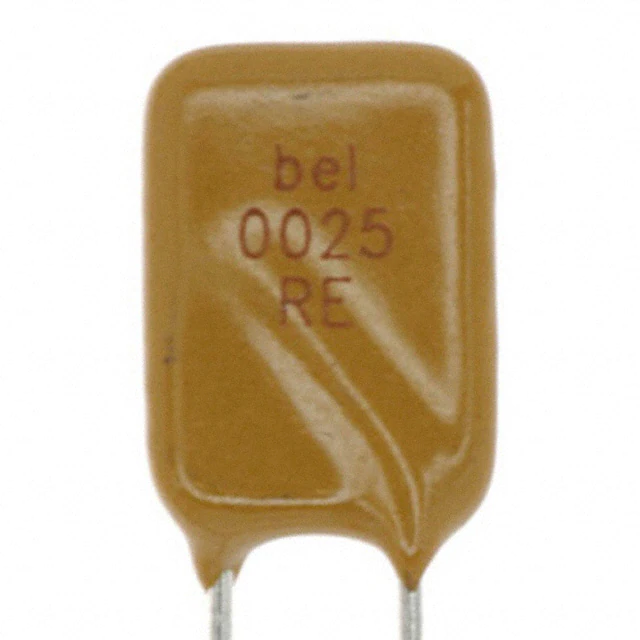

0ZRE0025FF1EPTC RESET FUSE 240V 250MA RADIAL |
14,608 |
|
Технический лист |
Radial, Disc | 0ZRE | Box | Active | Polymeric | 240V | 250 mA | 560 mA | 6 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.685" (17.40mm) | - | 0.201" (5.10mm) |
|
1812L160/12DRPTC RESET FUSE 12V 1.6A 1812 |
12,592 |
|
Технический лист |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 12V | 1.6 A | 2.8 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
;RK.JPG)
|
PRG21BB150MB1RKPTC RESET FUSE 20V 59MA 0805 |
7,636 |
|
Технический лист |
0805 (2012 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 20V | 59 mA | 116 mA | 1.6 A | - | - | - | 15 Ohms | -20°C ~ 60°C | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - |
|
RXEF135PTC RESET FUSE 72V 1.35A RADIAL |
6,579 |
|
Технический лист |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.571" Dia x 0.118" T (14.50mm x 3.00mm) | 0.752" (19.10mm) | - | 0.199" (5.05mm) |
|
|
1812L150/16DRPTC RESET FUSE 16V 1.5A 1812 |
6,436 |
|
Технический лист |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 16V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
30R110UUPTC RESET FUSE 30V 1.1A RADIAL |
3,225 |
|
Технический лист |
Radial, Disc | POLY-FUSE®, 30R | Bulk | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|
30R250UPRPTC RESET FUSE 30V 2.5A RADIAL |
3,215 |
|
Технический лист |
Radial, Disc | POLY-FUSE®, 30R | Cut Tape (CT) | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.118" (3.00mm) |
|
60R050XUPTC RESET FUSE 60V 500MA RADIAL |
2,152 |
|
Технический лист |
Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
|
1812L110/16DRPTC RESET FUSE 16V 1.1A 1812 |
1,988 |
|
Технический лист |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 1.95 A | 100 A | 300 ms | 60 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
1206L035/30WRPTC RESET FUSE 30V 350MA 1206 |
1,322 |
|
Технический лист |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 30V | 350 mA | 750 mA | 100 A | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
MF-R400-2PTC RESET FUSE 30V 4A RADIAL |
54,959 |
|
Технический лист |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.567" L x 0.118" W (14.40mm x 3.00mm) | 0.976" (24.80mm) | - | 0.201" (5.10mm) |
|
MF-PSMF010/24X-2PTC RESETTABLE 0.1A 24V SMD 0805 |
10,128 |
|
Технический лист |
0805 (2012 Metric), Concave | Multifuse®, MF-PSMF | Tape & Reel (TR) | Active | Polymeric | 24V | 100 mA | 300 mA | 80 A | 1.5 s | 1 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.033" (0.85mm) | - |
|
MF-PSMF035X-2PTC RESET FUSE 6V 350MA 0805 |
9,328 |
|
Технический лист |
0805 (2012 Metric), Concave | Multifuse®, MF-PSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 40 A | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.033" (0.85mm) | - |
|
|
MF-R300-2PTC RESET FUSE 30V 3A RADIAL |
9,247 |
|
Технический лист |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
;RA.JPG)
|
PRG21BC3R3MM1RAPTC RESET FUSE 20V 180MA 0805 |
8,252 |
|
Технический лист |
0805 (2012 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 20V | 180 mA | 400 mA | 7.5 A | - | - | - | 3.3 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.043" (1.10mm) | - |
|

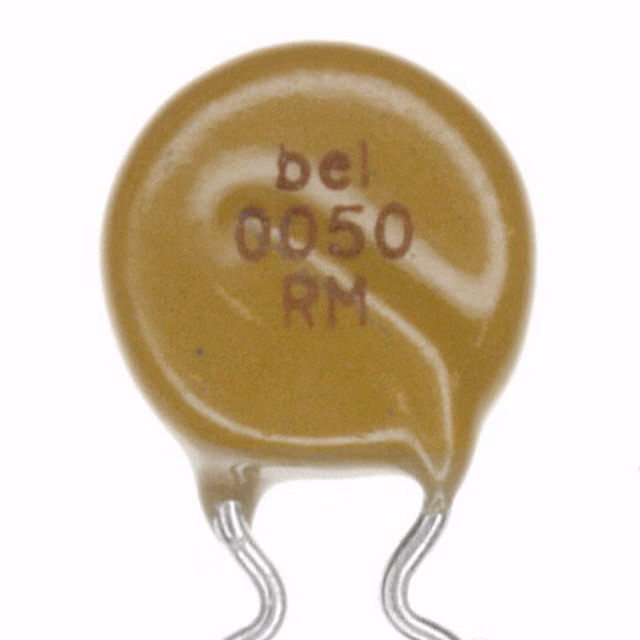

0ZRM0050FF1EPTC RESET FUSE 120V 500MA RADIAL |
3,309 |
|
Технический лист |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 500 mA | 1 A | 3 A | 6 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.362" Dia x 0.150" T (9.20mm x 3.80mm) | 0.587" (14.90mm) | - | 0.201" (5.10mm) |
|
B59407A0115A062THERMISTOR PTC 470 OHM 25% 0402 |
6,147 |
|
Технический лист |
0402 (1005 Metric) | B59407 | Tape & Reel (TR) | Active | Ceramic | 32V | 13 mA | 32 mA | 120 mA | - | 265 Ohms | 470 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - |
|
PFRA.250PTC RESET FUSE 30V 2.5A RADIAL |
2,870 |
|
Технический лист |
Radial, Disc | PFRA | Bulk | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
RXEF110-2PTC RESET FUSE 72V 1.1A RADIAL |
1,877 |
|
Технический лист |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.504" Dia x 0.118" T (12.80mm x 3.00mm) | 0.689" (17.50mm) | - | 0.199" (5.05mm) |
|
NANOSMDC200F-2PTC RESET FUSE 6V 2A 1206 |
1,266 |
|
Технический лист |
1206 (3216 Metric), Concave | PolySwitch®, nanoSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 100 A | 1.5 s | 20 mOhms | 72 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.043" (1.10mm) | - |
