Сброс PTC Предохранители
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип | Напряжение - макс. | Ток - удержание (Ih) (макс.) | Ток - отключение (It) | Ток - макс. | Время до отключения | Сопротивление - начальное (Ri) (мин.) | Сопротивление - после отключения (R1) (макс.) | Сопротивление - 25 °C (тип.) | Рабочая температура | Марка | Квалификация | Номинальные значения | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Толщина (макс.) | Расстояние между выводами |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

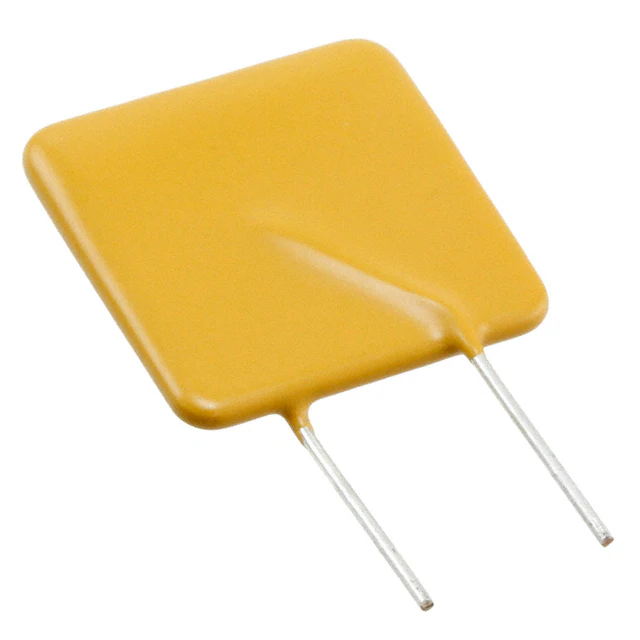

LVR200S-240PTC RESET FUSE 240V 2A RADIAL |
2,123 |
|
Технический лист |
Radial, Disc | PolySwitch®, LVR | Bulk | Active | Polymeric | 240V (265V Int) | 2 A | 4 A | 20 A | 28 s | 89 mOhms | 221 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.980" L x 0.240" W (24.90mm x 6.10mm) | 1.331" (33.80mm) | - | 0.400" (10.15mm) |
|
0805L020YRPTC RESET FUSE 9V 200MA 0805 |
19,772 |
|
Технический лист |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 9V | 200 mA | 500 mA | 100 A | 20 ms | 650 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
0805L035YRPTC RESET FUSE 6V 350MA 0805 |
14,354 |
|
Технический лист |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 100 A | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
|
0805L010YRPTC RESET FUSE 15V 100MA 0805 |
12,018 |
|
Технический лист |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 100 A | 1.5 s | 1 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
0805L005/30YRPTC RESET FUSE 30V 50MA 0805 |
8,332 |
|
Технический лист |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 30V | 50 mA | 150 mA | 40 A | 1.5 s | 3.6 Ohms | 20 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
0603L004YRPTC RESET FUSE 24V 40MA 0603 |
119,060 |
|
Технический лист |
0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 24V | 40 mA | 120 mA | 20 A | 1 s | 4 Ohms | 40 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
|
0805L050WRPTC RESET FUSE 6V 500MA 0805 |
59,278 |
|
Технический лист |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 850 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
|
0603L010YRPTC RESET FUSE 15V 100MA 0603 |
21,766 |
|
Технический лист |
0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 40 A | 1 s | 900 mOhms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
|
0603L035YRPTC RESET FUSE 6V 350MA 0603 |
9,565 |
|
Технический лист |
0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 40 A | 100 ms | 200 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.061" (1.55mm) | - |
|
|
0805L100WRPTC RESET FUSE 6V 1A 0805 |
7,532 |
|
Технический лист |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 6V | 1 A | 1.95 A | 40 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.071" (1.80mm) | - |
|
|
0603L025YRPTC RESET FUSE 9V 250MA 0603 |
5,961 |
|
Технический лист |
0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 9V | 250 mA | 550 mA | 40 A | 80 ms | 500 mOhms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
|
0603L020YRPTC RESET FUSE 9V 200MA 0603 |
4,885 |
|
Технический лист |
0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 9V | 200 mA | 500 mA | 40 A | 600 ms | 550 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
0402L100SLKRPTC RESET FUSE 1.0A 6V 0402 |
10,738 |
|
Технический лист |
0402 (1005 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1 A | 2 A | 40 A | 200 ms | 30 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
YQS8068PTC RESET FUSE 265V 65MA RADIAL |
1,945 |
|
Технический лист |
Radial, Disc | YM | Bulk | Active | Ceramic | 265V | 65 mA | 98 mA | 400 mA | - | - | - | 100 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.217" Dia x 0.197" T (5.50mm x 5.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|

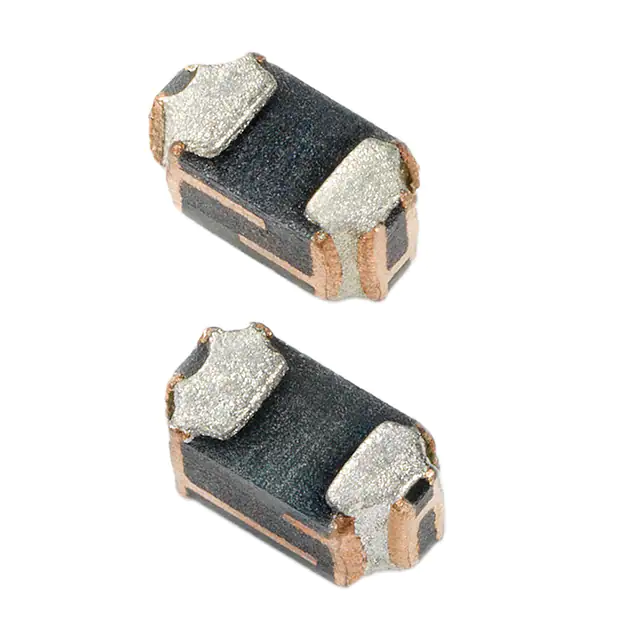

0402L035SLKRPTC RESET FUSE 6V 350MA 0402 |
12,070 |
|
Технический лист |
0402 (1005 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 700 mA | 50 A | 100 ms | 50 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
1206L150/12SLYRPTC RESET FUSE 12V 1.5A 1206 |
6,600 |
|
Технический лист |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 3 A | 50 A | 300 ms | 10 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.033" (0.85mm) | - |
|
|
0402L010SLKRPTC RESET FUSE 6V 100MA 0402 |
13,494 |
|
Технический лист |
0402 (1005 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 100 mA | 300 mA | 40 A | 1 s | 150 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
2920L700/24SLERPTC RESET FUSE 7.0A 24V 2920 |
2,743 |
|
Технический лист |
2920 (7351 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 24V | 7 A | 14 A | 50 A | 2 s | 1 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
|
|
2920L500/24SLDRPTC RESET FUSE 5.0A 24V 2920 |
1,950 |
|
Технический лист |
2920 (7351 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 24V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
|
|
2920L600/24SLERPTC RESET FUSE 6.0A 24V 2920 |
5,159 |
|
Технический лист |
2920 (7351 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 24V | 6 A | 12 A | 50 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
