Датчики давления, преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Применение | Тип давления | Рабочее давление | Тип выхода | Выход | Точность | Напряжение - Питание | Размер порта | Тип порта | Особенности | Тип вывода | Максимальное давление | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SX100DD4SENSOR 100PSID 0.09" .15V 6DIP |
0 |
|
Технический лист |
- | 6-DIP Module | Bulk | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.5% | 12V | Male - 0.09" (2.28mm) Tube, Dual | Barbless | - | - | 150PSI (1034.21kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|

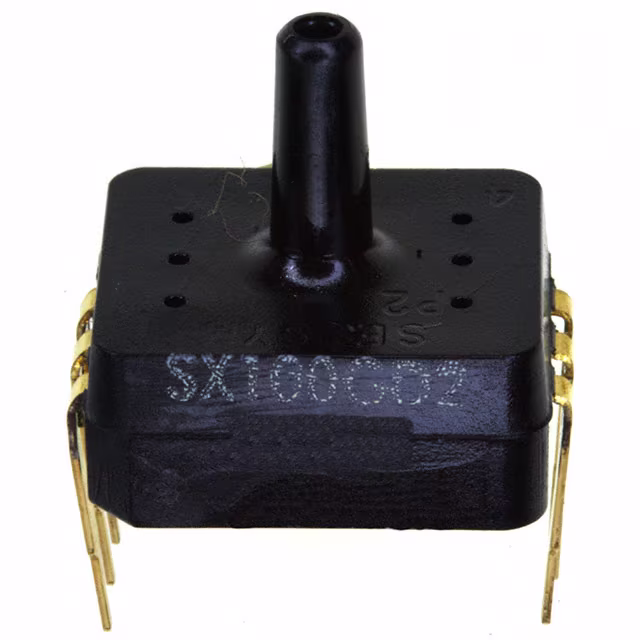

SX100GD2SENSOR 100PSIG 0.11" .15V 6DIP |
0 |
|
Технический лист |
- | 6-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.5% | 12V | Male - 0.11" (2.67mm) Tube | Barbless | - | - | 150PSI (1034.21kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|

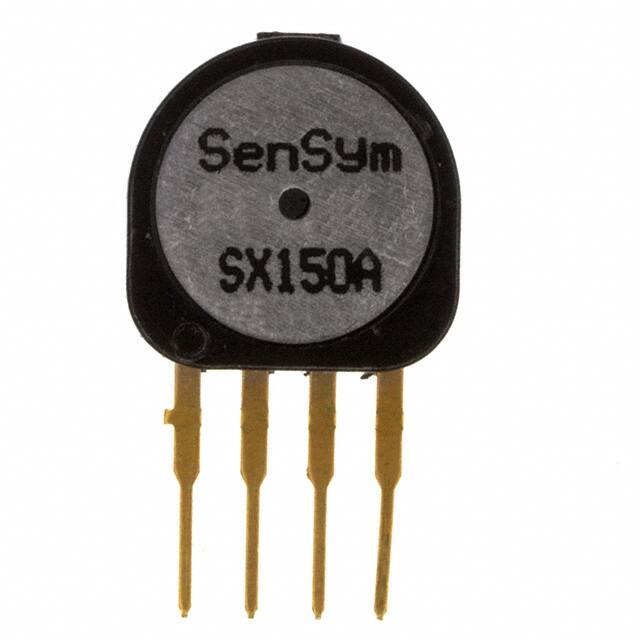

SX150ASENSOR 100PSIA .11V BUTTON |
0 |
|
Технический лист |
- | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | - | No Port | - | - | 200PSI (1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | Button |
|
SX150DSENSOR 100PSID .11V BUTTON |
0 |
|
Технический лист |
- | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | - | No Port | - | - | 200PSI (1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | Button |
|

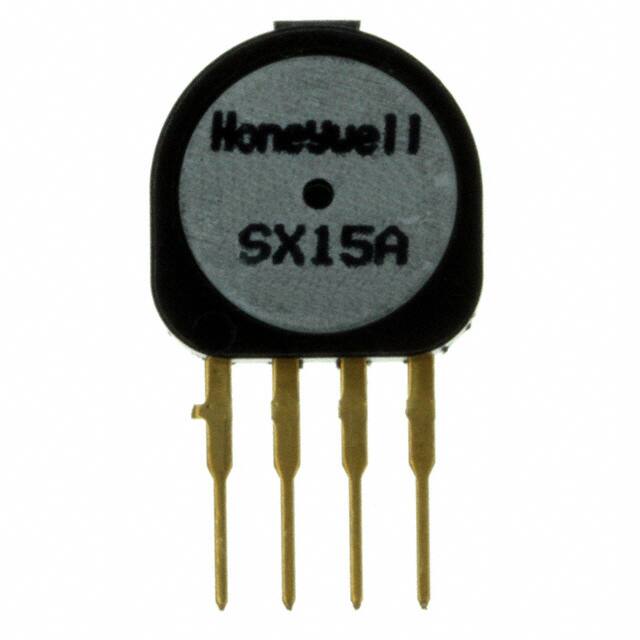

SX15ASENSOR 15PSIA .11V BUTTON |
0 |
|
Технический лист |
- | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | - | No Port | - | - | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | Button |
|

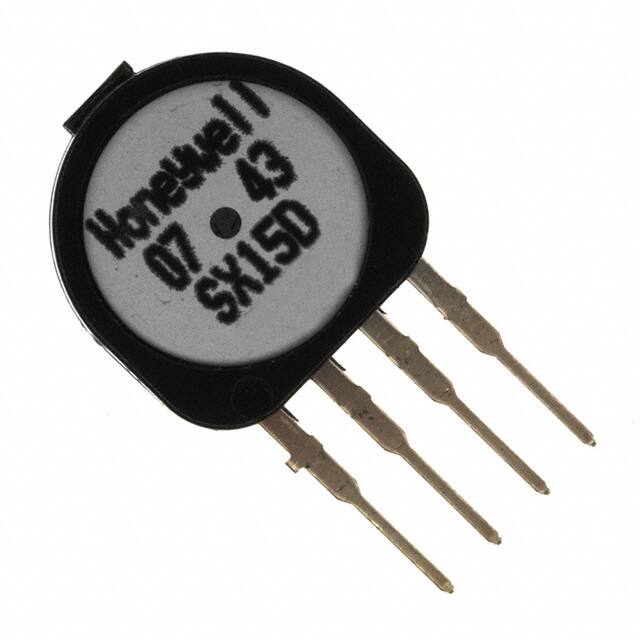

SX15DSENSOR 15PSID .11V BUTTON |
0 |
|
Технический лист |
- | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | - | No Port | - | - | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | Button |
|

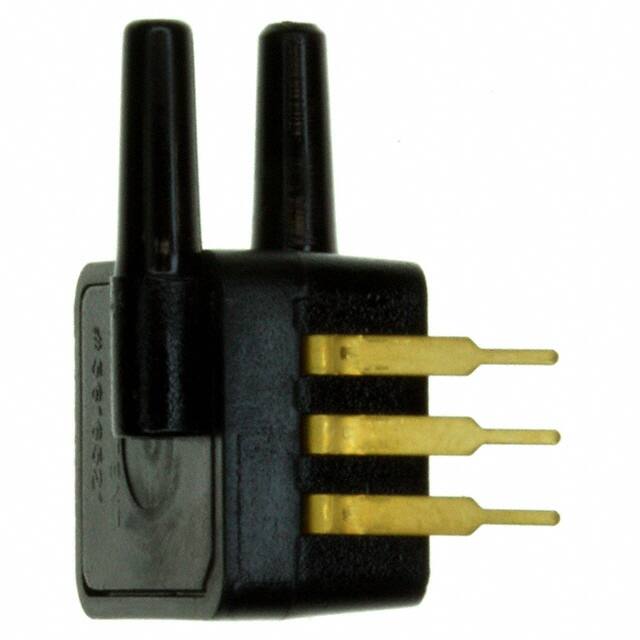

SX15DD4SENSOR 15PSID 0.09" .11V 6DIP |
0 |
|
Технический лист |
- | 6-DIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | Male - 0.09" (2.28mm) Tube, Dual | Barbless | - | - | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|

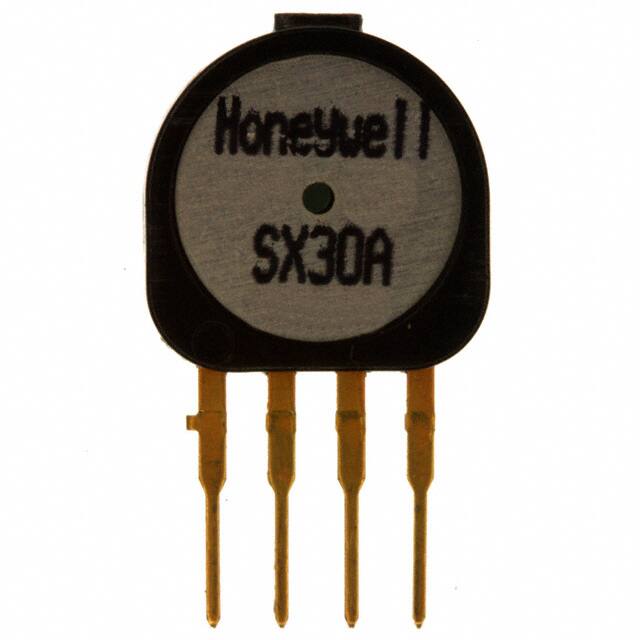

SX30ASENSOR 30PSIA .11V BUTTON |
0 |
|
Технический лист |
- | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | - | No Port | - | - | 90PSI (620.53kPa) | -40°C ~ 85°C | - | - | Through Hole | Button |
|

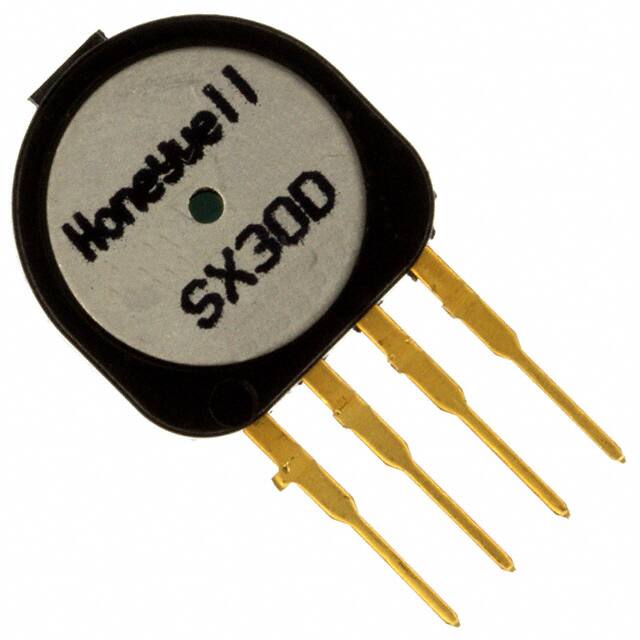

SX30DSENSOR 30PSID .11V BUTTON |
0 |
|
Технический лист |
- | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | - | No Port | - | - | 90PSI (620.53kPa) | -40°C ~ 85°C | - | - | Through Hole | Button |
|
SX30DD4SENSOR 30PSID 0.09" .11V 6DIP |
0 |
|
Технический лист |
- | 6-DIP Module | Bulk | Obsolete | Board Mount | Differential | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | Male - 0.09" (2.28mm) Tube, Dual | Barbless | - | - | 90PSI (620.53kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
1210A-002D-3LSENSOR 2PSID 0.13" 0.1V |
0 |
|
Технический лист |
- | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 2PSI (13.79kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 6PSI (41.37kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1220A-005D-3LSENSOR 5PSID 0.13" .05V |
0 |
|
Технический лист |
- | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | 1.235V | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
1210A-005G-3LSENSOR 5PSIG 0.13" 0.1V |
0 |
|
Технический лист |
- | 8-DIP Module | Bulk | Obsolete | - | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PCB | 20PSI (137.9kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1230-015A-3LSENSOR 15PSIA 0.13" 0.1V |
0 |
|
Технический лист |
1230 | 8-DIP Module | Tray | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1240-015D-3LSENSOR 15PSID 0.13" .05V |
0 |
|
Технический лист |
1240 | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | 1.235V | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1230-015G-3LSENSOR 15PSIG 0.13" 0.1V |
0 |
|
Технический лист |
1230 | 8-DIP Module | Bulk | Obsolete | - | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PCB | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1230-030A-3LSENSOR 30PSIA 0.13" 0.1V |
0 |
|
Технический лист |
1230 | 8-DIP Module | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
1230-030G-3LSENSOR 30PSIG 0.13" 0.1V |
0 |
|
Технический лист |
1230 | 8-DIP Module | Bulk | Obsolete | - | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PCB | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
1230-050A-3LSENSOR 50PSIA 0.13" 0.1V |
0 |
|
Технический лист |
1230 | 8-DIP Module | Bulk | Obsolete | - | Absolute | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PCB | 50PSI (344.74kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
1230-050G-3LSENSOR 50PSIG 0.13" 0.1V |
0 |
|
Технический лист |
1230 | 8-DIP Module | Bulk | Obsolete | - | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PCB | 50PSI (344.74kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
