Датчики давления, преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Применение | Тип давления | Рабочее давление | Тип выхода | Выход | Точность | Напряжение - Питание | Размер порта | Тип порта | Особенности | Тип вывода | Максимальное давление | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCMAND100MDAB5SENSOR 1.45PSID 0.19" 4.75V 8SMD |
0 |
|
Технический лист |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Differential | 1.45PSI (10kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 20.31PSI (140kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCMRND100MDAB5SENSOR 1.45PSID 0.08" 4.75V 8SMD |
0 |
|
Технический лист |
TruStability® HSC | 8-SMD, J-Lead, Side Port | Bulk | Obsolete | Board Mount | Differential | ±1.45PSI (±10kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCMLND001PGSA3SENSOR 1PSIG 0.1" 12BIT 8SMD |
0 |
|
Технический лист |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | J Lead | 10PSI (68.95kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMLND030PD2A3SENSOR 30PSID 0.1" 12BIT 8SMD |
0 |
|
Технический лист |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Differential | ±30PSI (±206.84kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | J Lead | ±120PSI (±827.37kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMRND001PDAA5SENSOR 1PSID 0.08" 4.5V 8SMD |
0 |
|
Технический лист |
TruStability® HSC | 8-SMD, J-Lead, Side Port | Bulk | Obsolete | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
ELVH-L05D-HRRJ-I-NAA5SENSOR 0.17PSID 0.06" |
0 |
|
Технический лист |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.15PSI ~ 0.17PSI (-1kPa ~ 1.2kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 10.88PSI (75kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
ELVH-L10D-HRRJ-I-NAA4SENSOR 0.36PSID 0.06" |
0 |
|
Технический лист |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.29PSI ~ 0.36PSI (-2kPa ~ 2.5kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 12.62PSI (87kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
|
ELVH-L10D-HRRJ-I-NAA5SENSOR 0.36PSID 0.06" |
0 |
|
Технический лист |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.29PSI ~ 0.36PSI (-2kPa ~ 2.5kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 12.62PSI (87kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
ELVH-005D-HRRD-I-NAA5SENSOR 4.93PSID 0.06" 8DIP |
0 |
|
Технический лист |
ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Tray | Active | - | Differential | -0.44PSI ~ 4.93PSI (-3kPa ~ 34kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCSNBD001PDAA5SENSOR 1PSID 0.19" 4.5V 4SIP |
0 |
|
Технический лист |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSSND060PA2A3SENSOR 60PSIA 12BIT 4SIP |
0 |
|
Технический лист |
TruStability® SSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 60PSI (413.69kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSSND060PG2A3SENSOR 60PSIG 12BIT 4SIP |
0 |
|
Технический лист |
TruStability® SSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 60PSI (413.69kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSSND150PA2A3SENSOR 150PSIA 12BIT 4SIP |
0 |
|
Технический лист |
TruStability® SSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSNBD005PDAA5SENSOR 5PSID 0.19" 4.5V 4SIP |
0 |
|
Технический лист |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NSCSHHN100PDUNVSENSOR 100PSID 0.16" .1725V 4SIP |
0 |
|
Технический лист |
TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 172.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | - | PC Pin | ±250PSI (±1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NSCSHHN030NDUNVTRUSTABLITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TSCSSNN030PGUCVTRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

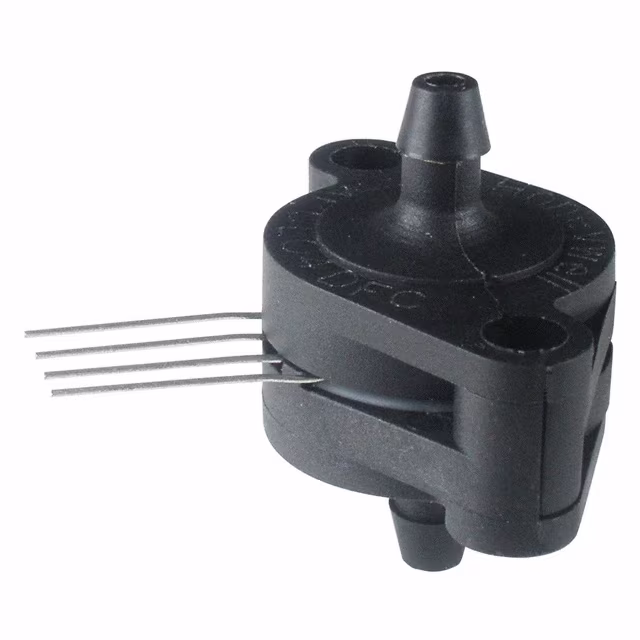

HSCSFFT005PDAA5SENSOR 5PSID 0.19" 4.5V 4SIP |
0 |
|
Технический лист |
TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSHNT2.5BAAA5SENSOR 36.26PSIA 0.19" 4.5V 4SIP |
0 |
|
Технический лист |
TruStability® HSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 36.26PSI (250kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 87.02PSI (600kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSANN100PGAA5SENSOR 100PSIG 0.19" 4.5V 4SIP |
0 |
|
Технический лист |
TruStability® HSC | 4-SIP, Side Port | Bulk | Discontinued | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
