| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Применение | Тип давления | Рабочее давление | Тип выхода | Выход | Точность | Напряжение - Питание | Размер порта | Тип порта | Особенности | Тип вывода | Максимальное давление | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSCDANT150PGSA3SENSOR 150PSIG 0.19" 12BIT 8DIP |
0 |
|
Технический лист |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDANT100PGAA3SENSOR 100PSIG 0.19" 2.97V 8DIP |
0 |
|
Технический лист |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCSAAT001PGAA5SENSOR 1PSIG 0.19" 4.5V 4SIP |
0 |
|
Технический лист |
TruStability® SSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCDANN030PG2A3SENSOR 30PSIG 0.19" 12BIT 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANN100MDSA5SENSOR 1.45PSID 0.19" 12BIT 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Differential | ±1.45PSI (±10kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANN100PG2A3SENSOR 100PSIG 0.19" 12BIT 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

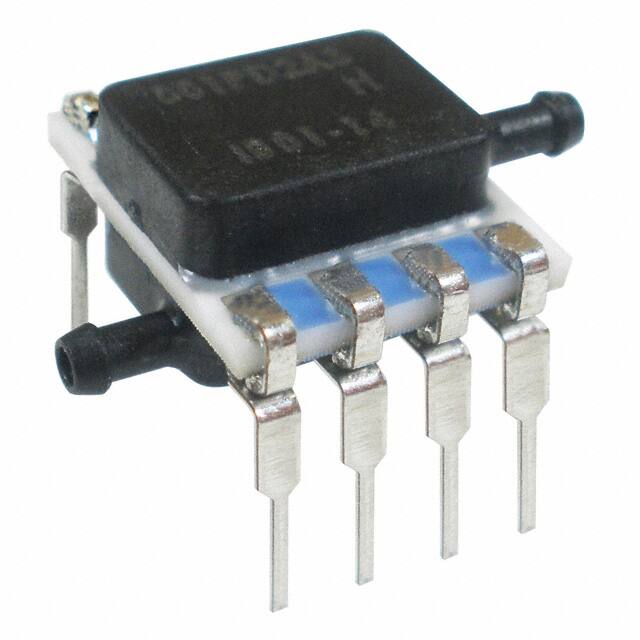

HSCDDRN001BDSA5SENSOR 14.5PSID 0.08" 12BIT 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | 14.5PSI (100kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDDRN250MDSA5SENSOR 3.63PSID 0.08" 12BIT 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±3.63PSI (±25kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDDRN400MDSA5SENSOR 5.8PSID 0.08" 12BIT 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±5.8PSI (±40kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±29.01PSI (±200kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDLNN001BDAA5SENSOR 14.5PSID 0.1" 4.5V 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Differential | ±14.5PSI (±100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±58.02PSI (±400kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDLNN2.5BGAA5SENSOR 36.26PSIG 0.1" 4.5V 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 36.26PSI (250kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDRRN001PDAA3SENSOR 1PSID 0.08" 2.97V 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRN010KDSA3SENSOR 1.45PSID 0.08" 12BIT 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1.45PSI (±10kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRN160MDAA3SENSOR 2.32PSID 0.08" 2.97V 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±2.32PSI (±16kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANN005PG7A3SENSOR 5PSIG 0.19" 12BIT 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANN015PG2A3SENSOR 15PSIG 0.19" 12BIT 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANN060PASA3SENSOR 60PSIA 0.19" 12BIT 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Absolute | 60PSI (413.69kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANN1.6BDSA5SENSOR 23.21PSID 0.19" 12BIT DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Differential | ±23.21PSI (±160kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±116.03PSI (±800kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDJNN030PAAA5SENSOR 30PSIA 0.09" 4.5V 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.09" (2.34mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDRNN005PGAA3SENSOR 5PSIG 0.08" 2.97V 8DIP |
0 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
