Датчики давления, преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Применение | Тип давления | Рабочее давление | Тип выхода | Выход | Точность | Напряжение - Питание | Размер порта | Тип порта | Особенности | Тип вывода | Максимальное давление | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NSCDRNN100PAUNVSENSOR 100PSIA 0.08" .063V 8DIP |
0 |
|
Технический лист |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Obsolete | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 63 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube | Barbed | PC Polished | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCMLNN040MDAA3SENSOR 0.58PSID 0.1" 2.97V 8SMD |
0 |
|
Технический лист |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Differential | ±0.58PSI (±4kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | J Lead | ±12.33PSI (±85kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
ND110-SM02-TSENSOR 0.36PSID 0.08" 16BIT |
0 |
|
Технический лист |
ND | 11-SMD, No Lead, Top Port | Tray | Active | Industrial Automation | Differential | 0.02PSI ~ 0.36PSI (0.13kPa ~ 2.5kPa) | I2C, SPI | 16 b | ±0.05% | 3.5V ~ 2.8V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 1.45PSI (9.96kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
HSCSMNT001PDAA5SENSOR 1PSID 4.5V 4SIP |
0 |
|
Технический лист |
TruStability® HSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSSNT030PGAA5SENSOR 300PSIG 4.5V 4SIP |
0 |
|
Технический лист |
TruStability® HSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSSNT100PGAA5SENSOR 100PSIG 4.5V 4SIP |
0 |
|
Технический лист |
TruStability® HSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCMAND010BG2A5SENS 145.04PSIG 0.19" 12BIT SMT |
5 |
|
Технический лист |
TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 145.04PSI (1000kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 246.56PSI (1700kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
ELVH-030A-HNNJ-I-N2A4SENSOR 30.02PSIA 14BIT |
0 |
|
Технический лист |
ELV | 8-SMD, J-Lead | Tray | Active | - | Absolute | 30PSI (206.84kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | - | No Port | Temperature Compensated | J Lead | 60.05PSI (414kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
|
ELVH-B001G-HRNJ-C-NAA5SENSOR 14.5PSIG 0.06" |
0 |
|
Технический лист |
ELV | 8-SMD, J-Lead, Side Port | Tray | Active | - | Gauge | 14.5PSI (100kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube | Barbed | Temperature Compensated | J Lead | 29.01PSI (200kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
ELVH-001D-HRRJ-C-NAA4SENSOR 1.02PSID 0.06" |
0 |
|
Технический лист |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -1.02PSI ~ 1.02PSI (-7kPa ~ 7kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
ELVH-015A-HRNJ-I-NSA5SENSOR 14.94PSIA 0.06" 14BIT |
0 |
|
Технический лист |
ELV | 8-SMD, J-Lead, Side Port | Tray | Active | - | Absolute | 15PSI (103.42kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube | Barbed | Temperature Compensated | J Lead | 14.94PSI (103kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
SSCMNND150PA2A3SENSOR 150PSIA 12BIT 8SMT |
0 |
|
Технический лист |
TruStability® SSC | 8-SMD, J-Lead | Bulk | Discontinued | Board Mount | Absolute | 150PSI (1034.21kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
SSCMRRN060MDSA5SENSOR 0.87PSID 0.08" 12BIT 8SMT |
0 |
|
Технический лист |
TruStability® SSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.87PSI (±6kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±12.33PSI (±85kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|

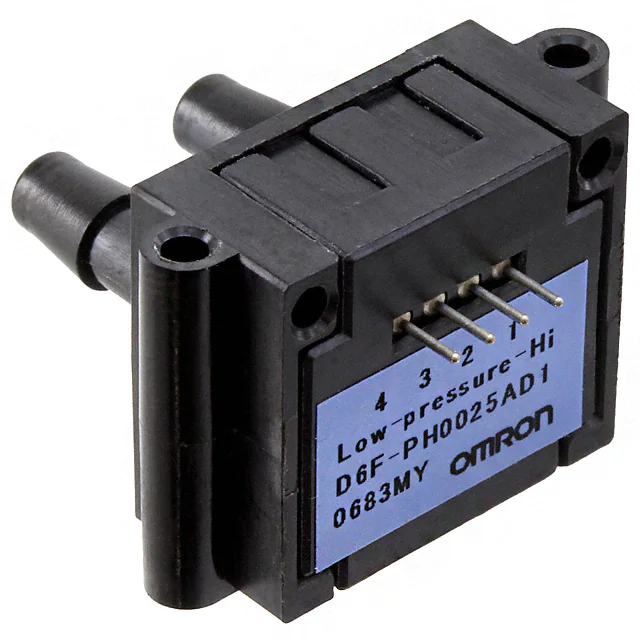

D6F-PH0025AD1SENSOR 0.04PSID 0.19" 12BIT 4SIP |
0 |
|
Технический лист |
D6F-PH | 4-SIP, Dual Top Ports | Bulk | Obsolete | - | Differential | 0.04PSI (0.25kPa) | I2C | 12 b | ±3% | 2.3V ~ 3.6V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 1.45PSI (10kPa) | -20°C ~ 80°C | - | - | Through Hole | 4-SIP |
|

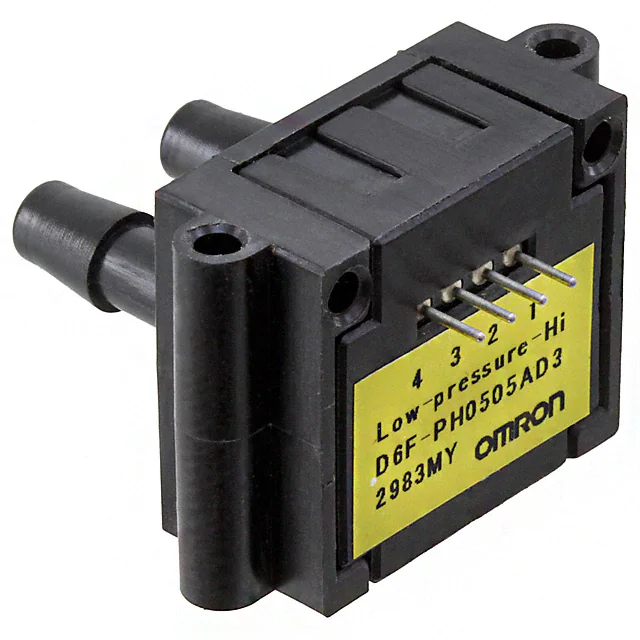

D6F-PH0505AD3SENSOR 0.01PSID 0.19" 12BIT 4SIP |
0 |
|
Технический лист |
D6F-PH | 4-SIP, Dual Top Ports | Bulk | Obsolete | - | Differential | -0.01PSI ~ 0.01PSI (-0.05kPa ~ 0.05kPa) | I2C | 12 b | ±3% | 2.3V ~ 3.6V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 1.45PSI (10kPa) | -20°C ~ 80°C | - | - | Through Hole | 4-SIP |
|
|
ELVH-L01D-HRRD-C-NAA4SENSOR 0.03PSID 0.06" 8DIP |
0 |
|
Технический лист |
ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Tray | Active | - | Differential | 0.03PSI (0.2kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 9.72PSI (67kPa) | 0°C ~ 50°C | - | - | Through Hole | 8-DIP |
|
|
ELVH-L01D-HRRD-C-NAA5SENSOR 0.03PSID 0.06" 8DIP |
0 |
|
Технический лист |
ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Tray | Active | - | Differential | 0.03PSI (0.2kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 9.72PSI (67kPa) | 0°C ~ 50°C | - | - | Through Hole | 8-DIP |
|
|
LER00150TAYNKCAA01SENSOR 15PSIG SPDT 1/4"NPT |
0 |
|
Технический лист |
LE | Cylinder, Threaded | Bulk | Obsolete | - | Gauge | 15PSI (103.42kPa) | SPDT | - | - | 28V | Male - 1/4" (6.35mm) NPT | Threaded | - | Connector | 500PSI (3447.38kPa) | -40°C ~ 120°C | - | - | - | - |
|
ELVH-150G-HAND-I-N2A4SENSOR 149.97PSIG 0.19" 14BIT |
0 |
|
Технический лист |
ELV | 8-DIP (0.524", 13.30mm), Side Port | Tray | Active | - | Gauge | 150PSI (1034.21kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 250.05PSI (1724kPa) | -20°C ~ 85°C | - | - | Through Hole | - |
|
ELVH-015G-HAND-I-N2A4SENSOR 14.94PSIG 0.19" 14BIT |
0 |
|
Технический лист |
ELV | 8-DIP (0.524", 13.30mm), Side Port | Tray | Active | - | Gauge | 15PSI (103.42kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 30.02PSI (207kPa) | -20°C ~ 85°C | - | - | Through Hole | - |
