Датчики давления, преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Применение | Тип давления | Рабочее давление | Тип выхода | Выход | Точность | Напряжение - Питание | Размер порта | Тип порта | Особенности | Тип вывода | Максимальное давление | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T2314SENSOR TRANSMITTER 15.95PSI |
18 |
|
Технический лист |
- | Module Box with Display | Box | Active | - | - | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) | Analog, RS-232 | - | ±0.018PSI (± 0.125kPa) | 9V ~ 30V | - | No Port | - | - | - | -30°C ~ 80°C | - | - | - | - |
|

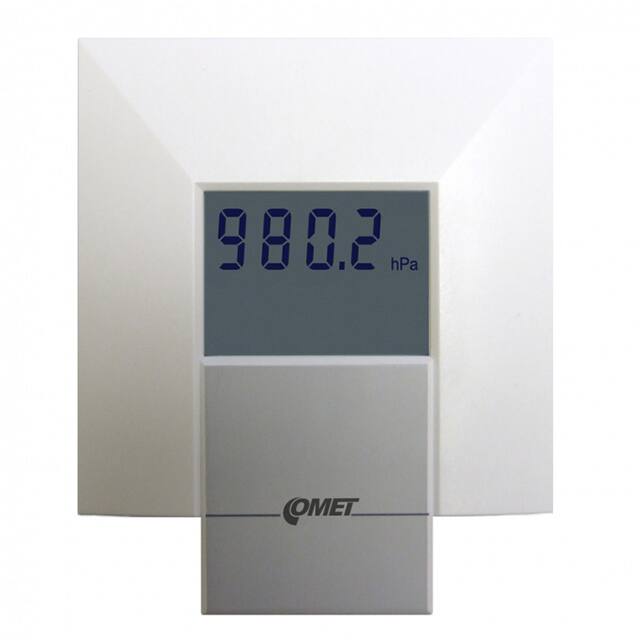

T2118SENSOR 15.95PSI .02A |
18 |
|
Технический лист |
- | Module Box with Display | Bulk | Active | - | - | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) | Analog Current | 4 mA ~ 20 mA | ±0.018PSI (± 0.125kPa) | 9V ~ 30V | - | - | - | - | - | -10°C ~ 50°C | - | - | - | - |
|
T2218SENSOR 15.95PSI 10V |
13 |
|
Технический лист |
- | Module Box with Display | Bulk | Active | - | - | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) | Analog Voltage | 0 V ~ 10 V | ±0.018PSI (± 0.125kPa) | 15V ~ 30V | - | - | - | - | - | -10°C ~ 50°C | - | - | - | - |
|
13C5000PA6KSENSOR 5000PSIA 7/16" .152V |
0 |
|
- |
13 mm | Cylinder, Threaded | Bulk | Active | - | Absolute | 5000PSI (34473.79kPa) | Wheatstone Bridge | 148 mV ~ 152 mV | ±0.25% | 15V | Male - 7/16" (11.11mm) UNF | Threaded | Temperature Compensated | Flex Cable | 10000PSI (68947.57kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PT40-3000PSIG-1-1-2-7High Accuracy Fixed Range Pressu |
21 |
|
Технический лист |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 3000PSI (20684.27kPa) | Analog Current | 4 ~ 20 mA | ±0.25% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 6000PSI (41368.54kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-10000PSIG-1-1-2-7High Accuracy Fixed Range Pressu |
5 |
|
Технический лист |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 10000PSI (68947.57kPa) | Analog Current | 4 ~ 20 mA | ±0.25% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 20000PSI (137895.15kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-2000PSIG-1-5-2-7High Accuracy Fixed Range Pressu |
2 |
|
Технический лист |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 2000PSI (13789.51kPa) | Analog Voltage | 0 V ~ 10 V | ±0.25% | 14V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 4000PSI (27579.03kPa) | -20°C ~ 80°C | - | - | - | - |
|
T2214SENSOR 15.95PSI 10V |
10 |
|
Технический лист |
- | Module Box with Display | Box | Active | - | - | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) | Analog Voltage | 0 V ~ 10 V | ±0.018PSI (± 0.125kPa) | 15V ~ 30V | - | No Port | - | - | - | -30°C ~ 80°C | - | - | - | - |
|
T2114SENSOR 15.95PSI .02A |
2 |
|
Технический лист |
- | Module Box with Display | Box | Active | - | - | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) | Analog Current | 4 mA ~ 20 mA | ±0.018PSI (± 0.125kPa) | 9V ~ 30V | - | No Port | - | - | - | -30°C ~ 80°C | - | - | - | - |
|
154BC-S-030PG-CSENSOR 30PSIG 0.1V |
0 |
|
Технический лист |
- | Module | Tube | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | - | No Port | Temperature Compensated | Connector | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | - | - |
|
82-050G-RTSENSOR 50PSIG 0.1V |
0 |
|
Технический лист |
- | - | Tube | Active | Board Mount | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Flex Cable | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PT40-150PSIG-1-1-2-25High Accuracy Fixed Range Pressu |
25 |
|
Технический лист |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 150PSI (1034.21kPa) | Analog Current | 4 ~ 20 mA | ±0.25% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 450PPSI (3102.64kPa) | -20°C ~ 80°C | - | - | - | - |
|
154BC-S-012BA-CSENSOR 174.05PSIA 0.1V |
0 |
|
Технический лист |
- | Module | Tube | Active | Board Mount | Absolute | 174.05PSI (1200kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | - | No Port | Temperature Compensated | Connector | 348.09PSI (2400kPa) | -40°C ~ 125°C | - | - | - | - |
|
PR52-33PSENSOR 1000PSIG |
4 |
|
- |
PR52 | IoT Finished Device | Box | Active | - | Gauge | 1000PSI (6894.76kPa) | - | - | ±0.5% | - | - | - | - | - | - | -40°C ~ 85°C | - | - | - | - |
|
|
PT40-150PSIG-2-5-2-7High Accuracy Fixed Range Pressu |
10 |
|
Технический лист |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0 V ~ 10 V | ±0.125% | 14V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 450PPSI (3102.64kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-300PSIG-2-1-2-25High Accuracy Fixed Range Pressu |
7 |
|
Технический лист |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 300PSI (2068.43kPa) | Analog Current | 4 ~ 20 mA | ±0.125% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 600PSI (4136.85kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-200PSIG-2-5-2-25High Accuracy Fixed Range Pressu |
4 |
|
Технический лист |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 200PSI (1378.95kPa) | Analog Voltage | 0 V ~ 10 V | ±0.125% | 14V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 600PSI (4136.85kPa) | -20°C ~ 80°C | - | - | - | - |
|

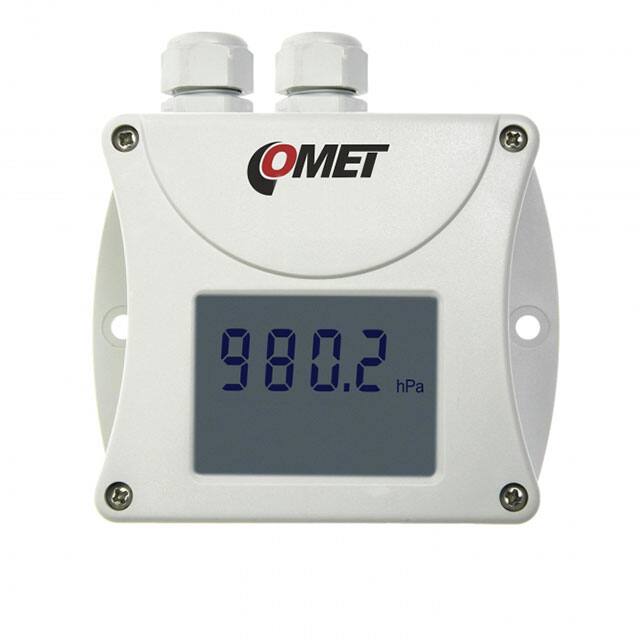

T2414SENSOR TRANSMITTER 15.95PSI |
17 |
|
Технический лист |
- | Module Box with Display | Box | Active | - | - | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) | Analog, RS-485 | - | ±0.018PSI (± 0.125kPa) | 9V ~ 30V | - | No Port | - | - | - | -30°C ~ 80°C | - | - | - | - |
|
T2514SENSOR 15.95PSI |
20 |
|
Технический лист |
- | Module Box with Display | Bulk | Active | - | - | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) | - | - | ±0.018PSI (± 0.125kPa) | 9V ~ 30V | - | - | - | - | - | -30°C ~ 80°C | - | - | - | - |
|
|
1230-L1222-W750GPRESSURE SENSOR |
7 |
|
- |
1230 | - | Bulk | Obsolete | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
