Силовые трансформаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Напряжение - Первичный | Напряжение - Вторичный (полная нагрузка) | Ток - выход (макс.) | Первичная обмотка(и) | Вторичная обмотка(и) | Средний отвод | Мощность - макс. | Тип крепления | Тип вывода | Размер/измерение | Высота - в сидячем положении (макс.) | Напряжение - Изоляция | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1182T117PPWR XFMR TOROIDAL 1500VA CHAS MT |
3 |
|
Технический лист |
1182 | Box | Active | Toroidal | 117V, 234V | Parallel 117V, Series 234V | Parallel 12.8A, Series 6.4A | Dual | Dual | No | 1500VA | Chassis Mount | Wire Leads | 187.96mm Dia | 82.55mm | 4000Vrms | 24 lbs (10.9 kg) |
|
MPI-900-48PWR XFMR LAMINATED 900VA CHAS MT |
10 |
|
Технический лист |
MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 24V, Series 48V | Parallel 37.5A, Series 18.8A | Dual, Multiple Taps | Dual | No | 900VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms | 19.8 lbs (9 kg) |
|
MT0500APWR XFMR 500VA CHAS MT |
3 |
|
Технический лист |
- | Bulk | Active | - | 220V, 230V, 240V, 440V, 460V, 480V | 110V, 115V, 120V | - | - | - | No | 500VA | Chassis Mount | Terminal Block | 150.37mm L x 133.35mm W | 144.53mm | - | - |
|

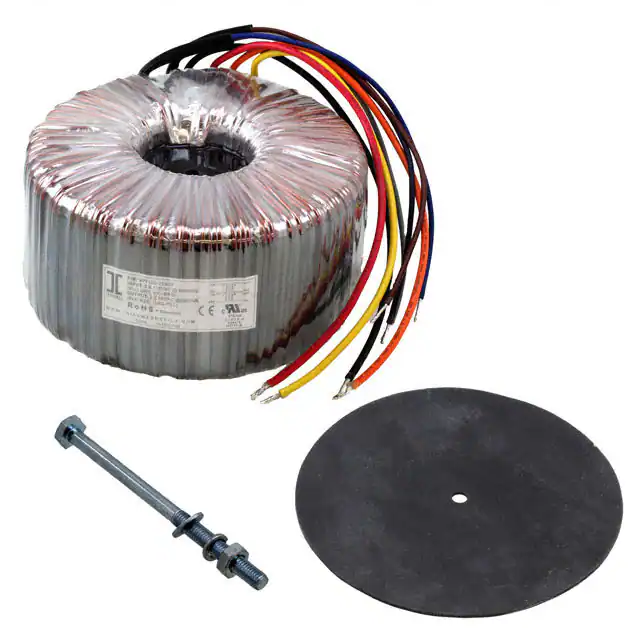

VPT100-25000PWR XFMR TOROIDAL 2500VA CHAS MT |
10 |
|
Технический лист |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 50V, Series 100V | Parallel 50A, Series 25A | Dual | Dual | No | 2500VA | Chassis Mount | Wire Leads | 208.00mm Dia x 112.00mm W | 120.0mm | 4000Vrms | 43 lbs (19.5 kg) |
|
PWDP13073PWR XFMR CHAS MT |
10 |
|
Технический лист |
PWDAHL | Case | Active | - | 120V, 240V | 1100V, 10.5V, 5.2V | 500mA, 500mA, 15A | Dual | Triple | Yes | - | Chassis Mount | Wire Leads | 146.05mm L x 111.13mm W | 133.35mm | - | - |
|
|
HS10F2ASPWR XFMR LAMINATED 2000VA CHAS |
5 |
|
Технический лист |
- | Bulk | Active | Laminated Core | 600V | 120V, 240V | 16.7A | Single | Dual | No | 2000VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
|
MT0750APWR XFMR 750VA CHAS MT |
3 |
|
Технический лист |
- | Bulk | Active | - | 220V, 230V, 240V, 440V, 460V, 480V | 110V, 115V, 120V | - | - | - | No | 750VA | Chassis Mount | Terminal Block | 182.12mm L x 133.35mm W | 144.53mm | - | - |
|
HPI-12PWR XFMR LAMINATED 1250VA CHAS |
10 |
|
Технический лист |
HPI | Bulk | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 10.9A, Series 5.4A | Dual, Multiple Taps | Dual | No | 1250VA | Chassis Mount | Terminal Block | 179.30mm L x 129.60mm W | 154.90mm | 4000Vrms | 31 lbs (14.1 kg) |
|
|
CE1000THPWR XFMR LAMINATED 1000VA CHAS |
5 |
|
Технический лист |
Ice International | Bulk | Active | Laminated Core | - | 120V, 240V | - | Single, Multiple Taps | - | Yes | 1000VA | Chassis Mount | Solder, Quick Connect | 162.10mm L x 152.40mm W | 5.630" (143.00mm) | - | - |
|
16-100PWR XFMR LAMINATED 1600VA CHAS |
5 |
|
Технический лист |
- | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 8V, Series 16V | Parallel 200A, Series 100A | Single, Multiple Taps | Single, Multiple Taps | Yes | 1600VA | Chassis Mount | Solder, Quick Connect | 190.50mm L x 190.50mm W | 162.00mm | 1500Vrms | 50 lbs (22.7 kg) |
|
CE1000MHPWR XFMR LAMINATED 1000VA CHAS |
18 |
|
Технический лист |
Ice International | Bulk | Active | Laminated Core | - | - | - | Single, Multiple Taps | - | Yes | 1000VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
|
CE750MCPWR XFMR LAMINATED 750VA CHAS MT |
3 |
|
Технический лист |
Ice International | Bulk | Active | Laminated Core | 208V, 240V, 415V, 480V, 600V | - | - | Single, Multiple Taps | Dual | No | 750VA | Chassis Mount | Solder, Quick Connect | 162.10mm L x 152.40mm W | 143.00mm | - | - |
|
MED1500PWR XFMR TOROIDAL 1500VA CHAS MT |
5 |
|
Технический лист |
- | Bulk | Active | Toroidal | 100V, 120V | Parallel 120V, Series 240V | Parallel 12.5A, Series 6.25A | Dual, Multiple Taps | Dual | No | 1500VA | Chassis Mount | Wire Leads | - | 99.06mm | - | 26 lbs (11.8 kg) |
|
|
HS14F1.5BSPWR XFMR LAMINATED 1500VA CHAS |
2 |
|
Технический лист |
- | Bulk | Active | Laminated Core | - | - | 13.6A | Dual, Multiple Taps | Dual | No | 1500VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
737APWR XFMR LAMINATED 1200VA CHAS |
2 |
|
Технический лист |
700 | Bulk | Active | Laminated Core | 117V, 234V | 3000V | 400mA | Single | Single | Yes | 1200VA | Chassis Mount | Wire Leads | 177.80mm L x 127.00mm W | 165.10mm | - | 29 lbs (13.2 kg) |
|
|
HS14F2CS-CEPWR XFMR LAMINATED 2000VA CHAS |
2 |
|
Технический лист |
- | Bulk | Active | Laminated Core | - | - | 18.2A | Dual, Multiple Taps | Dual | No | 2000VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|

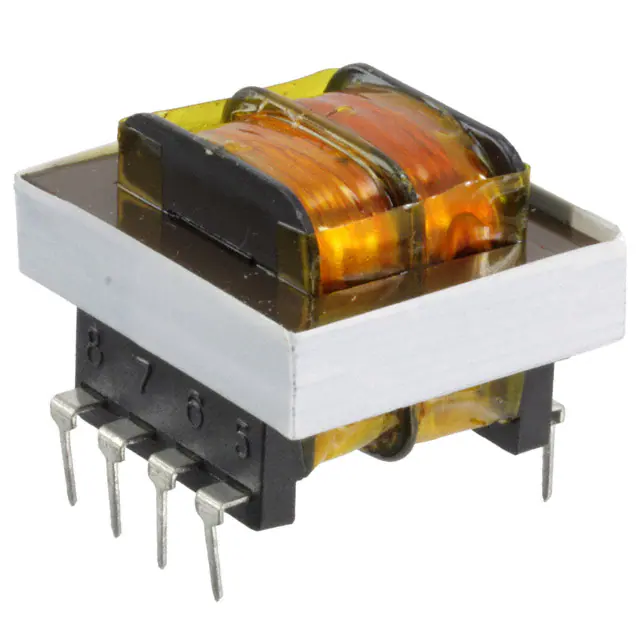

F24-045-C2PWR XFMR LAMINATED 1.1VA TH |
95 |
|
Технический лист |
Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 90mA, Series 45mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
3FS-348PWR XFMR LAMINATED 2.4VA TH |
63 |
|
Технический лист |
3FS-3xx | Tube | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 100mA, Series 50mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms | - |
|

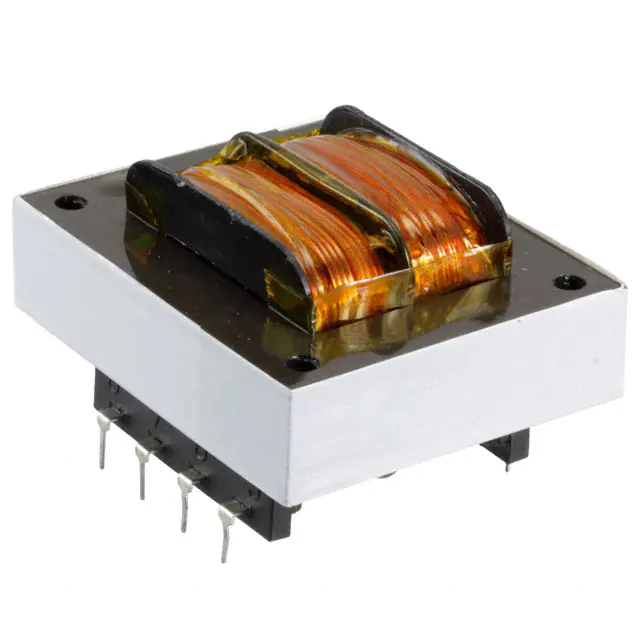

F36-65PWR XFMR LAMINATED 2.5VA TH |
36 |
|
Технический лист |
Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
FP34-75PWR XFMR LAMINATED 2.5VA TH |
81 |
|
Технический лист |
Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 150mA, Series 75mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
