Главная > Продукты > Трансформаторы > Силовые трансформаторы

Силовые трансформаторы

Номер производителя	Наличие	Цена	Количество	Технический лист	Серия	Упаковка	Состояние продукта	Тип	Напряжение - Первичный	Напряжение - Вторичный (полная нагрузка)	Ток - выход (макс.)	Первичная обмотка(и)	Вторичная обмотка(и)	Средний отвод	Мощность - макс.	Тип крепления	Тип вывода	Размер/измерение	Высота - в сидячем положении (макс.)	Напряжение - Изоляция	Вес

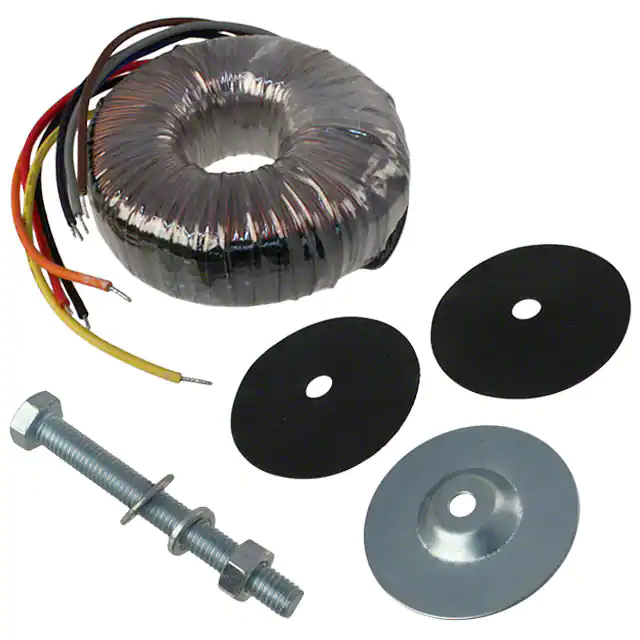

VPT18-2780 PWR XFMR TOROIDAL 50VA CHAS MT Triad Magnetics	30	-	Запрос цены	Технический лист	Chassis Mount: World Series™	Box	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 5.56A, Series 2.78A	Dual	Dual	No	50VA	Chassis Mount	Wire Leads	80.00mm Dia x 33.00mm W	36.0mm	4000Vrms	1.4 lbs (635 g)
62052 PWR XFMR TOROIDAL 15VA CHAS MT Talema Group LLC	78	-	Запрос цены	Технический лист	Standard Mini	Tray	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 1.25A, Series 625mA	Dual	Dual	No	15VA	Chassis Mount	Wire Leads	-	24.00mm	4000Vrms	0.578 lb (262.18 g)
241-8-12 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	50	-	Запрос цены	Технический лист	Two-4-One™	Box	Active	Laminated Core	115V	12.6V	8A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)
241-8-10 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	18	-	Запрос цены	Технический лист	Two-4-One™	Box	Active	Laminated Core	115V	10V	10A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)
62053 PWR XFMR TOROIDAL 15VA CHAS MT Talema Group LLC	27	-	Запрос цены	Технический лист	Standard Mini	Tray	Active	Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 1A, Series 500mA	Dual	Dual	No	15VA	Chassis Mount	Wire Leads	-	24.00mm	4000Vrms	0.578 lb (262.18 g)
166G9 PWR XFMR LAMINATED 4.5VA CHAS MT Hammond Manufacturing	15	-	Запрос цены	Технический лист	166	Bulk	Active	Laminated Core	115V	9V	500mA	Single	Single	Yes	4.5VA	Chassis Mount	Wire Leads	60.45mm L x 35.05mm W	35.05mm	2000Vrms	0.4 lb (181.44 g)
DP-241-8-20 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	46	-	Запрос цены	Технический лист	Two-4-One™	Box	Active	Laminated Core	115V, 230V	20V	5A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)
DP-241-8-56 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	18	-	Запрос цены	Технический лист	Two-4-One™	Bulk	Active	Laminated Core	115V, 230V	56V	1.8A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)
DP-241-8-28 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	89	-	Запрос цены	Технический лист	Two-4-One™	Box	Active	Laminated Core	115V, 230V	28V	3.6A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)
DP-241-8-16 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	38	-	Запрос цены	Технический лист	Two-4-One™	Box	Active	Laminated Core	115V, 230V	16V	6.25A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)
166L8 PWR XFMR LAMINATED 17VA CHAS MT Hammond Manufacturing	16	-	Запрос цены	Технический лист	166	Bulk	Active	Laminated Core	115V	8.5V	2A	Single	Single	Yes	17VA	Chassis Mount	Wire Leads	71.37mm L x 38.10mm W	42.93mm	2000Vrms	0.9 lb (408.23 g)
DP-241-8-24L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	20	-	Запрос цены	Технический лист	Two-4-One™	Bulk	Active	Laminated Core	115V, 230V	24V	4A	Dual	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)

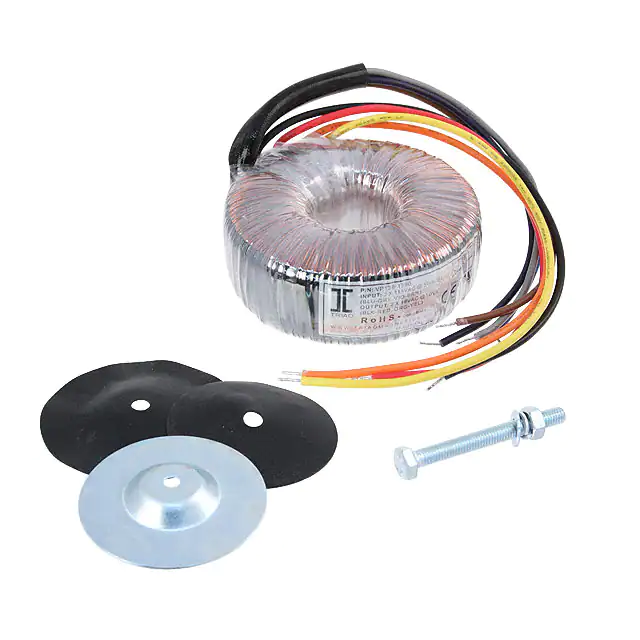

VPT36-1390 PWR XFMR TOROIDAL 50VA CHAS MT Triad Magnetics	76	-	Запрос цены	Технический лист	Chassis Mount: World Series™	Box	Active	Toroidal	115V, 230V	Parallel 18V, Series 36V	Parallel 2.78A, Series 1.39A	Dual	Dual	No	50VA	Chassis Mount	Wire Leads	80.00mm Dia x 33.00mm W	36.0mm	4000Vrms	1.4 lbs (635 g)
VPT12-4170 PWR XFMR TOROIDAL 50VA CHAS MT Triad Magnetics	63	-	Запрос цены	Технический лист	Chassis Mount: World Series™	Box	Active	Toroidal	115V, 230V	Parallel 6V, Series 12V	Parallel 8.34A, Series 4.17A	Dual	Dual	No	50VA	Chassis Mount	Wire Leads	80.00mm Dia x 33.00mm W	36.0mm	4000Vrms	1.4 lbs (635 g)
VPT48-1040 PWR XFMR TOROIDAL 50VA CHAS MT Triad Magnetics	43	-	Запрос цены	Технический лист	Chassis Mount: World Series™	Box	Active	Toroidal	115V, 230V	Parallel 24V, Series 48V	Parallel 2.08A, Series 1.04A	Dual	Dual	No	50VA	Chassis Mount	Wire Leads	80.00mm Dia x 33.00mm W	36.0mm	4000Vrms	1.4 lbs (635 g)
70073K PWR XFMR TOROIDAL 35VA TH Talema Group LLC	76	-	Запрос цены	Технический лист	7XXXX	Tray	Active	Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 2.332A, Series 1.166A	Dual	Dual	No	35VA	Through Hole	PC Pin	72.00mm L x 72.00mm W	37.50mm	4000Vrms	1 lb (453.59 g)
186F24 PWR XFMR LAMINATED 96VA CHAS MT Hammond Manufacturing	15	-	Запрос цены	Технический лист	186	Box	Active	Laminated Core	115V, 230V	24V	4A	Dual	Single	Yes	96VA	Chassis Mount	Solder, Quick Connect	102.36mm L x 66.68mm W	65.02mm	2000Vrms	2.6 lbs (1.2 kg)

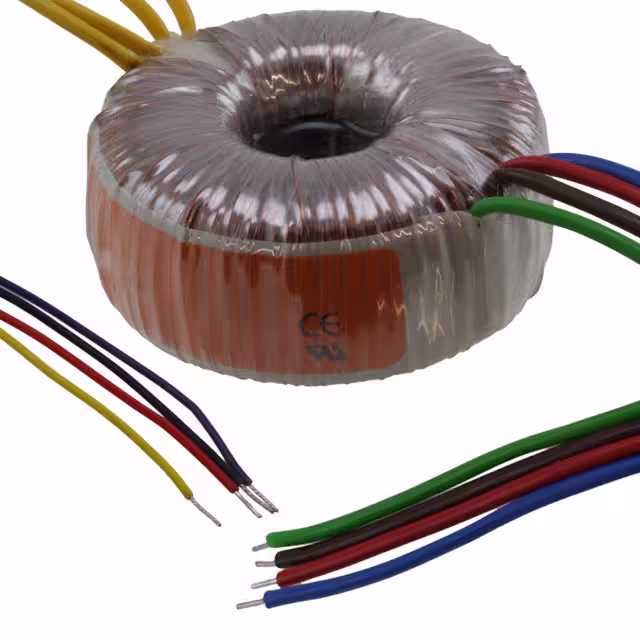

62072 PWR XFMR TOROIDAL 35VA CHAS MT Talema Group LLC	53	-	Запрос цены	Технический лист	Standard Mini	Tray	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 2.916A, Series 1.458A	Dual	Dual	No	35VA	Chassis Mount	Wire Leads	-	-	4000Vrms	1 lb (453.59 g)
VPS24-5400 PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics	52	-	Запрос цены	Технический лист	Chassis Mount: World Series™	Box	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 10.8A, Series 5.4A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	60.45mm L x 68.33mm W	85.85mm	4000Vrms	4.1 lbs (1.9 kg)
VPS28-4600 PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics	43	-	Запрос цены	Технический лист	Chassis Mount: World Series™	Box	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 9.2A, Series 4.6A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 68.33mm W	85.85mm	4000Vrms	4.1 lbs (1.9 kg)
