DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHB300W-24S12DC DC CONVERTER 12V 300W |
73 |
|
Технический лист |
CHB300W (300W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 25A | 300 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 91% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | CE, cURus | 60950-1 |
|
DCM3623T50T13A6T70DC DC CONVERTER 12V 161W |
133 |
|
Технический лист |
VI Chip® DCM® (160W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 12V | - | - | - | 13.4A | 161 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 91.5% | - | - | Through Hole | 1.52" L x 0.90" W x 0.28" H (38.72mm x 22.8mm x 7.2mm) | - | - | - | - |
|

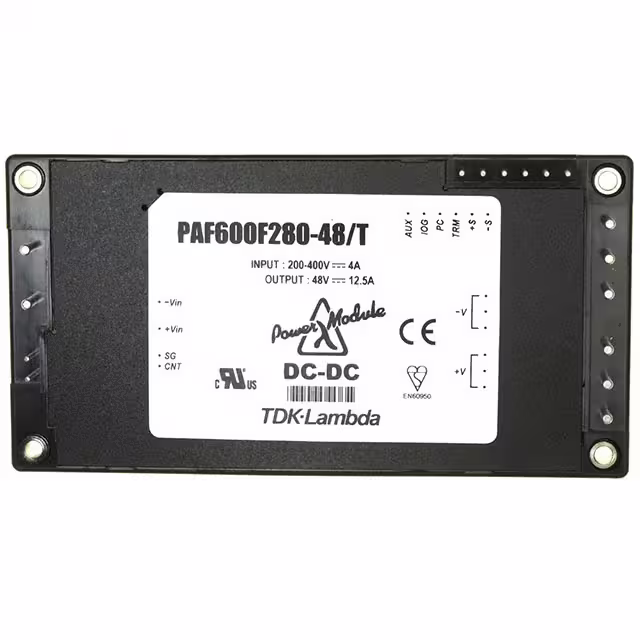

PAF600F280-48/TDC DC CONVERTER 28.8-57.6V 600W |
303 |
|
Технический лист |
PAF600F280 (600W) | Full Brick | Bulk | Not For New Designs | Isolated Module | 1 | 200V | 400V | 28.8 ~ 57.6V | - | - | - | 12.5A | 600 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 100°C | 91% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | Enable, Active Low | - | - |
|
PAF600F280-24/TDC DC CONVERTER 14.4-28.8V 600W |
217 |
|
Технический лист |
PAF600F280 (600W) | Full Brick | Tray | Not For New Designs | Isolated Module | 1 | 200V | 400V | 14.4 ~ 28.8V | - | - | - | 25A | 600 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 100°C | 91% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | Enable, Active Low | - | - |
|
PAF600F280-28/TDC DC CONVERTER 16.8-33.6V 600W |
130 |
|
Технический лист |
PAF600F280 (600W) | Full Brick | Bulk | Not For New Designs | Isolated Module | 1 | 200V | 400V | 16.8 ~ 33.6V | - | - | - | 21.5A | 600 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 100°C | 91% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | Enable, Active Low | - | - |
|
LTM4700EY#PBFDC DC CNVRTR 0.5-1.8V 0.5-1.8V |
153 |
|
Технический лист |
µModule® | 330-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 16V | 0.5 ~ 1.8V | 0.5 ~ 1.8V | - | - | 50A, 50A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 90% | - | - | Surface Mount | 0.87" L x 0.59" W x 0.31" H (22.0mm x 15.0mm x 7.9mm) | 330-BGA (22x15) | - | - | - |
|
|
DCM3623T75H40C2T00DC DC CONVERTER 36V 320.4W |
197 |
|
Технический лист |
VI Chip® DCM® (320W) | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 36V | 75V | 36V | - | - | - | 8.9A | 320.4 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 92.5% | - | - | Through Hole | 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm) | - | - | - | - |
|
|
DCM3623T50M04A2T00DC DC CONVERTER 3.3V 120W |
32 |
|
Технический лист |
VI Chip® DCM® (120W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 16V | 50V | 3.3V | - | - | - | 36.4A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C (With Derating) | 89.2% | - | - | Through Hole | 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm) | - | - | - | - |
|
|
DCM3623T75H31C2T00DC DC CONVERTER 28V 320W |
218 |
|
Технический лист |
VI Chip® DCM® (320W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 11.43A | 320 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 92.4% | - | - | Through Hole | 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm) | - | - | - | - |
|
|
DCM3623T75H53C2T00DC DC CONVERTER 48V 320.2W |
83 |
|
Технический лист |
VI Chip® DCM® (320W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 75V | 48V | - | - | - | 6.67A | 320.2 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 92.5% | - | - | Through Hole | 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm) | - | - | - | - |
|
|
DCM3623T75H26C2T00DC DC CONVERTER 24V 320.2W |
264 |
|
Технический лист |
VI Chip® DCM® (320W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 13.34A | 320.2 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 91.8% | - | - | Through Hole | 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm) | - | - | - | - |
|
|
DCM3623T36G31C2T00DC DC CONVERTER 28V 320W |
71 |
|
Технический лист |
VI Chip® DCM® (320W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 11.43A | 320 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 93.8% | - | - | Through Hole | 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm) | - | - | - | - |
|
FS40-12DC DC CONVERTER 4000V 10W |
56 |
|
Технический лист |
XP EMCO - FS (10W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 4000V | - | - | - | 2.5mA | 10 W | 2.5 kV | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | 85% | - | - | Through Hole | 2.25" L x 1.12" W x 0.50" H (57.2mm x 28.5mm x 12.7mm) | - | - | - | - |
|
V24C24C100BLDC DC CONVERTER 24V 100W |
153 |
|
Технический лист |
MICRO (100W) | Quarter Brick | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 4.17A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 88% | - | - | Through Hole | 2.28" L x 1.45" W x 0.62" H (57.9mm x 36.8mm x 15.7mm) | - | - | - | - |
|
|
V24C48C100BLDC DC CONVERTER 48V 100W |
117 |
|
Технический лист |
MICRO (100W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 48V | - | - | - | 2.08A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 87.7% | - | - | Through Hole | 2.28" L x 1.45" W x 0.62" H (57.9mm x 36.8mm x 15.7mm) | - | - | - | - |
|
|
V24C28T100BLDC DC CONVERTER 28V 100W |
77 |
|
Технический лист |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 3.57A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 0.62" H (57.9mm x 36.8mm x 15.7mm) | - | - | - | - |
|
|
V24C48T100BLDC DC CONVERTER 48V 100W |
52 |
|
Технический лист |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 48V | - | - | - | 2.08A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 87.7% | - | - | Through Hole | 2.28" L x 1.45" W x 0.62" H (57.9mm x 36.8mm x 15.7mm) | - | - | - | - |
|
|
DCM24AP480T320A50DC DC CONVERTER 48V 320W |
288 |
|
Технический лист |
VI Chip® DCM® (320W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 48V | - | - | - | 6.67A | 320 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 92.5% | - | - | Through Hole | 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm) | - | - | - | - |
|
|
DCM24AP120T320A50DC DC CONVERTER 12V 320W |
722 |
|
Технический лист |
VI Chip® DCM® (320W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 26.67A | 320 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 93.1% | - | - | Through Hole | 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm) | - | - | - | - |
|
|
V24C12C50BLDC DC CONVERTER 12V 50W |
112 |
|
Технический лист |
MICRO (50W) | Quarter Brick | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 4.17A | 50 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 88.1% | - | - | Through Hole | 2.28" L x 1.45" W x 0.62" H (57.9mm x 36.8mm x 15.7mm) | - | - | - | - |
