DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

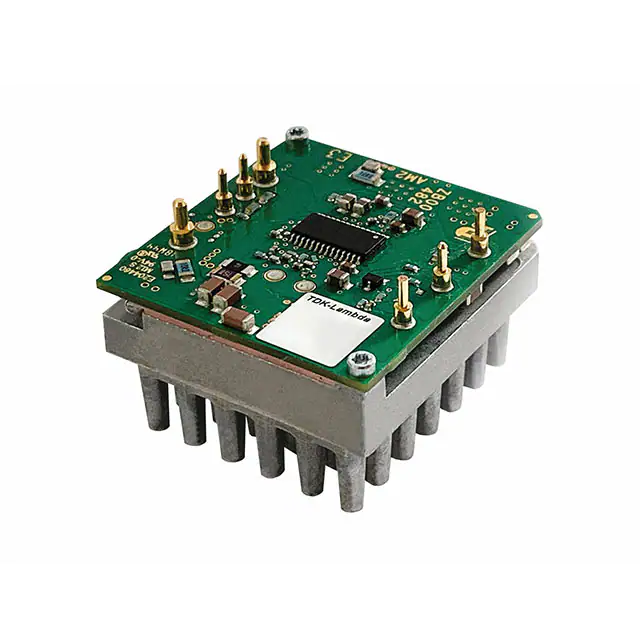

I7C4W008A120V-0F1-RDC DC CONVERTER 9.6-48V 300W |
1,185 |
|
Технический лист |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 9.6 ~ 48V | - | - | - | 8A | 300 W | - | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 125°C | 96% | - | - | Through Hole | 1.45" L x 1.34" W x 0.98" H (36.8mm x 34.0mm x 24.9mm) | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1; 60950-1 |
|

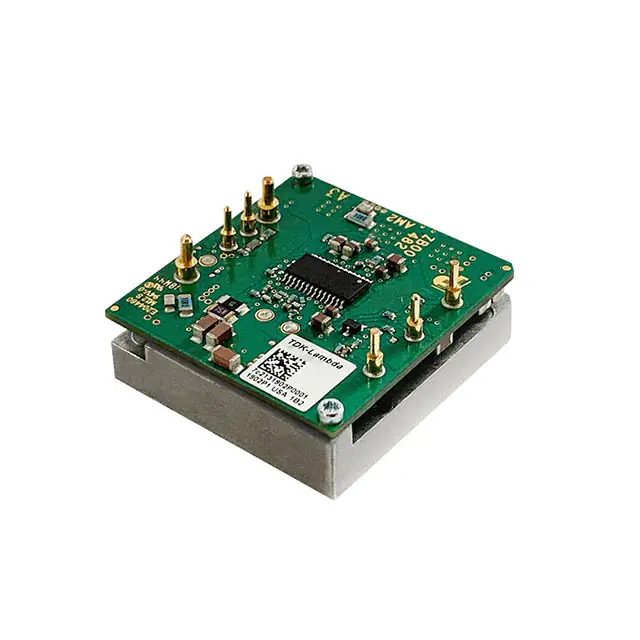

I7C4W012A050V-0C3-RDC-DC CONVERTER 5-28V 300W |
121 |
|
Технический лист |
I7c (300W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 5 ~ 28V | - | - | - | 12.5A | 350 W | - | ITE (Commercial) | Baseplate, Remote On/Off, Remote Sense | -40°C ~ 125°C | 96% | - | - | Through Hole | 1.45" L x 1.34" W x 0.51" H (36.8mm x 34.0mm x 13.0mm) | Sixteenth Brick | - | CE, CSA, UL | 60950-1; 62368-1 |
|

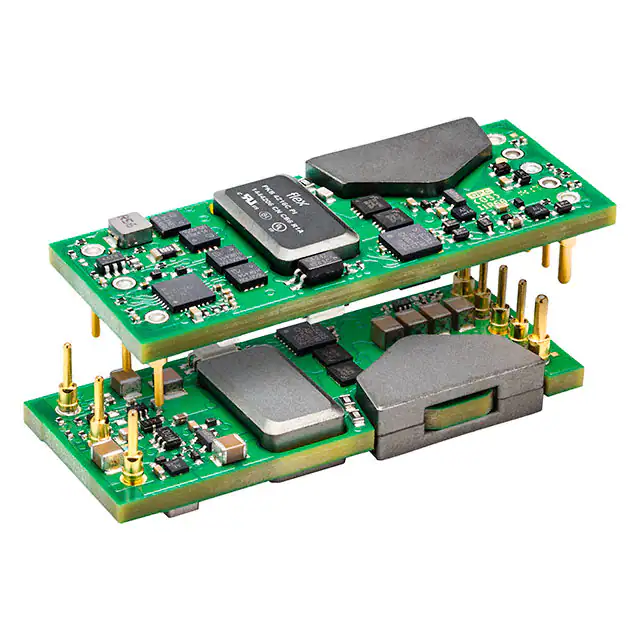

PKB4216CPIHSDC DC CONVERTER 30V 200W |
341 |
|
Технический лист |
PKB4216C (200W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 30V | - | - | - | 6.7A | 200 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 95.1% | - | - | Through Hole | 2.30" L x 0.89" W x 0.52" H (58.4mm x 22.7mm x 13.2mm) | Eighth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
PKU5511SPIDC DC CONVERTER 5V 50W |
417 |
|
Технический лист |
PKU 5500S (50W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 10A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 1.39" L x 0.98" W x 0.41" H (35.3mm x 25.0mm x 10.4mm) | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|

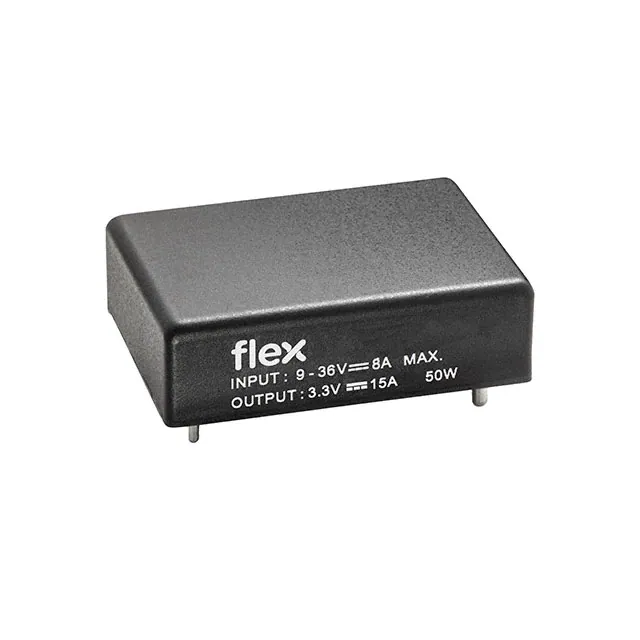

PKU3516ZSPIDC DC CONVERTER 24V 50W |
370 |
|
Технический лист |
PKU 3500S (50W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 2.1A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 91% | - | - | Through Hole | 1.39" L x 0.98" W x 0.41" H (35.3mm x 25.0mm x 10.4mm) | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
PKU5513SPIDC DC CONVERTER 12V 50W |
232 |
|
Технический лист |
PKU 5500S (50W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 4.2A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 1.39" L x 0.98" W x 0.41" H (35.3mm x 25.0mm x 10.4mm) | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
LTM4630EY-1B#PBFDC DC CNVRTR 0.6-1.8V 0.6-1.8V |
0 |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 15V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | - | - | 18A, 18A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.0mm) | 144-BGA (16x16) | - | - | - |
|
THM 10-2422WIDC DC CONVERTER +/-12V 10W |
69 |
|
Технический лист |
THM 10WI (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THN 30-2412WIR32 WATT DC/DC CONVERTER, RAILWAY |
57 |
|
Технический лист |
THN 30WIR (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 62368-1 |
|
LTM4670IY#PBFDC DC CONVERTER |
35 |
|
Технический лист |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

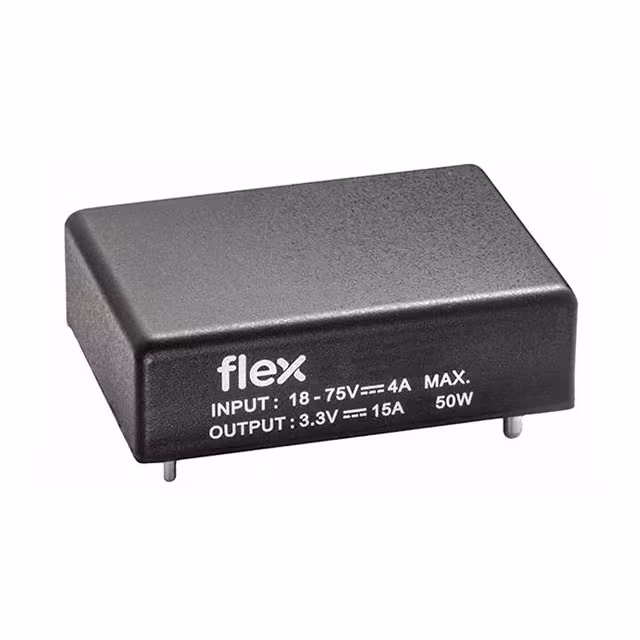

PKU5516ZSPIDC DC CONVERTER 24V 50W |
165 |
|
Технический лист |
PKU 5500S (50W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 2.1A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 91% | - | - | Through Hole | 1.39" L x 0.98" W x 0.41" H (35.3mm x 25.0mm x 10.4mm) | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
THP 3-2423DC DC CONVERTER +/-15V 3W |
81 |
|
Технический лист |
THP 3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 40V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm) | - | - | - | - |
|
PXB15-24WD15/NDC DC CONVERTER +/-15V 15W |
86 |
|
Технический лист |
PXB (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | - | - |
|
|
PXB15-24WD05/NDC DC CONVERTER +/-5V 15W |
57 |
|
Технический лист |
PXB (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | - | - |
|
THN 15-2411WIRDC DC CONVERTER 5V 15W |
193 |
|
Технический лист |
THN 15WIR (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
|
PKU3513SPIDC DC CONVERTER 12V 50W |
262 |
|
Технический лист |
PKU 3500S (50W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 4.2A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 1.39" L x 0.98" W x 0.41" H (35.3mm x 25.0mm x 10.4mm) | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
LTM4655MPY#PBFEN55022B CMPLINT 40V DUAL 4A SNG |
90 |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 3.1V | 40V | 0.5 ~ 26.5V | -0.5 ~ -26.5V | - | - | 4A, 4A | 212 W | - | ITE (Commercial) | Adjustable Output | -55°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.21" H (16.0mm x 16.0mm x 5.2mm) | 144-BGA (16x16) | - | - | - |
|
THM 15-2411WIDC DC CONVERTER 5V 15W |
86 |
|
Технический лист |
THM 15WI (15W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|
RPA60-2415SFW/PDC DC CONVERTER 15V 60W |
2,042 |
|
Технический лист |
POWERLINE RPA60-FW (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 4A | 60 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 93.3% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
RPA60-2412SFW/PDC DC CONVERTER 12V 60W |
1,173 |
|
Технический лист |
POWERLINE RPA60-FW (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 5A | 60 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 92.8% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
