DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

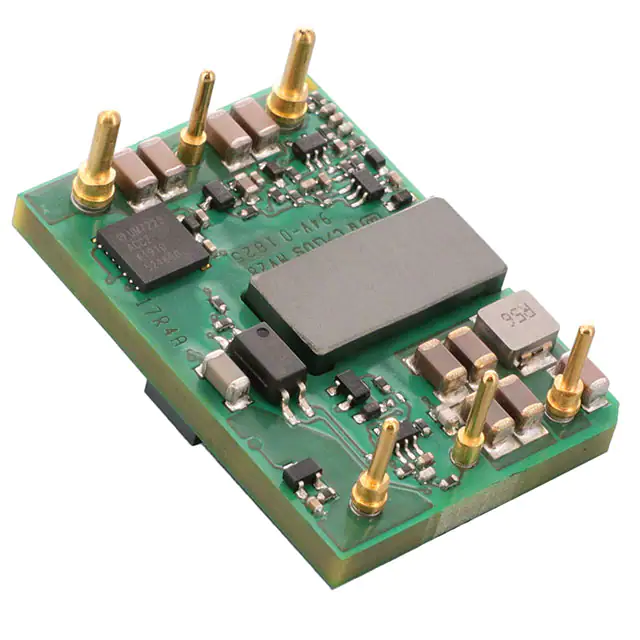

PKU4213DPIDC DC CONVERTER 12V 180W |
310 |
|
Технический лист |
PKU4213D (204W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 15A | 180 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 94.6% | - | - | Through Hole | 1.30" L x 0.90" W x 0.44" H (33.0mm x 22.9mm x 11.3mm) | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
LTM4609EV#PBFDC DC CONVERTER 0.8-34V |
1,511 |
|
Технический лист |
µModule® | 141-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 36V | 0.8 ~ 34V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OVP, UVLO | -40°C ~ 85°C | 98% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 141-LGA (15x15) | - | - | - |
|
LTM4642IYDC DC CNVRTR 0.6-5.5V 0.6-5.5V |
0 |
|
Технический лист |
µModule® | 56-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 20V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | - | - | 4A, 4A | - | - | ITE (Commercial) | OCP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.19" H (11.3mm x 9.0mm x 4.9mm) | 56-BGA (11.25x9) | - | - | - |
|
THD 15-2410WINDC DC CONVERTER 3.3V 13W |
84 |
|
Технический лист |
THD 15WIN (15W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 4A | 13 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
LTM4643IY#PBFDC DC CONVERTER 3X0.6-3.3V |
997 |
|
Технический лист |
µModule® | 77-BBGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 4V | 20V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | - | 3A, 3A, 3A, 3A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.07" H (15.0mm x 9.0mm x 1.8mm) | 77-BGA (15x9) | - | - | - |
|
EHHD010A0B41-HZDC DC CONVERTER 12V 120W |
3,264 |
|
Технический лист |
Hammerhead™ EHHD010A0B (120W) | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm) | - | Enable, Active Low | - | - |
|
EHHD024A0A41-HZDC DC CONVERTER 5V 120W |
45 |
|
Технический лист |
Hammerhead™ EHHD024A0A (120W) | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 24A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm) | - | Enable, Active Low | - | - |
|

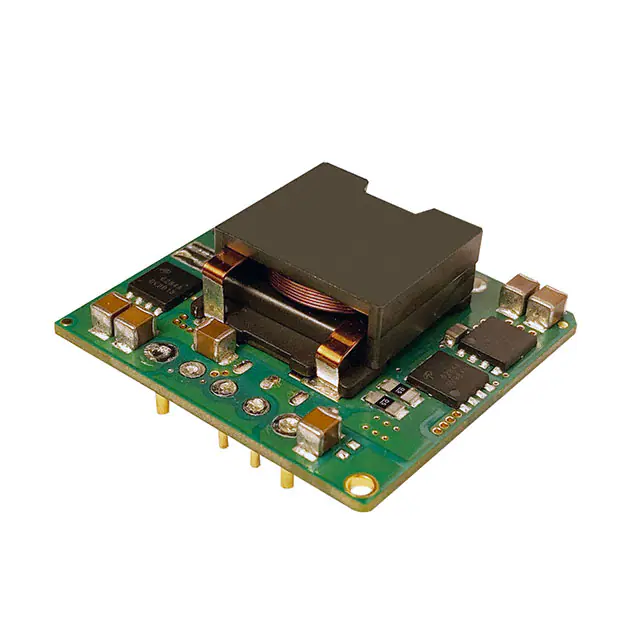

I7C4W008A120V-001-RDC DC CONVERTER 9.6-48V 300W |
1,078 |
|
Технический лист |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 9.6 ~ 48V | - | - | - | 8A | 300 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 96% | - | - | Through Hole | 1.45" L x 1.34" W x 0.48" H (36.8mm x 34.0mm x 12.2mm) | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1; 60950-1 |
|
|
I7C4W008A120V-003-RDC DC CONVERTER 9.6-48V 300W |
279 |
|
Технический лист |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 9.6 ~ 48V | - | - | - | 8A | 300 W | - | ITE (Commercial) | Adjustable Output, Imon, PGood, Remote On/Off, Sync | -40°C ~ 125°C | 96% | - | - | Through Hole | 1.45" L x 1.34" W x 0.48" H (36.8mm x 34.0mm x 12.2mm) | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1; 60950-1 |
|
LTM8046MPY#PBFDC DC CONVERTER 1.8-12V |
42 |
|
Технический лист |
µModule® | 51-BBGA Module | Tray | Active | Isolated Module | 1 | 3.1V | 31V | 1.8 ~ 12V | - | - | - | 550mA | - | 3 kV | ITE (Commercial) | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.44" W x 0.19" H (15.0mm x 11.3mm x 4.9mm) | 51-BGA (15x9) | - | - | - |
|
AEE03A18-LSDC DC CONVERTER 5V 15W |
236 |
|
Технический лист |
AEE (15W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 71°C | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm) | - | - | - | - |
|
|
AEE01C18-LSDC DC CONVERTER 15V 15W |
210 |
|
Технический лист |
AEE (15W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 71°C | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm) | - | - | - | - |
|
|
AEE04F36-LSDC DC CONVERTER 3.3V 15W |
143 |
|
Технический лист |
AEE (15W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 4A | 15 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 71°C | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm) | - | - | - | - |
|
JHM1024D05DC DC CONVERTER +/-5V 10W |
93 |
|
Технический лист |
JHM (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 1A, 1A | 10 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | - | - | - |
|
|
AEE01B18-LSDC DC CONVERTER 12V 15W |
64 |
|
Технический лист |
AEE (15W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 71°C | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm) | - | - | - | - |
|
EC1SC01DC DC CONVERTER 5V 20W |
572 |
|
Технический лист |
EC1SC (20W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -25°C ~ 100°C (With Derating) | 81% | - | - | Through Hole | 2.00" L x 1.60" W x 0.45" H (50.8mm x 40.6mm x 11.4mm) | - | Enable, Active High | cURus | 60950-1 |
|
|
EC1SC12DC DC CONVERTER 12V 20W |
166 |
|
Технический лист |
EC1SC (20W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -25°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | 2.00" L x 1.60" W x 0.45" H (50.8mm x 40.6mm x 11.4mm) | - | Enable, Active High | cURus | 60950-1 |
.jpg)
|
LTM4644EY-1#PBFDC DC CONVERTER 4X0.6-5.5V |
945 |
|
Технический лист |
µModule® | 77-BBGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 4V | 14V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | 4A, 4A, 4A, 4A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.20" H (15.0mm x 9.0mm x 5.0mm) | 77-BGA (15x9) | - | - | - |
|
EHHD036A0F41-HZDC DC CONVERTER 3.3V 120W |
458 |
|
Технический лист |
Hammerhead™ EHHD036A0F (120W) | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 36A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm) | - | Enable, Active Low | - | - |
|
JTM2024S12DC DC CONVERTER 12V 20W |
811 |
|
Технический лист |
JTM (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
