DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCD15-24D15DC DC CONVERTER +/-15V 15W |
0 |
|
Технический лист |
LCD15 (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | CB, CE, cURus | - |
|

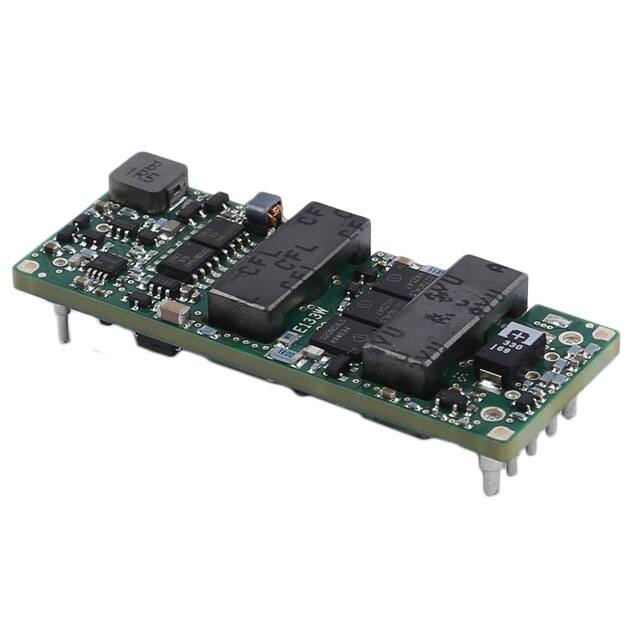

ERS4050N020N25DC DC CONVERTER 5V 100W |
0 |
|
Технический лист |
ERS (100W) | Eighth Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 100 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.30" L x 0.90" W x 0.37" H (58.4mm x 22.8mm x 9.4mm) | Eighth Brick | Enable, Active Low | CE, cURus | - |
|

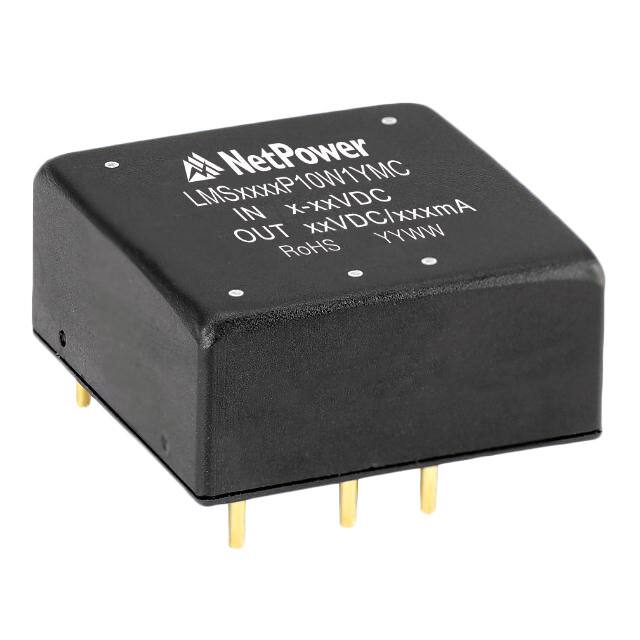

LMS1120P10W1YMCDC DC CONVERTER 12V 10W |
0 |
|
Технический лист |
LM (10W) | 6-DIP Module, 5 Leads | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 833mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | Enable, Active High | CE, cURus | - |
|
LMS1050P10W1YMCDC DC CONVERTER 5V 10W |
0 |
|
Технический лист |
LM (10W) | 6-DIP Module, 5 Leads | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | Enable, Active High | CE, cURus | - |
|
LMB1150P10W1YMCDC DC CONVERTER +/-15V 10W |
0 |
|
Технический лист |
LM (10W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | Enable, Active High | CE, cURus | - |
|
|
NCT1000N060H052DC DC CONVERTER 0.8-5.5V 300W |
0 |
|
Технический лист |
NCT | 13-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 8V | 16V | 0.8 ~ 5.5V | - | - | - | 60A | 300 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole, Right Angle | 2.00" L x 0.68" W x 0.44" H (50.8mm x 17.3mm x 11.1mm) | - | Enable, Active Low | cURus | - |
|
ERS4033N025N20DC DC CONVERTER 3.3V 83W |
0 |
|
Технический лист |
ERS (82.5W) | Eighth Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 25A | 83 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 90.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.37" H (58.4mm x 22.8mm x 9.4mm) | Eighth Brick | Enable, Active Low | CE, cURus | - |
|
ERS4480N003N26DC DC CONVERTER 48V 144W |
0 |
|
Технический лист |
ERS (144W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 48V | - | - | - | 3A | 144 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.8mm x 12.7mm) | Eighth Brick | Enable, Active Low | CE, cURus | - |
|
ERS3120N009K26WDC DC CONVERTER 12V 108W |
0 |
|
Технический лист |
ERS (108W) | Eighth Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 9A | 108 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.8mm x 12.7mm) | Eighth Brick | Enable, Active Low | CE, cURus | - |
|
LMS3050P10W3LPCDC DC CONVERTER 5V 10W |
0 |
|
Технический лист |
LM (10W) | 6-DIP Module, 5 Leads | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 2A | 10 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 2.03" L x 1.04" W x 0.47" H (51.5mm x 26.5mm x 12.0mm) | - | Enable, Active High | CE, cURus | - |
|

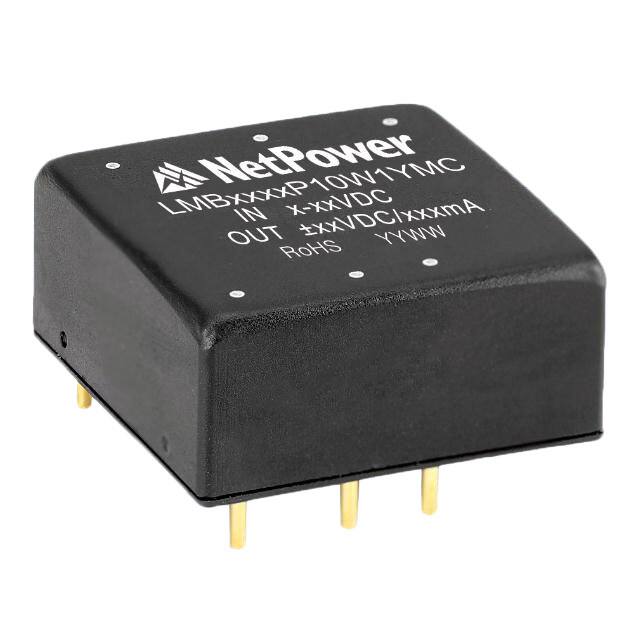

LMB1120P10W1YMCDC DC CONVERTER +/-12V 10W |
0 |
|
Технический лист |
LM (10W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | Enable, Active High | CE, cURus | - |
|
ERS4015N040R26DC DC CONVERTER 1.5V 60W |
0 |
|
Технический лист |
ERS (60W) | Eighth Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 1.5V | - | - | - | 40A | 60 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.8mm x 12.7mm) | Eighth Brick | Enable, Active Low | CE, cURus | - |
|
|
AM50QB-11024SA30JZ-BDC DC CONVERTER 24V 50W |
0 |
|
Технический лист |
AM50QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 2.08A | 50 W | 3 kV | Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | 50155 |
|
|
AM150HB-11015SA30JZ-BDC DC CONVERTER 15V 150W |
0 |
|
Технический лист |
AM150HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 10A | 150 W | 3 kV | Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.40" L x 2.28" W x 0.54" H (61.0mm x 57.9mm x 13.8mm) | Half Brick | - | - | 50155 |
|
|
AM50E-2405SVZDC DC CONVERTER 5V 50W |
0 |
|
Технический лист |
AM50E-VZ | - | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm) | - | - | - | 62368-1 |
|
|
CPT4L48NDC DC CONVERTER 18V 72W |
0 |
|
Технический лист |
CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 18V | - | - | - | 4A | 72 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm) | Sixteenth Brick | Enable, Active Low | CSA, TUV, UL | - |
|
|
CPT3L48NBDC DC CONVERTER 18V 54W |
0 |
|
Технический лист |
CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 18V | - | - | - | 3A | 54 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 92.5% | - | - | Through Hole | 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm) | Sixteenth Brick | Enable, Active Low | CSA, TUV, UL | - |
|
|
CPE14B48PBDC DC CONVERTER 12V 168W |
0 |
|
Технический лист |
CPE | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 14A | 168 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm) | Eighth Brick | Enable, Active High | CSA, TUV, UL | - |
|
|
CPT4L48NBDC DC CONVERTER 18V 72W |
0 |
|
Технический лист |
CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 18V | - | - | - | 4A | 72 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm) | Sixteenth Brick | Enable, Active Low | CSA, TUV, UL | - |
|
|
SVR05S2V5DC DC CONVERTER 2.5V |
0 |
|
Технический лист |
SVR05 (5W) | 10-SMD Module, 8 Leads | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 4.75V | 32V | 2.5V | - | - | - | 500mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 81% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) | - | Enable, Active High | - | - |
