DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPA02B-12DC DC CONVERTER 12V 2W |
0 |
|
Технический лист |
SPA02 (2W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
|
SPA02B-15DC DC CONVERTER 15V 2W |
0 |
|
Технический лист |
SPA02 (2W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
|
SPA02C-05DC DC CONVERTER 5V 2W |
0 |
|
Технический лист |
SPA02 (2W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
|
SPA02C-15DC DC CONVERTER 15V 2W |
0 |
|
Технический лист |
SPA02 (2W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 36V | 72V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
|
SPA02E-05DC DC CONVERTER 5V 2W |
0 |
|
Технический лист |
SPA02 (2W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 71% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
|
SPA02E-12DC DC CONVERTER 12V 1.8W |
0 |
|
Технический лист |
SPA02 (2W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 150mA | 1.8 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
|
SPA02E-15DC DC CONVERTER 15V 1.8W |
0 |
|
Технический лист |
SPA02 (2W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 120mA | 1.8 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
|
SPB03A-05DC DC CONVERTER 5V 3W |
0 |
|
Технический лист |
SPB03 (3W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
SPB03B-05DC DC CONVERTER 5V 3W |
0 |
|
Технический лист |
SPB03 (3W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
SPB03B-12DC DC CONVERTER 12V 3W |
0 |
|
Технический лист |
SPB03 (3W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
SPB03B-15DC DC CONVERTER 15V 3W |
0 |
|
Технический лист |
SPB03 (3W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
SPB03C-05DC DC CONVERTER 5V 3W |
0 |
|
Технический лист |
SPB03 (3W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
SPB03C-15DC DC CONVERTER 15V 3W |
0 |
|
Технический лист |
SPB03 (3W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 36V | 72V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
SPB03E-05DC DC CONVERTER 5V 3W |
0 |
|
Технический лист |
SPB03 (3W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|

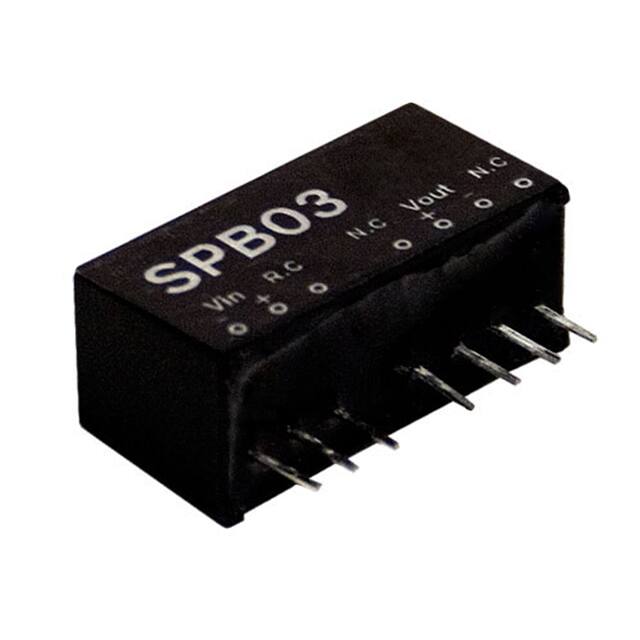

SPB03E-12DC DC CONVERTER 12V 3W |
0 |
|
Технический лист |
SPB03 (3W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
SPB03E-15DC DC CONVERTER 15V 3W |
0 |
|
Технический лист |
SPB03 (3W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
SPB05A-05DC DC CONVERTER 5V 5W |
0 |
|
Технический лист |
SPB05 (5W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1A | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 80°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
SPB05A-12DC DC CONVERTER 12V 5W |
0 |
|
Технический лист |
SPB05 (5W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 417mA | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 80°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
SPB05B-05DC DC CONVERTER 5V 5W |
0 |
|
Технический лист |
SPB05 (5W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 80°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
SPB05B-12DC DC CONVERTER 12V 5W |
0 |
|
Технический лист |
SPB05 (5W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 417mA | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 80°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
