DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MEJ1D2405SCDC DC CONVERTER +/-5V 1W |
0 |
|
Технический лист |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 76.5% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
|
MEJ1D2412SCDC DC CONVERTER +/-12V 1W |
0 |
|
Технический лист |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
|
DIM3R3400SFADC DC CONVERTER 36-75V 400W |
0 |
|
Технический лист |
Delphi DIM (400W) | 14-DIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 36 ~ 75V | - | - | - | 8.3A | 400 W | - | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 2.78" L x 1.45" W x 0.50" H (70.6mm x 36.8mm x 12.7mm) | - | - | - | - |
|
|
DIM3R3400SFBDC DC CONVERTER 36-75V 400W |
0 |
|
Технический лист |
Delphi DIM (400W) | 14-DIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 36 ~ 75V | - | - | - | 8.3A | 400 W | - | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 2.78" L x 1.45" W x 0.50" H (70.6mm x 36.8mm x 12.7mm) | - | - | - | - |
|
DNM04S0A0S10NFDDC DC CONVERTER 0.7525-3.63V 36W |
0 |
|
Технический лист |
Delphi DNM | 11-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.8V | 5.5V | 0.7525 ~ 3.63V | - | - | - | 10A | 36 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 125°C | 96% | - | - | Through Hole | 2.00" L x 0.33" W x 0.51" H (50.8mm x 8.4mm x 13.0mm) | - | Enable, Active Low | - | - |
|

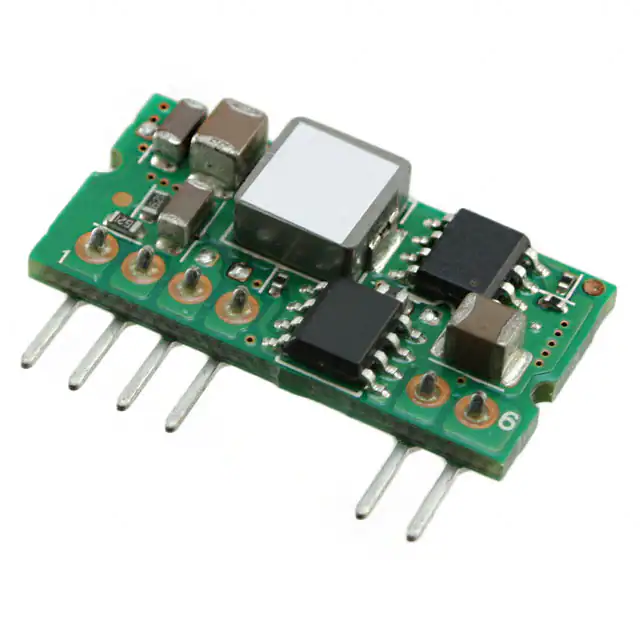

DNS04S0A0S06NFDDC DC CONVERTER 0.7525-3.63V 22W |
0 |
|
Технический лист |
Delphi DNS | 6-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.8V | 5.5V | 0.7525 ~ 3.63V | - | - | - | 6A | 22 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 125°C | 94% | - | - | Through Hole | 1.00" L x 0.26" W x 0.50" H (25.4mm x 6.6mm x 12.7mm) | - | Enable, Active Low | - | - |
|
|
E24SR05012NRFADC DC CONVERTER 5V 66W |
0 |
|
Технический лист |
Delphi E24SR (66W) | 8-DIP Module, 1/8 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 12A | 66 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | - | 90.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.39" H (58.4mm x 22.9mm x 9.8mm) | - | Enable, Active Low | - | - |
|
|
E24SR12005NRFADC DC CONVERTER 12V 66W |
0 |
|
- |
Delphi E24SR (66W) | 8-DIP Module, 1/8 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 5A | 66 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | - | 90.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.39" H (58.4mm x 22.9mm x 9.8mm) | - | Enable, Active Low | - | - |
|
|
E24SR3R320NN ADC DC CONVERTER 3.3V 66W |
0 |
|
- |
Delphi E24SR (66W) | 8-DIP Module, 1/8 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 20A | 66 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | - | 90% | - | - | Through Hole | 2.30" L x 0.90" W x 0.39" H (58.4mm x 22.9mm x 9.8mm) | - | Enable, Active Low | - | - |
|
|
H48SA53010NNFHDC DC CONVERTER 54V 550W |
0 |
|
- |
Delphi H48SA | 9-DIP Module, 1/2 Brick | Tray | Obsolete | Isolated Module | 1 | 38V | 60V | 54V | - | - | - | 10.2A | 550 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -5°C ~ 108°C | 94.2% | - | - | Through Hole | 2.40" L x 2.30" W x 0.43" H (61.0mm x 58.4mm x 10.9mm) | - | Enable, Active Low | - | - |
|
|
NC12S0A0H06PNFADC DC CONVERTER 0.9-5V 30W |
0 |
|
- |
Delphi NC06 | 9-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.2V | 13.8V | 0.9 ~ 5V | - | - | - | 6A | 30 W | - | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | 0°C ~ 125°C | 91% | - | - | Through Hole | 1.20" L x 0.61" W x 0.48" H (30.5mm x 15.5mm x 12.2mm) | - | Enable, Active High | - | - |
|
|
ND12S0A0V50PNFADC DC CONVERTER 0.9-3.63V 182W |
0 |
|
Технический лист |
Delphi ND | 24-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.2V | 13.8V | 0.9 ~ 3.63V | - | - | - | 50A | 182 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | 0°C ~ 70°C | 93% | - | - | Through Hole | 2.40" L x 0.38" W x 1.25" H (61.0mm x 9.7mm x 31.8mm) | - | Enable, Active High | - | - |
|
|
Q48SA52001NNFADC DC CONVERTER 52V 60W |
0 |
|
- |
Delphi Q48SA (60W) | 6-DIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 52V | - | - | - | 1.15A | 60 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 120°C | 91% | - | - | Through Hole | 2.28" L x 1.45" W x 0.39" H (57.9mm x 36.8mm x 9.9mm) | - | Enable, Active Low | - | - |
|
|
S36SE3R305PMFBDC DC CONVERTER 3.3V 17W |
0 |
|
- |
Delphi S36SE (17W) | 6-SMD Module | Tray | Obsolete | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 5A | 17 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 123°C | 86.5% | - | - | Surface Mount | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm) | - | Enable, Active High | - | - |
|
|
V48SR15004NRFADC DC CONVERTER 15V 66W |
0 |
|
- |
Delphi V48SR (66W) | 8-DIP Module, 1/16 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 4.4A | 66 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 121°C | 90.5% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.5mm) | - | Enable, Active Low | - | - |
|
|
V24C12C100BN3DC DC CONVERTER 12V 100W |
0 |
|
Технический лист |
MICRO (100W) | Quarter Brick | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 8.33A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 85.8% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | - | - | - |
|
V24C12E50BNDC DC CONVERTER 12V 50W |
0 |
|
Технический лист |
MICRO (50W) | Quarter Brick | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 4.17A | 50 W | 3 kV | ITE (Commercial) | OVP, UVLO | -10°C ~ 100°C | 88.1% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | - | - | - |
|
|
V24C24T150BSDC DC CONVERTER 24V 150W |
0 |
|
Технический лист |
MICRO (150W) | Quarter Brick | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 6.3A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 88.3% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | - | - | - |
|
|
V24C3V3T50BN2DC DC CONVERTER 3.3V 50W |
0 |
|
Технический лист |
MICRO (50W) | Quarter Brick | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 15.15A | 50 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 79.2% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | - | - | - |
|
|
V24C48C100BN2DC DC CONVERTER 48V 100W |
0 |
|
Технический лист |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 48V | - | - | - | 2.08A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 87.7% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | - | - | - |
