DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MYSSM0123ECENDC/DC CONVERTER 12V 3.5A |
0 |
|
- |
- | 8-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 17V | 40V | 5 ~ 12V | - | - | - | 3.5A | - | - | ITE (Commercial) | Remote On/Off, SCP | -10°C ~ 80°C | 97% | - | - | Surface Mount | 1.19" L x 0.82" W x 0.47" H (30.2mm x 20.9mm x 12.0mm) | - | - | - | - |
|
|
MYFSP3R303FMSDC/DC CONVERTER 3.3V 3A SMD |
0 |
|
- |
- | 10-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.7 ~ 3.3V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.43" L x 0.33" W x 0.22" H (11.0mm x 8.5mm x 5.6mm) | - | - | - | - |
|
|
MYGTC012R5BZNDC/DC CONVERTER 12V .5A SIP |
0 |
|
- |
- | 11-SIP Module, 10 Leads | Bulk | Obsolete | Non-Isolated PoL Module | 2 | 16V | 40V | 5V | 12V | - | - | 500mA, 500mA | - | - | ITE (Commercial) | Remote On/Off, SCP | -10°C ~ 80°C | 89% | - | - | Through Hole | 0.99" L x 0.47" W x 1.06" H (25.1mm x 12.0mm x 27.0mm) | - | - | - | - |
|
|
MYGTM01210BZNDC/DC CONVERTER 12V 10A SIP |
0 |
|
- |
- | 11-SIP Module, 10 Leads | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 17V | 40V | 5V, 12V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, SCP | -10°C ~ 80°C | 97.3% | - | - | Through Hole | 0.99" L x 0.47" W x 1.06" H (25.1mm x 12.0mm x 27.0mm) | - | - | - | - |
|
|
MYGTR01205BZNDC/DC CONVERTER 12V 5.2A SIP |
0 |
|
- |
- | 11-SIP Module, 10 Leads | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 17V | 40V | 5V, 8.5V, 12V | - | - | - | 5.2A, 4A, 3A | - | - | ITE (Commercial) | Remote On/Off, SCP | -10°C ~ 80°C | 93% | - | - | Through Hole | 0.99" L x 0.47" W x 1.06" H (25.1mm x 12.0mm x 27.0mm) | - | - | - | - |
|
|
MYSSM3R31ECENDC/DC CONVERTER 3.3V 1.5A SMD |
0 |
|
- |
- | 8-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 19.2V | 28.8V | 3.3V | - | - | - | 1.5A | - | - | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C | 88% | - | - | Surface Mount | 1.19" L x 0.82" W x 0.47" H (30.2mm x 20.9mm x 12.0mm) | - | - | - | - |
|
|
LMZ10500SH/NOPBDC DC CONVERTER 0.6-3.6V |
0 |
|
Технический лист |
SIMPLE SWITCHER® | 8-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 3.6V | - | - | - | 650mA | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | 95% | - | - | Surface Mount | 0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm) | - | Enable, Active High | - | - |
|
|
LMZ10501SHX/NOPBDC DC CONVERTER 0.6-3.6V |
0 |
|
Технический лист |
SIMPLE SWITCHER® | 8-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 3.6V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | 95% | - | - | Surface Mount | 0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm) | - | Enable, Active High | - | - |
|
|
LMZ10501SH/NOPBDC DC CONVERTER 0.6-3.6V |
0 |
|
Технический лист |
SIMPLE SWITCHER® | 8-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 3.6V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | 95% | - | - | Surface Mount | 0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm) | - | Enable, Active High | - | - |
|

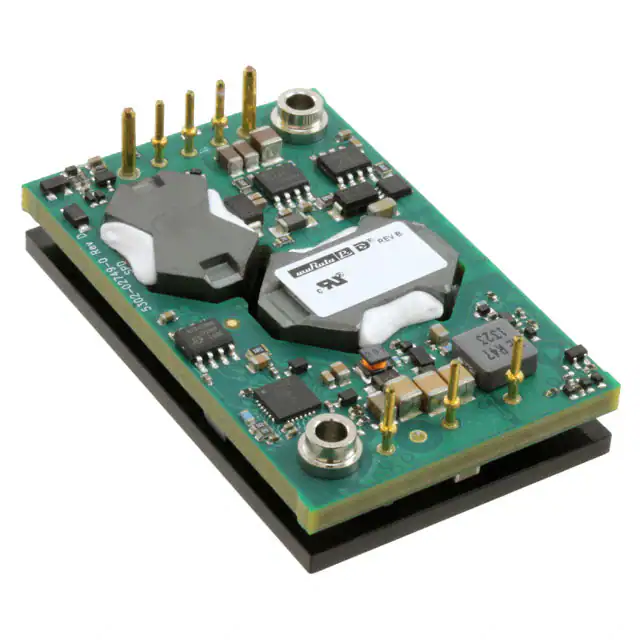

PAQ-29/5-D48NB-CDC DC CONVERTER 29.8V 150W |
0 |
|
Технический лист |
PAQ (150W) | 9-DIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 29.8V | - | - | - | 5A | 150 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C | 92.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.46" H (58.4mm x 36.8mm x 11.7mm) | - | Enable, Active Low | - | - |
|
|
NEB-264NWA-ANDC DC CONVERTER 12V 264W |
0 |
|
Технический лист |
Novum®, NEB-N | 5-DIP Module, 1/8 Brick | Box | Obsolete | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 22A | 264 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 95.2% | - | - | Through Hole | 2.30" L x 0.89" W x 0.40" H (58.4mm x 22.7mm x 10.2mm) | - | Enable, Active Low | - | - |
|
|
NQB-468DMA-ANHDC DC CONVERTER 12V 468W |
0 |
|
Технический лист |
Novum®, NQB-D | 15-DIP Module, 1/4 Brick | Box | Obsolete | Intermediate Bus Converter, Digital | 1 | 40V | 60V | 12V | - | - | - | 39A | 468 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 96.4% | - | - | Through Hole | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) | - | Enable, Active Low | - | - |
|
|
NQB-420DWA-ANDC DC CONVERTER 12V 420W |
0 |
|
Технический лист |
Novum®, NQB-D | 15-DIP Module, 1/4 Brick | Box | Obsolete | Intermediate Bus Converter, Digital | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 96.4% | - | - | Through Hole | 2.28" L x 1.45" W x 0.44" H (57.9mm x 36.8mm x 11.3mm) | - | Enable, Active Low | - | - |
|
|
NQB-420DWA-ANHDC DC CONVERTER 12V 420W |
0 |
|
Технический лист |
Novum®, NQB-D | 15-DIP Module, 1/4 Brick | Box | Obsolete | Intermediate Bus Converter, Digital | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 96.4% | - | - | Through Hole | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) | - | Enable, Active Low | - | - |
|
|
NQB-420DWA-DANHDC DC CONVERTER 12V 420W |
0 |
|
Технический лист |
Novum®, NQB-D | 15-DIP Module, 1/4 Brick | Box | Obsolete | Intermediate Bus Converter, Digital | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 96.4% | - | - | Through Hole | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) | - | Enable, Active Low | - | - |
|
|
NEB-264DWA-ANDC DC CONVERTER 12V 264W |
0 |
|
Технический лист |
Novum®, NEB-D | 15-DIP Module, 1/8 Brick | Box | Obsolete | Intermediate Bus Converter, Digital | 1 | 36V | 75V | 12V | - | - | - | 22A | 264 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 95.2% | - | - | Through Hole | 2.30" L x 0.89" W x 0.40" H (58.4mm x 22.7mm x 10.2mm) | - | Enable, Active Low | - | - |
|
|
NEB-264DWA-ANHDC DC CONVERTER 12V 264W |
0 |
|
Технический лист |
Novum®, NEB-D | 15-DIP Module, 1/8 Brick | Box | Obsolete | Intermediate Bus Converter, Digital | 1 | 36V | 75V | 12V | - | - | - | 22A | 264 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 95.2% | - | - | Through Hole | 2.30" L x 0.89" W x 0.52" H (58.4mm x 22.7mm x 13.2mm) | - | Enable, Active Low | - | - |
|
|
RBQ-12/33-D48PB-CDC DC CONVERTER 11.85V 391W |
0 |
|
Технический лист |
RBQ-12/33-D48 (400W) | 5-DIP Module, 1/4 Brick | Tray | Obsolete | Intermediate Bus Converter | 1 | 36V | 75V | 11.85V | - | - | - | 33A | 391 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 96% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.6mm) | - | Enable, Active High | - | - |
|
|
RBQ-12/33-D48NBH-CDC DC CONVERTER 11.85V 391W |
0 |
|
Технический лист |
RBQ-12/33-D48 (400W) | 5-DIP Module, 1/4 Brick | Tray | Obsolete | Intermediate Bus Converter | 1 | 36V | 75V | 11.85V | - | - | - | 33A | 391 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 96% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.6mm) | - | - | - | - |
|
|
RBQ-12/33-D48PBH-CDC DC CONVERTER 11.85V 391W |
0 |
|
Технический лист |
RBQ-12/33-D48 (400W) | 5-DIP Module, 1/4 Brick | Tray | Obsolete | Intermediate Bus Converter | 1 | 36V | 75V | 11.85V | - | - | - | 33A | 391 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 96% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.6mm) | - | Enable, Active High | - | - |
