DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MEV1D1505SCDC DC CONVERTER +/-5V 1W |
0 |
|
Технический лист |
MEV1 (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 13.5V | 16.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
MEV1D1512DCDC DC CONVERTER +/-12V 1W |
0 |
|
Технический лист |
MEV1 (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.0mm) | - | - | - | - |
|
|
MEV1D1512SCDC DC CONVERTER +/-12V 1W |
0 |
|
Технический лист |
MEV1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
MEV1D1515DCDC DC CONVERTER +/-15V 1W |
0 |
|
Технический лист |
MEV1 (1W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 90.5% | - | - | Through Hole | 0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.0mm) | - | - | - | - |
|
|
MEV1D2405DCDC DC CONVERTER +/-5V 1W |
0 |
|
Технический лист |
MEV1 (1W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.0mm) | - | - | - | - |
|
|
MEV1D2409DCDC DC CONVERTER +/-9V 1W |
0 |
|
Технический лист |
MEV1 (1W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.0mm) | - | - | - | - |
|

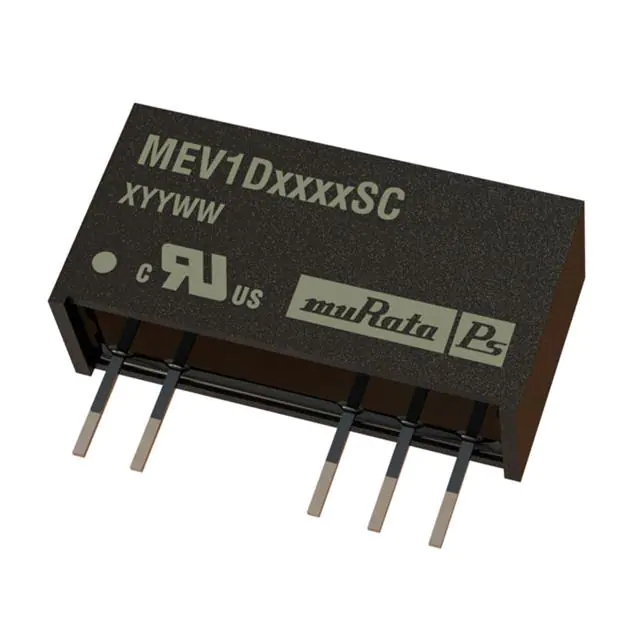

MEV1D4815SCDC DC CONVERTER +/-15V 1W |
0 |
|
Технический лист |
MEV1 (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 43.2V | 52.8V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
|
VYC30W-Q24-S15DC DC CONVERTER 15V 30W |
0 |
|
Технический лист |
VYC30W (30W) | 7-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.00" L x 1.60" W x 0.44" H (50.8mm x 40.6mm x 11.2mm) | - | Enable, Active High | - | - |
|
|
VYC30W-Q24-D15DC DC CONVERTER 15V 15V 30W |
0 |
|
Технический лист |
VYC30W (30W) | 7-DIP Module | Tube | Obsolete | Isolated Module | 2 | 9V | 36V | 15V | 15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.00" L x 1.60" W x 0.44" H (50.8mm x 40.6mm x 11.2mm) | - | Enable, Active High | - | - |
|
|
VYC30W-Q24-T512DC DC CONVERTER 5V +/-12V 30W |
0 |
|
Технический лист |
VYC30W (30W) | 7-DIP Module | Tube | Obsolete | Isolated Module | 3 | 9V | 36V | 5V | 12V | -12V | - | 3A, 625mA, 625mA | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 1.60" W x 0.44" H (50.8mm x 40.6mm x 11.2mm) | - | Enable, Active High | - | - |
|
|
VYC30W-Q24-T515DC DC CONVERTER 5V +/-15V 30W |
0 |
|
Технический лист |
VYC30W (30W) | 7-DIP Module | Tube | Obsolete | Isolated Module | 3 | 9V | 36V | 5V | 15V | -15V | - | 3A, 500mA, 500mA | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 1.60" W x 0.44" H (50.8mm x 40.6mm x 11.2mm) | - | Enable, Active High | - | - |
|
|
VYC30W-Q48-S5DC DC CONVERTER 5V 30W |
0 |
|
Технический лист |
VYC30W (30W) | 7-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.00" L x 1.60" W x 0.44" H (50.8mm x 40.6mm x 11.2mm) | - | Enable, Active High | - | - |
|
|
VYC30W-Q48-D12DC DC CONVERTER +/-12V 30W |
0 |
|
Технический лист |
VYC30W (30W) | 7-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 1.60" W x 0.44" H (50.8mm x 40.6mm x 11.2mm) | - | Enable, Active High | - | - |
|
|
VYC30W-Q48-D15DC DC CONVERTER +/-15V 30W |
0 |
|
Технический лист |
VYC30W (30W) | 7-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.00" L x 1.60" W x 0.44" H (50.8mm x 40.6mm x 11.2mm) | - | Enable, Active High | - | - |
|
|
VYC30W-Q48-T512DC DC CONVERTER 5V +/-12V 30W |
0 |
|
Технический лист |
VYC30W (30W) | 7-DIP Module | Tube | Obsolete | Isolated Module | 3 | 18V | 75V | 5V | 12V | -12V | - | 3A, 625mA, 625mA | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 1.60" W x 0.44" H (50.8mm x 40.6mm x 11.2mm) | - | Enable, Active High | - | - |
|
|
VYC30W-Q48-T515DC DC CONVERTER 5V +/-15V 30W |
0 |
|
Технический лист |
VYC30W (30W) | 7-DIP Module | Tube | Obsolete | Isolated Module | 3 | 18V | 75V | 5V | 15V | -15V | - | 3A, 500mA, 500mA | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 1.60" W x 0.44" H (50.8mm x 40.6mm x 11.2mm) | - | Enable, Active High | - | - |
|
|
ZL9117MIRZDC DC CONVERTER 0.6-3.6V |
0 |
|
Технический лист |
ZL9117M | 21-PowerBQFN Module | Tray | Obsolete | Non-Isolated PoL Module, Digital | 1 | 4.5V | 13.2V | 0.6 ~ 3.6V | - | - | - | 17A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 85°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.14" H (15.0mm x 15.0mm x 3.5mm) | 21-QFN (15x15) | - | - | - |
|
|
B048F096T24DC DC CONVERTER 9.6V 240W |
0 |
|
Технический лист |
VI Chip® BCM® (240W) | Module | Tray | Obsolete | Bus Converter Module | 1 | 38V | 55V | 9.6V | - | - | - | 25A | 240 W | 2.25 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 125°C | 96.2% | - | - | Surface Mount | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
|
|
B048F240T30DC DC CONVERTER 24V 300W |
0 |
|
Технический лист |
VI Chip® BCM® (300W) | Module | Tray | Obsolete | Bus Converter Module | 1 | 38V | 53V | 24V | - | - | - | 12.5A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 125°C | 95.8% | - | - | Surface Mount | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
|
|
B048F480T30DC DC CONVERTER 48V 300W |
0 |
|
Технический лист |
VI Chip® BCM® (300W) | Module | Tray | Obsolete | Bus Converter Module | 1 | 38V | 55V | 48V | - | - | - | 6.3A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 125°C | 96.4% | - | - | Surface Mount | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
