DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NME2409SCDC DC CONVERTER 9V 1W |
0 |
|
Технический лист |
NME (1W) | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.4mm x 6.1mm x 9.9mm) | - | - | - | - |
.jpg)
|
NMF1212SCDC DC CONVERTER 12V 1W |
0 |
|
Технический лист |
NMF (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 11.4V | 12.6V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 62% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
NMH0524DCDC DC CONVERTER +/-24V 2W |
0 |
|
Технический лист |
NMH (2W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm) | - | - | - | - |
|

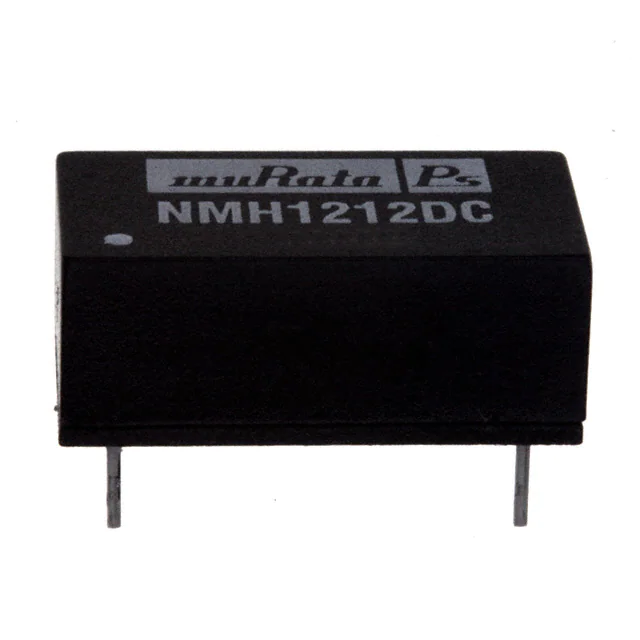

NMH1212DCDC DC CONVERTER +/-12V 2W |
0 |
|
Технический лист |
NMH (2W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm) | - | - | - | - |
|
|
NMH2405DCDC DC CONVERTER +/-5V 2W |
0 |
|
Технический лист |
NMH (2W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm) | - | - | - | - |
|
|
NMPD0103CDC DC CONVERTER 3.4V 10W |
0 |
|
Технический лист |
NMPD01 (10W) | 12-SIP Module | Tube | Obsolete | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 3.4V | - | - | - | 3A | 10 W | 1.5 kV | ITE (Commercial) | OTP, SCP | 0°C ~ 70°C | 74% | - | - | Through Hole | 3.62" L x 0.57" W x 1.06" H (91.9mm x 14.5mm x 26.9mm) | - | - | - | - |
|
|
NMPD0105CDC DC CONVERTER 5.1V 10W |
0 |
|
Технический лист |
NMPD01 (10W) | 12-SIP Module | Tube | Obsolete | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 5.1V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | OTP, SCP | 0°C ~ 70°C | 77% | - | - | Through Hole | 3.62" L x 0.57" W x 1.06" H (91.9mm x 14.5mm x 26.9mm) | - | - | - | - |
|
|
NMPD0115CDC DC CONVERTER 15.1V 10W |
0 |
|
Технический лист |
NMPD01 (10W) | 12-SIP Module | Tube | Obsolete | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 15.1V | - | - | - | 670mA | 10 W | 1.5 kV | ITE (Commercial) | OTP, SCP | 0°C ~ 70°C | 79% | - | - | Through Hole | 3.62" L x 0.57" W x 1.06" H (91.9mm x 14.5mm x 26.9mm) | - | - | - | - |
|
NMS1215CDC DC CONVERTER +/-15V 2W |
0 |
|
Технический лист |
NMS (2W) | 24-DIP Module (600 mil, 14 Leads) | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 6 kV | ITE (Commercial) | - | 0°C ~ 70°C | 82% | - | - | Through Hole | 1.28" L x 0.58" W x 0.37" H (32.5mm x 14.7mm x 9.4mm) | - | - | - | - |
|
NMV0509SCDC DC CONVERTER +/-9V 1W |
0 |
|
Технический лист |
NMV (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 55mA, 55mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
NMV1209SACDC DC CONVERTER 9V 1W |
0 |
|
Технический лист |
NMV (1W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
NMV1209SCDC DC CONVERTER +/-9V 1W |
0 |
|
Технический лист |
NMV (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 55mA, 55mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
NMV1505SACDC DC CONVERTER 5V 1W |
0 |
|
Технический лист |
NMV (1W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 67% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
NMV1505SCDC DC CONVERTER +/-5V 1W |
0 |
|
Технический лист |
NMV (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
NMV1512SACDC DC CONVERTER 12V 1W |
0 |
|
Технический лист |
NMV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
NMV1512SCDC DC CONVERTER +/-12V 1W |
0 |
|
Технический лист |
NMV (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
NMV2412SCDC DC CONVERTER +/-12V 1W |
0 |
|
Технический лист |
NMV (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | 0°C ~ 70°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
NMXD0515UCDC DC CONVERTER +/-15V 5W |
0 |
|
Технический лист |
NMXU (5W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 167mA, 167mA | 5 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.99" L x 0.93" W x 0.39" H (25.1mm x 23.6mm x 9.9mm) | - | - | - | - |
|
|
NMXD1215SOCDC DC CONVERTER +/-15V 5W |
0 |
|
Технический лист |
NMXSO (5W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 200mA, 200mA | 5 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 65% | - | - | Through Hole | 1.59" L x 0.93" W x 0.39" H (40.4mm x 23.6mm x 9.9mm) | - | - | - | - |
|
|
NMXD1215UCDC DC CONVERTER +/-15V 5W |
0 |
|
Технический лист |
NMXU (5W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 167mA, 167mA | 5 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.99" L x 0.93" W x 0.39" H (25.1mm x 23.6mm x 9.9mm) | - | - | - | - |
