DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC15-2403SF-EDC DC CONVERTER 3.3V 14W |
0 |
|
Технический лист |
CC-E (15W) | 17-DIP Module | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 4.5A | 14 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.50" L x 1.26" W x 0.28" H (38.1mm x 32.1mm x 7.0mm) | - | Enable, Active High | - | - |
|
|
CC15-2405SF-EDC DC CONVERTER 5V 15W |
0 |
|
Технический лист |
CC-E (15W) | 17-DIP Module | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.50" L x 1.26" W x 0.28" H (38.1mm x 32.1mm x 7.0mm) | - | Enable, Active High | - | - |
|
|
CC25-2403SF-EDC DC CONVERTER 3.3V 25W |
0 |
|
Технический лист |
CC-E (25W) | 30-DIP Module, 25 Leads | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 7.5A | 25 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.77" L x 1.70" W x 0.28" H (44.9mm x 43.2mm x 7.0mm) | - | Enable, Active High | - | - |
|
|
CC25-2405SF-EDC DC CONVERTER 5V 25W |
0 |
|
Технический лист |
CC-E (25W) | 30-DIP Module, 25 Leads | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 5A | 25 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.77" L x 1.70" W x 0.28" H (44.9mm x 43.2mm x 7.0mm) | - | Enable, Active High | - | - |
|
|
EHD-RD3324YDC DC CONVERTER 12V 2W |
0 |
|
Технический лист |
EHD-RD | 10-SIP Module, 5 Leads | Tray | Obsolete | Non-Isolated PoL Module | 1 | 113V | 190V | 12V | - | - | - | 200mA | 2 W | - | ITE (Commercial) | - | -20°C ~ 80°C | 75% | - | - | Through Hole | 1.11" L x 0.24" W x 0.70" H (28.2mm x 6.0mm x 17.9mm) | - | - | - | - |
|
|
EHD-RD3356DC DC CONVERTER 20V 1W |
0 |
|
Технический лист |
EHD-RD | 10-SIP Module, 5 Leads | Tray | Obsolete | Non-Isolated PoL Module | 1 | 113V | 170V | 20V | - | - | - | 80mA | 1 W | - | ITE (Commercial) | - | -20°C ~ 70°C | 76% | - | - | Through Hole | 1.20" L x 0.39" W x 0.74" H (30.5mm x 10.0mm x 18.9mm) | - | - | - | - |
|
|
EHD-RD3362BDC DC CONVERTER 24.6V 5W |
0 |
|
Технический лист |
EHD-RD | 10-SIP Module, 5 Leads | Tray | Obsolete | Non-Isolated PoL Module | 1 | 113V | 170V | 24.6V | - | - | - | 200mA | 5 W | - | ITE (Commercial) | - | -20°C ~ 85°C | 84% | - | - | Through Hole | 1.11" L x 0.24" W x 0.70" H (28.2mm x 6.0mm x 17.9mm) | - | - | - | - |
|
|
EHD-RD3376DC DC CONVERTER -12V 3W |
0 |
|
Технический лист |
EHD-RD | 10-SIP Module, 5 Leads | Tray | Obsolete | Non-Isolated PoL Module | 1 | -113V | -170V | -12V | - | - | - | 250mA | 3 W | - | ITE (Commercial) | - | - | - | - | - | Through Hole | - | - | - | - | - |
|
|
EHD-RD3357DC DC CONVERTER 20V 4W |
0 |
|
Технический лист |
EHD-RD | 10-SIP Module, 5 Leads | Tray | Obsolete | Non-Isolated PoL Module | 1 | 113V | 195V | 20V | - | - | - | 200mA | 4 W | - | ITE (Commercial) | - | -20°C ~ 70°C | 82% | - | - | Through Hole | 1.11" L x 0.24" W x 0.70" H (28.2mm x 6.0mm x 17.9mm) | - | - | - | - |
|
|
AEO25K48N-LDC DC CONVERTER 1.2V 66W |
0 |
|
Технический лист |
AEO40 (66W) | 8-DIP Module, 1/8 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 1.2V | - | - | - | 25A | 66 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 100°C | 85.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.40" H (58.4mm x 22.9mm x 10.2mm) | - | - | - | - |
|
|
BP5232A33DC DC CONVERTER 3.3V 2A |
0 |
|
Технический лист |
- | 10-SIP Module, 9 Leads | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 2A | - | - | ITE (Commercial) | Remote On/Off, SCP | -20°C ~ 55°C | 93% | - | - | Through Hole | 1.10" L x 0.47" W x 0.77" H (28.0mm x 12.0mm x 19.5mm) | - | - | - | - |
|
|
BP5232A25DC DC CONVERTER 2.5V 2A |
0 |
|
Технический лист |
- | 10-SIP Module, 9 Leads | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 2.5V | - | - | - | 2A | - | - | ITE (Commercial) | Remote On/Off, SCP | -20°C ~ 55°C | 93% | - | - | Through Hole | 1.10" L x 0.47" W x 0.77" H (28.0mm x 12.0mm x 19.5mm) | - | - | - | - |
|
|
SIL15C-12SADJ-VJDC DC CONVERTER 0.9-5V 75W |
0 |
|
- |
SIL15C (75W) | 11-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.2V | 13.8V | 0.9 ~ 5V | - | - | - | 15A | 75 W | - | ITE (Commercial) | Remote On/Off, OCP, SCP | 0°C ~ 80°C | 91% | - | - | Through Hole | 1.20" L x 0.40" W x 1.10" H (30.5mm x 10.2mm x 27.9mm) | - | - | - | - |
|
|
SIL20C-05SADJ-VJDC DC CONVERTER 0.9-3.3V 66W |
0 |
|
Технический лист |
SIL20C (100W) | 11-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.9 ~ 3.3V | - | - | - | 20A | 66 W | - | ITE (Commercial) | Remote On/Off, OCP, SCP | 0°C ~ 80°C | 87% | - | - | Through Hole | 1.20" L x 0.45" W x 1.10" H (30.5mm x 11.4mm x 27.9mm) | - | - | - | - |
|
|
SIL20C-12SADJ-VJDC DC CONVERTER 0.9-5V 100W |
0 |
|
Технический лист |
SIL20C (100W) | 11-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.2V | 13.8V | 0.9 ~ 5V | - | - | - | 20A | 100 W | - | ITE (Commercial) | Remote On/Off, OCP, SCP | 0°C ~ 80°C | 91% | - | - | Through Hole | 1.20" L x 0.45" W x 1.10" H (30.5mm x 11.4mm x 27.9mm) | - | - | - | - |
|
|
SIL40C-12SADJ-VJDC DC CONVERTER 0.9-5V 200W |
0 |
|
- |
SIL40C (200W) | 24-SIP Module, 23 Leads | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.2V | 13.8V | 0.9 ~ 5V | - | - | - | 40A | 200 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | 0°C ~ 80°C | 92% | - | - | Through Hole | 2.40" L x 0.52" W x 1.25" H (61.0mm x 13.2mm x 31.8mm) | - | - | - | - |
|
|
CXA10-48S05JDC DC CONVERTER 5V 10W |
0 |
|
Технический лист |
CXA10 (10W) | 6-DIP Module | Tray | Obsolete | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 70°C | 81% | - | - | Through Hole | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 10.0mm) | - | - | - | - |
|

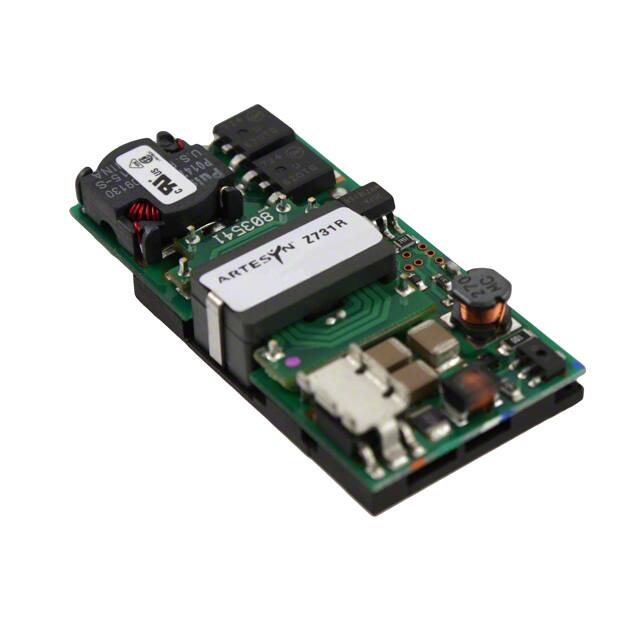

CXA10-48S12JDC DC CONVERTER 12V 10W |
0 |
|
Технический лист |
CXA10 (10W) | 6-DIP Module | Tray | Obsolete | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 830mA | 10 W | 1.5 kV | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 70°C | 83% | - | - | Through Hole | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 10.0mm) | - | - | - | - |
|
|
SMT15F-12S1V2JDC DC CONVERTER 1.2V 15W |
0 |
|
Технический лист |
SMT15F (15W) | 6-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2V | - | - | - | 15A | 15 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C | 86% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.30" H (33.0mm x 13.5mm x 7.6mm) | - | - | - | - |
|
|
VASD1-S5-D5-SIPDC DC CONVERTER +/-5V 1W |
0 |
|
Технический лист |
VASD1-SIP (1W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.77" L x 0.24" W x 0.38" H (19.5mm x 6.0mm x 9.7mm) | - | - | - | - |
